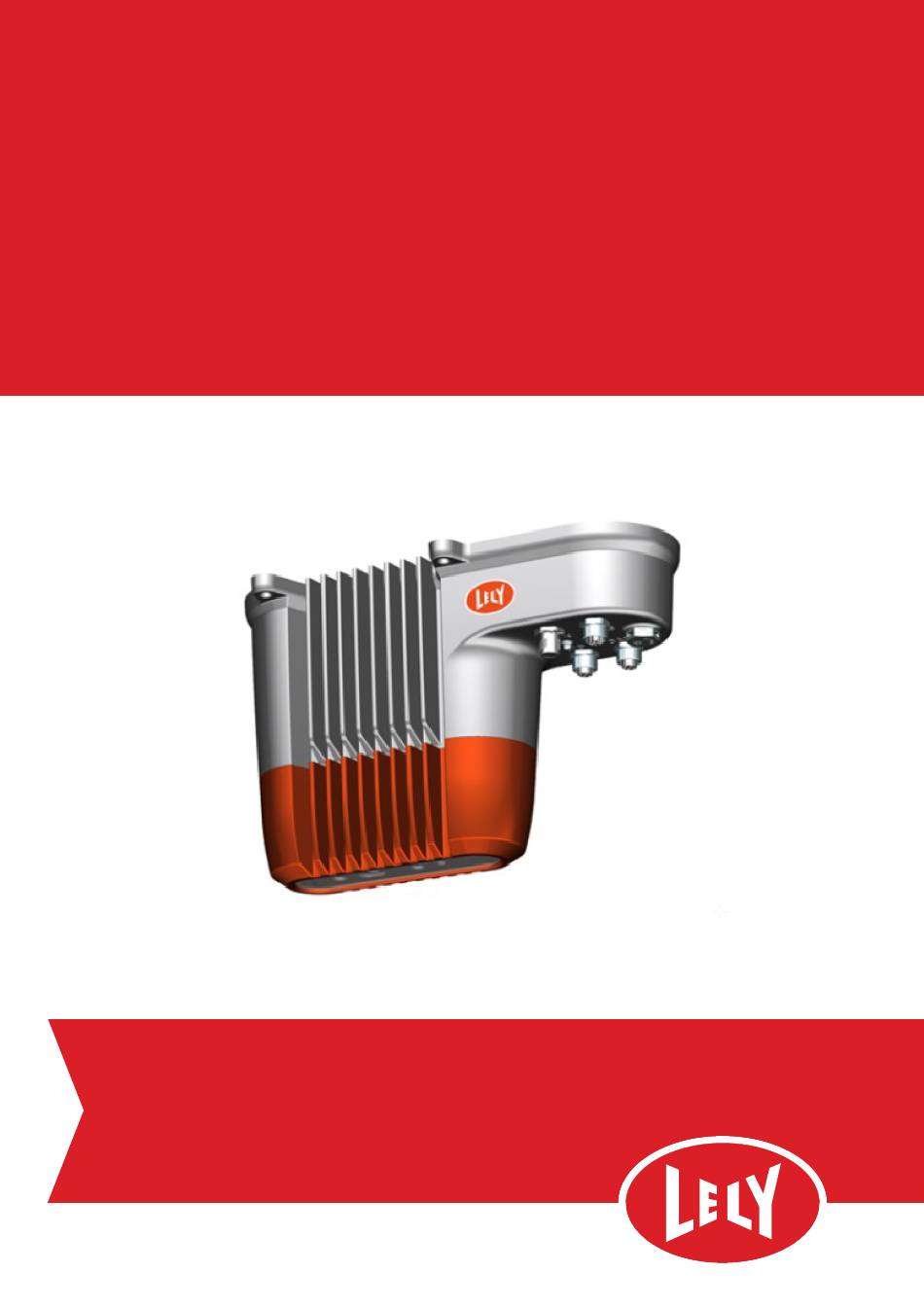

- Page 1 Lely Calm View Installation & Operator manual EN - English Original 5.1701.8500.0 - Lely Industries N.V. www.lely.com...
- Page 2 in n o vato rs in ag ric u ltu re INTENTIONALLY BLANK...
- Page 3 No part of this publication may be copied or published by means of printing, photocopying, microfilm or any other process whatsoever without prior permission in writing by Lely Holding B.V. Although the contents of this publication have been compiled with the greatest possible care, Lely cannot accept liability for any damage that might arise from errors or omissions in this publication.
- Page 4 in n o vato rs in ag ric u ltu re INTENTIONALLY BLANK Trademarks, Copyright and Disclaimer...
- Page 5 in n o vato rs in ag ric u ltu re List of Included Amendments Issue Date Revision Chapter(s) Remarks (yy/mm) 2021/07 New release List of Included Amendments...
- Page 6 in n o vato rs in ag ric u ltu re INTENTIONALLY BLANK List of Included Amendments...
- Page 7 Store this manual in a safe place for future reference. All information in this manual has been compiled with care. Lely shall not be liable for errors or faults in this manual. The recommendations are meant to serve as guidelines. All instructions, pictures and specifications in this manual are based on the latest information that was available at the time of publication.

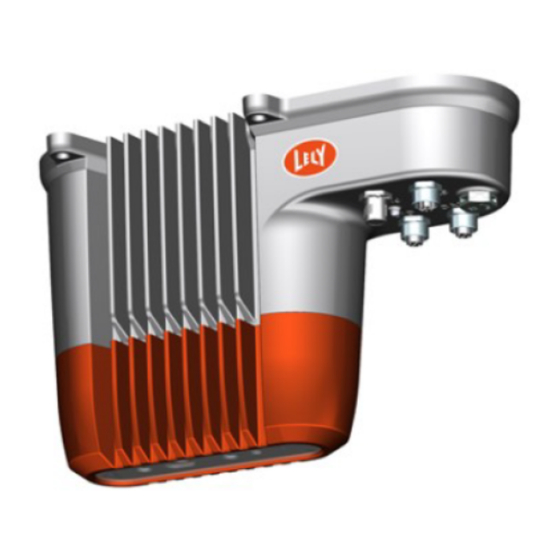

- Page 8 KEY: 1. Camera house - 2. Type and serial number plate - 3. Cover lid Always include the type and serial number of your Lely Calm View when you contact your local Lely service provider or order spare parts.
- Page 9 We suggest you complete the table below with the type and serial numbers of your Lely Calm View. This makes sure you can easily find the information. Type number...
- Page 10 in n o vato rs in ag ric u ltu re Contact Number Local Service Provider We suggest you write the telephone number and email address of your local service provider contact in the table below. This makes sure you can easily find the information. Telephone number email address Preface...
-
Page 11: Table Of Contents
6.2.2 Preparation by the Lely Service Provider ..........6-3 Install the Lely View . - Page 12 in n o vato rs in ag ric u ltu re INTENTIONALLY BLANK Table of Contents...
-
Page 13: Introduction
The Young stock monitoring camera system is an automated in line vision and image creation, processing, management, viewing and data analysis. The information in this manual is for the installation and operators. The operator uses the information to program and operate the Lely Calm View. The operator also uses the information to do maintenance. Introduction... - Page 14 in n o vato rs in ag ric u ltu re INTENTIONALLY BLANK Introduction...
-
Page 15: Intended Use
Intended Use The Lely Calm View is intended as an aid to the farming industry in the display, detection, counting and classification of young stocks – young calves and heifers. The system is intended to operate in barn conditions at a height between 1.8 m (5.9 ft) to 3.5 m (11.48 ft) above ground. - Page 16 in n o vato rs in ag ric u ltu re INTENTIONALLY BLANK Intended Use...
-
Page 17: Safety
in n o vato rs in ag ric u ltu re Safety Signal Icons Note the use of the signal words DANGER, WARNING and CAUTION with the safety messages. The signal word for each message uses the following guidelines: Danger Indicates a hazardous situation which, if not avoided, will result in death or serious injury. -
Page 18: General Safety
Lely resigns all responsibility that might occur from abuse or incorrect use of the products. Always • follow the instructions in this manual. Read and understand this manual and all safety signs before you install parts of the Lely Calm View. • Only trained persons are permitted to operate the Lely Calm View. -
Page 19: Installation Safety
Installation Safety Always use a proper scaffold or a double sided ladder when you install the Lely Calm View or do • maintenance on the Lely Calm View. Always block the cow traffic when you install the Lely Calm View or do maintenance on the Lely Calm •... - Page 20 in n o vato rs in ag ric u ltu re INTENTIONALLY BLANK Safety...
-
Page 21: Specifications
in n o vato rs in ag ric u ltu re Specifications Storage & Operational Environmental Specifications Minimum Nominal Maximum Parameter / Description Ambient temperature 0˚C / 32˚ F 35˚C / 95˚ F 100% Humidity Altitude 2000 mtr / 1.242 mi Power Specifications Parameter / Description Value... - Page 22 in n o vato rs in ag ric u ltu re INTENTIONALLY BLANK Specifications...
-
Page 23: Description And Operation
in n o vato rs in ag ric u ltu re Description and Operation Component description The Camera has the following components: Camera house • Cover lid • 24V external power • Power over Ethernet • Breather • CAN device •... -
Page 24: Operation
Figure 2. Lely Calm View components KEY: 1. Camera house - 2. CE label - 3. Cover lid - 4. Led indicator - 5. Digital input/output connector - 6. Can connector - 7. -
Page 25: Installation
Preparation by the Owner Before the actual installation can start, a number of tasks should be done by the owner of the Lely Calm View with support from the Lely service provider. These tasks are most of the construction tasks for the farm and the purchase of equipment necessary to use the Lely Calm View: A decent internet speed is required to run the applications on the Lely View. - Page 26 in n o vato rs in ag ric u ltu re Table 1. Phoenix connectors, their counter connectors and the connection diagram Description Camera Marking Phoenix Phoenix Connection connector Counterpart diagram 1457539 1543058 +24 supply Pin 1 = +24V • supply Pin 2, 4, 5 = nc •...
-
Page 27: Preparation By The Lely Service Provider
• Pin 3 = GND • • Pin 4 = DIO_1 Pin 5 = GND • 6.2.2 Preparation by the Lely Service Provider Determine placement of the camera Be sure the camera is always parallel with the ground surface. Installation... - Page 28 Projector distance 200 mm (7,87 in) toward the teat of the Calm (measured from the entrance, ) -> 800 mm (31,5 in) from the front broad (see figure 3 on page 6-4). Figure 3. Position camera on Lely Calm •...
- Page 29 Risk of being crushed or trampled. Block the cow traffic before the start of the installation. Always use a proper scaffold or a double sided ladder when you install the Lely Calm View or do • maintenance on the Lely Calm View.
- Page 30 in n o vato rs in ag ric u ltu re Figure 4. Incorrect assembly Malfunctioning Do not place the camera inside an airtight box / bag or cover it with a blanket. Check if auxilary power supply is used that the external power adaptor is rated at 24V (± 10%) and has •...
-
Page 31: Install The Lely View
Install the Lely View Tools Double sided ladder • Power drill • Wrenches • M12 Torque tool • Determine right position of mounting pole (see Determine placement of the camera on page 6-3). - Page 32 in n o vato rs in ag ric u ltu re Install the horizontal bar on the correct height (see Determine placement of the camera on page 6-3) with the clamp (1), clamp plate (4) to the horozontal bar plate (5) with the nuts (2,7) and washers (3,6) (see figure 6 on page 6-8) Use a double sided ladder when installing the horizontal bar for heifers.
- Page 33 in n o vato rs in ag ric u ltu re Set the length of the horizontal bar on the correct distance by sliding the inner tube (2) in to the outer tube (1) and lock the tubes with the two adjustment bolts (4) and nuts (3 (see figure 7 on page 6-9)). Figure 7.
- Page 34 Install the adapter plate (3) to the Lely Calm View with the four bolts (6), washers (5) and nuts (4) (see figure 8 on page 6-10). Figure 8. Install the adapter plate to the camera KEY: 1.
- Page 35 Place sealing caps on the connectors which are not in use. Check the functionality of the Lely Calm View and peripherals before installation. Unplug the power of the Lely Calm View on the not-device side. When PoE is used unplug the Ethernet on the not-device side.
-
Page 36: Set The Settings In The App
Set the Settings in the App Measure the height from the camera lens to the Solid (concrete / slatted floor). Launch the technician App. Enter height and determine Region of Interest. Calves: end of Lely Calm. • Heifers: • Cosmix: End of Lely cosmix. -
Page 37: Disposal
Lubricants and fluids must be disposed correctly to prevent pollution of the environment. Read the safety data sheets of the used lubricants and fluids for correct disposal. All lubricants and fluids must be disposed in compliance with the local rules and regulations. Contact your local authority or local Lely service provider for further details. Disposal... - Page 38 in n o vato rs in ag ric u ltu re INTENTIONALLY BLANK Disposal...
-
Page 39: Weee
WEEE directive, require special reuse and recycling processing. For this reason, Lely Industries N.V. has arranged that this product can be recycled at the local recycling/ disposal companies to collect and recycle this product at no cost to you. - Page 40 in n o vato rs in ag ric u ltu re INTENTIONALLY BLANK WEEE...
-
Page 41: Ec Declaration Of Conformity
in n o vato rs in ag ric u ltu re EC Declaration of Conformity EC Declaration of Conformity... - Page 42 in n o vato rs in ag ric u ltu re INTENTIONALLY BLANK EC Declaration of Conformity...
- Page 44 Lely Industries N.V. CornelisFvanFderFLelylaanF1 NL-3147FPB FMaassluis Tel +31F(0)88F-F12F28F221 Fax +31F(0)88F-F12F28F222 www.lely.com...
