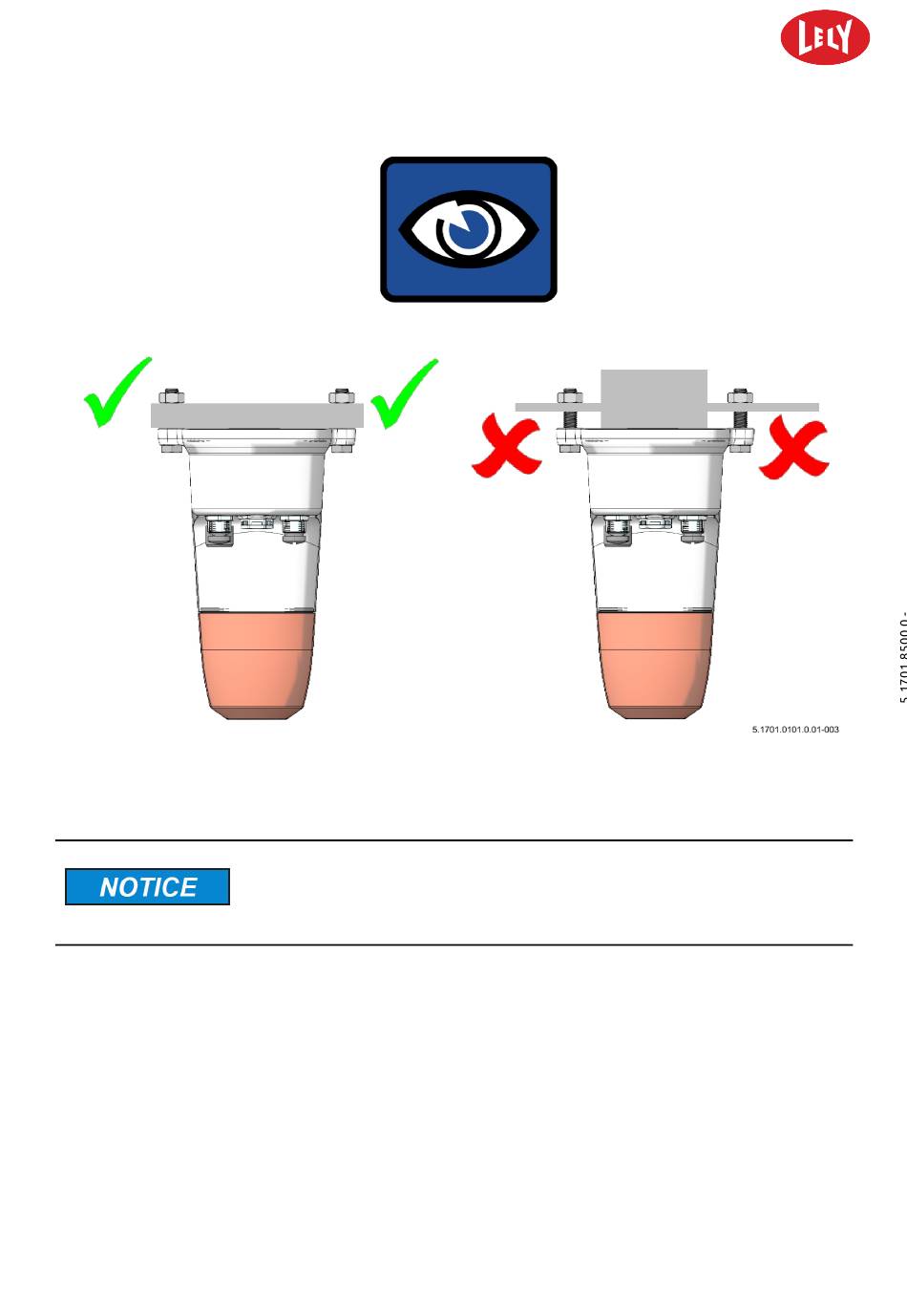

Figure 4. Incorrect assembly
Check if auxilary power supply is used that the external power adaptor is rated at 24V (± 10%) and has
•
a minimum output current of 4A.
• Check that the Gigabit PoE switch is minimum PoE++ (802.3bt type3) capable or better.
Check that the GPIO device has a maximum load of 0.7A at 24V. The frequency of the input signal
•
should be less than 1kHz with a duty cycle between 20 – 80%.
• Check that the CAN device has a maximum load of 1.2A at 24V and a baud rate of 125kbps, 250kbps,
500kbps or 1Mbps.
6-6
Malfunctioning
Do not place the camera inside an airtight box / bag or cover it with a
blanket.
