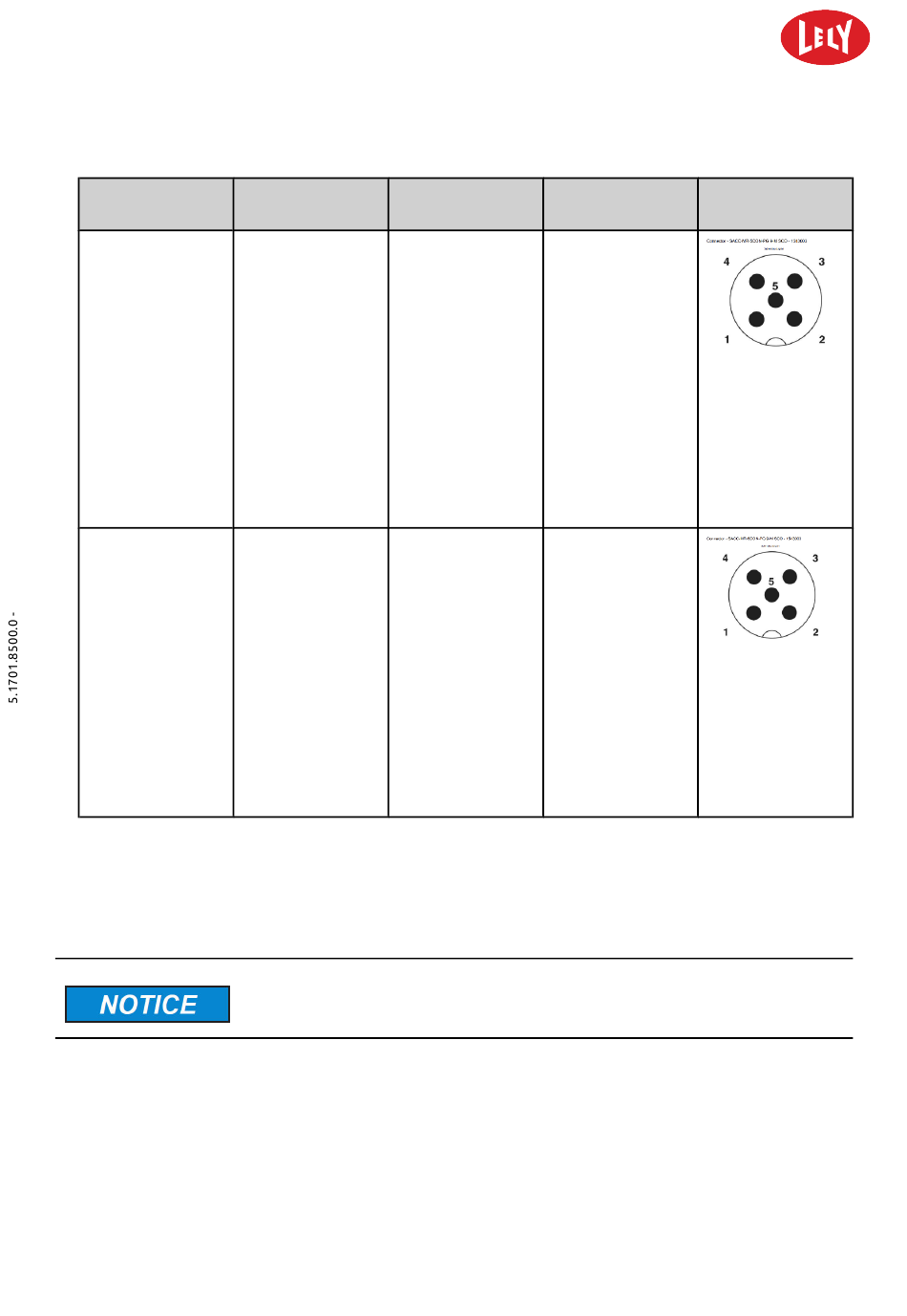

Table 1 Phoenix connectors, their counter connectors and the connection diagram (cont'd.)
Description
CAN interface
IO interface (2x)
6.2.2

Preparation by the Lely Service Provider

Determine placement of the camera
Installation
Camera Marking Phoenix
connector
CAN 1457652
DIO 1457652
Be sure the camera is always parallel with the ground surface.
Phoenix Connection
Counterpart diagram
1543003
•
•
•
•
•
1543003
•
•
•
•
•
in n o vato rs in ag ric u ltu re
Pin 1 = GND
Pin 2 = +24V
CAN
Pin 3 = GND
Pin 4 = CAN_H
Pin 5 = CAN_L
Pin 1 = +24V_
DIO
Pin 2 = DIO_2
Pin 3 = GND
Pin 4 = DIO_1
Pin 5 = GND
6-3
