O P E R A T O R ' S M A N U A L
LOTUS 1020
LOTUS 1020
B-HV.016.
0302

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LOTUS 1020 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LELY LOTUS 1020

Summary of Contents for LELY LOTUS 1020

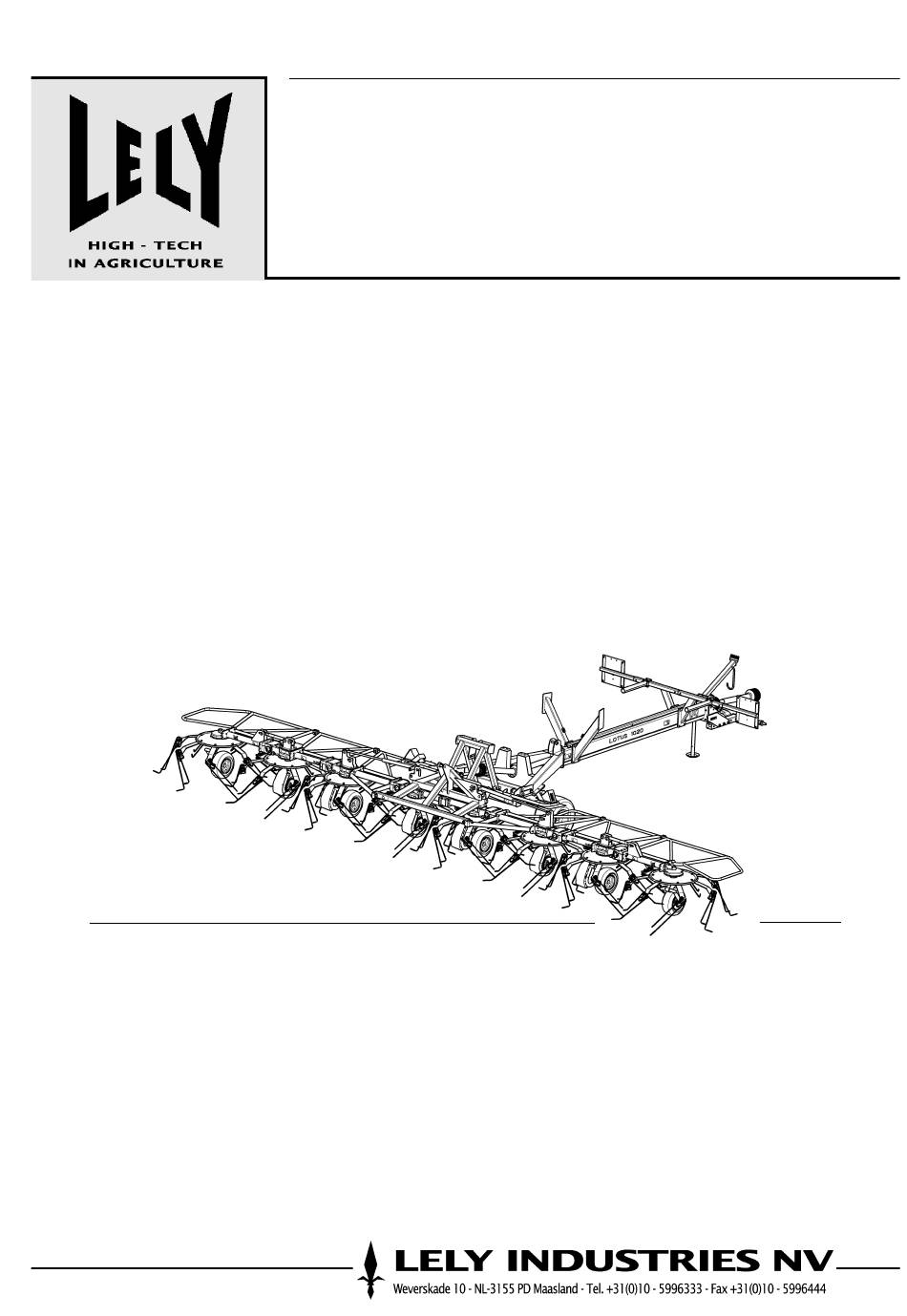

  • Page 1 O P E R A T O R ' S M A N U A L LOTUS 1020 LOTUS 1020 B-HV.016. 0302...
  • Page 2 The right of exclusive use belongs to the companies of the LELY Group. ©2002 LELY INDUSTRIES N.V.. All rights reserved. Nothing of this publication may be reproduced and/or published by printing, photocopying, microfilm or any other way without the prior written permission of LELY INDUSTRIES N.V., Maasland, the Netherlands.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS ....................page PREFACE.......................... 29 WARRANTY CONDITIONS .................... 29 TYPE- AND SERIAL NUMBER OF YOUR MACHINE..........29 SAFETY ..........................30 GENERAL SAFETY INSTRUCTIONS ................30 SAFETY INSTRUCTIONS ....................31 EXPLANATION OF SAFETY DECALS ON THE MACHINE ........32 1 INTRODUCTION ......................

  • Page 6: Preface

    PREFACE This manual is meant for personnel that are operating the machine and are responsible for its daily maintenance. Kindly read this manual fully prior to starting work. The machine described in this manual may contain compo- nents which do not form part of the standard equipment but are available as optional extras.

  • Page 7: Safety

    YOUR SAFETY IS INVOLVED! The safety alert symbol identifies important safety messages on your LELY machine and in the operator’s manual. When you see this symbol, be alert to the possibility of personal injury and/or a life threatening situation. Make sure to follow all prevailing safety instructions.

  • Page 8: Safety Instructions

    SAFETY INSTRUCTIONS • Use the machine only for the purpose for which it was designed. • Follow all prevailing safety regulations, including those laid down in this manual and occurring on the machine. • Operate this machine in a safe way. •...

  • Page 9: Explanation Of Safety Decals On The Machine

    EXPLANATION OF SAFETY DECALS ON THE MACHINE • Carefully read operator’s manual before handling the machine. Observe instructions and safety rules when operating. • Attention! Moving parts. Stay clear of rotating machine parts. • Danger of flying objects. Maintain a sufficient, safe distance from the machine as long as the tractor engine is running.

  • Page 10: Introduction

    INTRODUCTION The LOTUS 1020, 1020 SA and 1020 OFFSET are 3-point linkage tedders with an effective working width of 10,20 m. A capacity up to approx. 14 ha/h can be achieved thanks to the massive working width and high forward speed at which the machine can be operated (up to 15 km/h).

  • Page 11: Mounting Behind The Tractor

    MOUNTING BEHIND THE TRACTOR • Fit the draw bar to the machine in such a position that the horizontal distance from the pivot point to the drive shaft approximately equals the distance between the tractor catch hooks and PTO (fig. 2). This results in an optimum distribution of the PTO shaft angle ensuring a steady run of the machine in bends.

  • Page 12: Folding The Machine Out (Working Position)

    - Place the tractor control levers in the floating position (if available) to ensure optimum ground contour following. LOTUS 1020 OFFSET: - Open the ball valve lever (turn to the left) of the ram on the draw bar (fig. 6) to engage the OFFSET position of the machine.

  • Page 13: Transport

    (blue connections - Lower the elements in their supports by means of the lever for the double acting valve (white connections LOTUS 1020 OFFSET: - The transport position is engaged fully automatically. The machine is released from the OFFSET position and assumes a central position behind the tractor.

  • Page 14: Machine Adjustments

    MACHINE ADJUSTMENTS 4.1 From transport to working position Make sure that nobody is near the machine when it is converted from the transport- to the working position. - Apply the lever of the single acting valve (blue connections) to lift the elements from their supports. - The rotors can be folded down by means of the lever of the double acting valve (white connections).

  • Page 15: Adjustment Of Rotor Angle

    4.4 Adjustment of rotor angle The angle of the rotors in respect of the ground should be such that the tines stroke the ground with a light pressure and that they take up the crop adequately. Deep adjustment causes undue strain which increases wear and tear as well as the risk of tine breakage.

  • Page 16: Operating The Machine

    OPERATING THE MACHINE • Make sure that nobody is near the machine at the moment the PTO is engaged. • Do not allow anyone to come within a 25 m radius from the machine during work. Stop the tractor engine before leaving the tractor cab. If the machine is newly commissioned: first carry out the check and maintenance duties which are specified in chapter 7.3 “Intermediate maintenance”...

  • Page 17: Forward Speed And Pto Speed

    5.2 Forward speed and PTO-speed Both pick-up and spreading of the crop are dependent on the forward speed and rotor RPM. • Select the highest possible forward speed (up to 15 km/h as a maximum). • Operate at the lowest possible PTO output (400 - 450 RPM) always ensuring that the crop is picked up effectively.

  • Page 18: Dismounting From The Tractor

    DISMOUNTING FROM THE TRACTOR The machine can be dismounted from the tractor both in the working and in the transport position. Proceed as follows: - Switch off the tractor engine. - Set the parking jack in the bottom position. - Lower the tractor hydraulics until the parking jack rests on the ground.

  • Page 19: Maintenance

    MAINTENANCE • Correct machine servicing is essential with a view to reliable and safe working. • Machine servicing is necessary with a view to reliable and safe working. 7.1 Maintenance after operations • Clean the machine thoroughly. • Check the tines and tine arms for tightness and damage, if any.

  • Page 20: Lubrication

    7.2 Lubrication - Apply grease to all nipples on the machine. 40 h When greasing the gearboxes, keep turning the rotors bit by bit ensuring effective distribution of grease all over the gears. - Grease or lubricate all remaining pivot points every 40 working hours.

  • Page 21: Intermediate Maintenance

    7.3 Intermediate maintenance Intermediate maintenance has to be carried out: • at the start of the season; • before prolonged storage of the machine; • when the machine is used extensively during the season. - Grease all points of the machine listed in chapter 7.2 “Lubrication”.
  • Page 22 - Convince yourself of the presence and undamaged condi- tion of all safety decals on the machine (fig. 17). B (2x) C (2x)

  • Page 23: Oil/Grease Change

    - 1x - (p/n 9.1170.0408.0) - 2x - (p/n 9.1170.0407.6) - 2x - (p/n 9.1170.0410.2) - 1x - (p/n 9.1170.0420.5) - 1x - (p/n 9.1170.0125.4) - 2x - (p/n 16.61.175) 7.4 Oil/grease change Grease (contents: 0,25 kg/specification Shell Alvania WR-0) of the gearbox (fig.

  • Page 24: A Technical Details

    Bijlage A A TECHNICAL DETAILS ® LOTUS 1020 SPECIFICATIONS Working width 10,20 m Transport width 3,00 m Transport height 2,50 m Machine length 7,00 m Weight 1.950 kg (OFFSET 2000 kg) Power required 44 kW (63 pk) PTO output 400 - 450 RPM (max.
