6. Set the length of the horizontal bar on the correct distance by sliding the inner tube (2) in to the outer
tube (1) and lock the tubes with the two adjustment bolts (4) and nuts (3 (see figure 7 on page 6-9)).

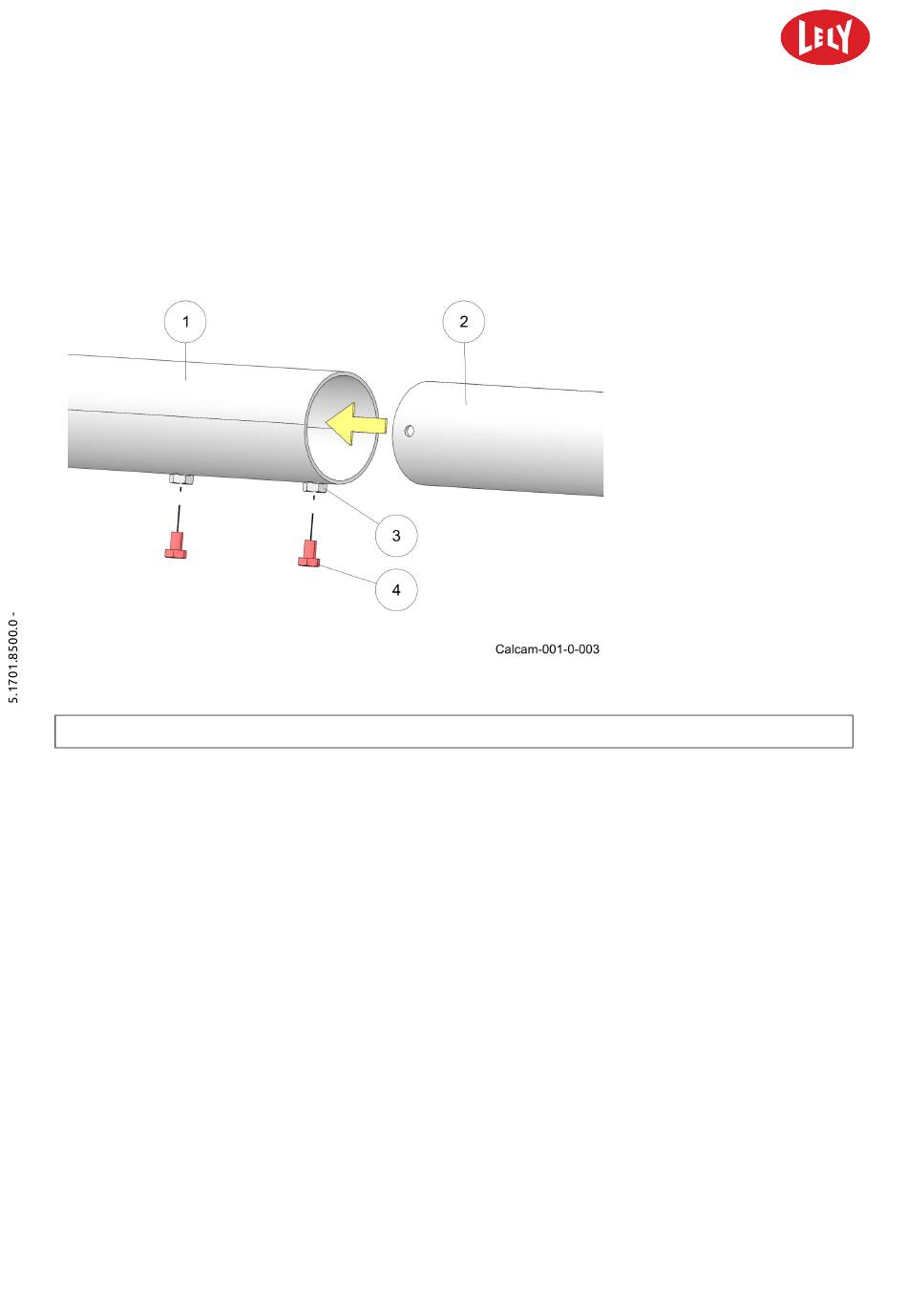

Figure 7. Adjust the horizontal bar
KEY: 1. Outer tube - 2. Inner tube - 3. Nut - 4. Adjustment bolt
