10 Application, Implementation, and Layout
Information in the following Applications section is not part of the TI component specification, and
TI does not warrant its accuracy or completeness. TI's customers are responsible for determining
suitability of components for their purposes. Customers should validate and test their design
implementation to confirm system functionality.
10.1 Application Information
10.1.1 Typical Application Circuit

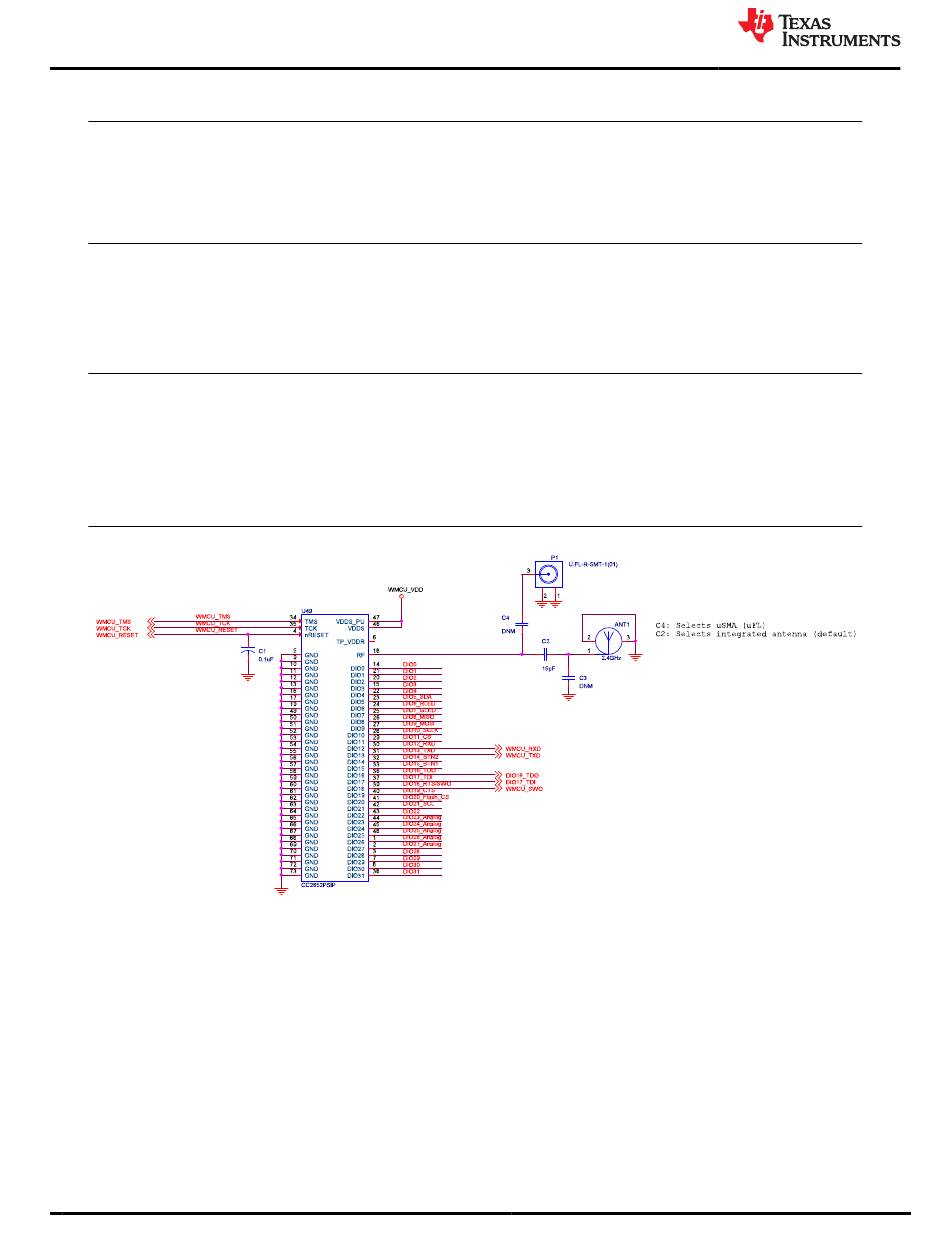

Figure 10-1
shows the typical application schematic using the CC2652PSIP module. For the full reference
schematic, download the
The following guidelines are recommended for implementation of the RF design:
•
Ensure an RF path is designed with a characteristic impedance of 50 Ω.
•
Tuning of the antenna impedance matching network is recommended after manufacturing of the
PCB to account for PCB parasitics. Please refer to
PCB Design
Considerations; section 5.1 for further information.
50
Submit Document Feedback
LP-CC2652PSIP Design
Figure 10-1. CC2652PSIP Typical Application Schematic
