AES global CellCOM PRIME Installation & User's Instructions page 37

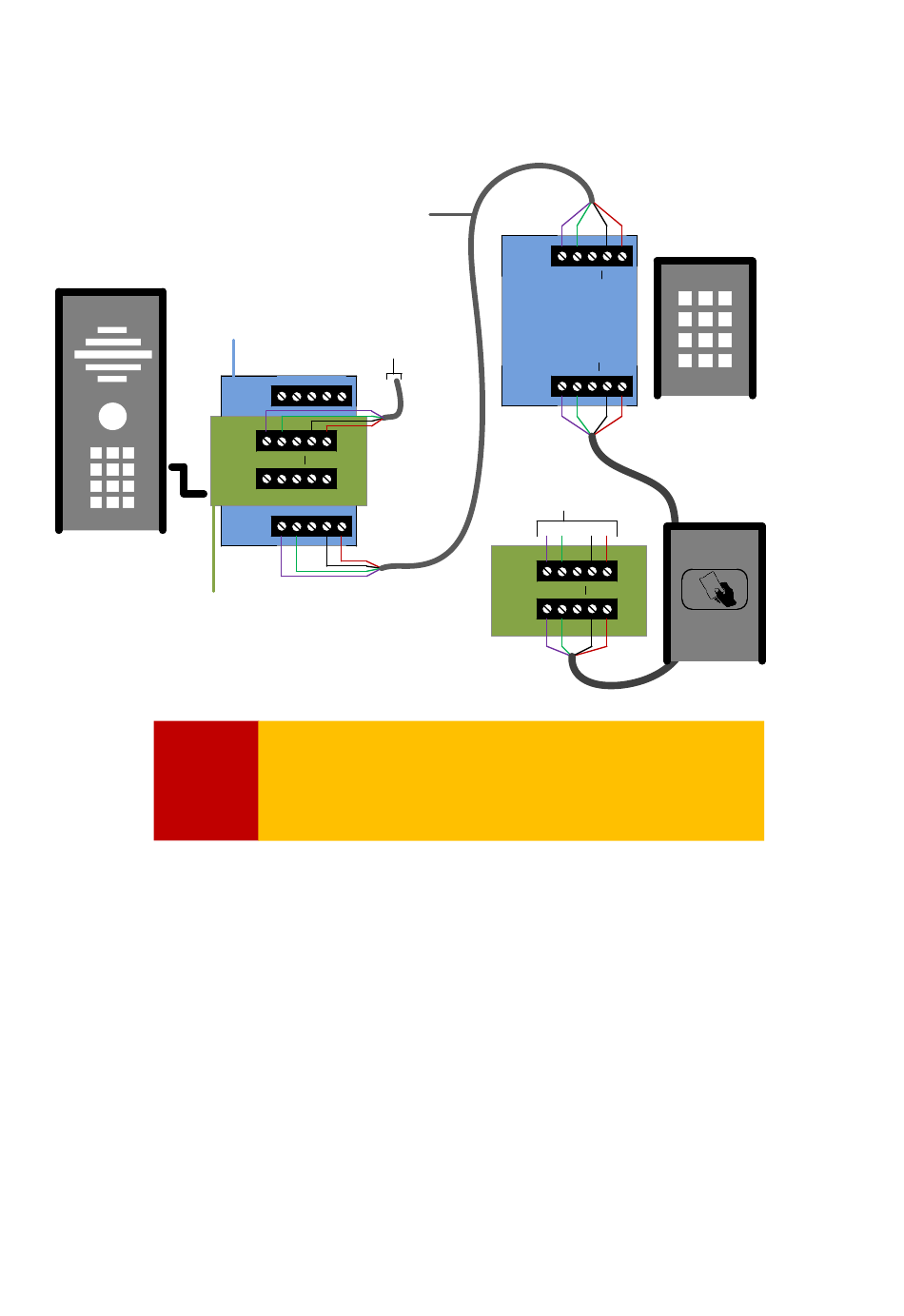

Connecting Slave Devices
th
(6 generation)
*Keypad module required*
CAT5 (30ft max)
Optional Slave
300ft if device powered separately
Keypad
IN
1 2 3 24v
Optional
Keypad
To next device
1 2 3 24v
OUT
IN
OUT
1 2 3 24v
IN Optional Slave Prox
To next device
Reader
OUT
OUT
1 2 3 24v
Optional Prox
IN
reader
Note:
Prime 6 th Up to a total of 8 devices can be connected to the one SIM module.
All keypads will be programmed with the same codes as the main unit.
Generation
All Prox units will store the same Prox cards.
Power slave devices separately for longer distances.
