Summary of Contents for AES global DECT 603
- Page 3 D.E.C.T 603 Digital Enhanced Cordless Telecommunications S i m p l e W i r e l e s s A c c e s s ! Handsfree wall/desk mount option Cordless High quality Transmitter handset speech panel option options ―...
- Page 4 D.E.C.T 603 Digital Enhanced Cordless Telecommunications Digital Wireless Signal for Clear Voice Transmitter Illuminated Call Button Relays Voicemail Feature for Missed Callers! Illuminated Optional Keypad Charging Dock Technical Specification Outdoor Unit Indoor Unit Relays Power Supply Charging Base = 5v dc. Wall Unit = 12v dc.
- Page 5 D.E.C.T 603 Digital Enhanced Cordless Telecommunications Up to 200m Digital expected working range* Intercom Transmitter Perimeter wall/fence 603 Range *Range varies according to building construction, obstacles, shrubs, trees, height of transmitter, etc.

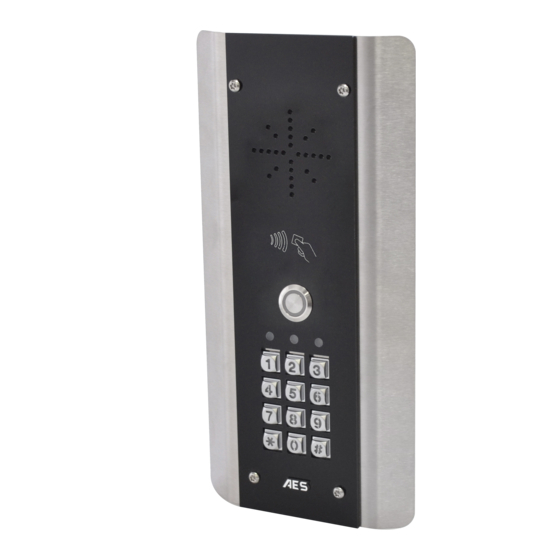

- Page 6 603-IMP 603-IMPK Sleek, all black call point, constructed from marine grade stainless steel, powder coated aluminium hood and gloss black toughened acrylic faceplate trim. Also available with wall mount monitor *603-HF-IMP / 603-HF-IMPK 603-IMP-PED 603-IMPK-PED Pedestal mountable, high volume call point, constructed from marine grade stainless steel, powder coated aluminium hood and gloss black toughened acrylic faceplate trim.
- Page 7 603-IMPK CALL PANEL 603-IMP CALL PANEL 603-ABK/ASK CALL PANEL 603-AB/AS CALL PANEL 603-IMP-PED CALL PANEL 603-IMPK-PED CALL PANEL...
- Page 8 603-EH Additional handsets (up to total of 4 max per intercom, which can be a mix and match of both styles.) 603-HF-EH Additional handsets (up to total of 4 max per intercom, which can be a mix and match of both styles.) Can be wall or desk mounted. 603-WIFIA Range boosting antenna which can be added to transmitter at gate and also optionally to the handsfree monitor type.
- Page 9 M u l t i - c a l l S t a t i o n S y s t e m Connect 2-4 call panels to 1 DECT transmitter Up to 4 603 MULTIP2 Handsets Speech Multiplexor Panel DECT Transmitter MULTIP2...
-
Page 10: M U Lt I B U T T O N
D.E.C.T 703 M U LT I B U T T O N Transmitter Digital Wireless Signal for Clear Voice Handsfree Illuminated Wall/Desk Mount Call Available Buttons Relays Voicemail Feature for Missed Callers! Charging Dock Illuminated Optional Keypad ― Digital D.E.C.T wireless intercom system for flats, apartments or shared gate entrances. - Page 11 D.E.C.T 703 M U LT I B U T T O N Home 1 Home 2 Home 3 Home 4 DIGITAL DECT SHARED GATE OR (200M) DOOR ENTRANCE TRANSMITTER 2-4 BUTTON MULTI APARTMENT PANEL Technical Details Power Supply 12-24v ac/dc (24v dc Cable Between Speech 4 metre screened adaptor included).
- Page 12 703-HS2 703-HS3 4 button kit with 3 handsets, hooded 2 button kit with 2 handsets, hooded panel. Also available with wall mount panel. Also available with wall mount monitor *703-HF-HS3 monitor *703-HF-HS2 703-HSK2 703-HS4 4 button kit with 3 handsets (1 button 2 button kit with 2 handsets, hooded spare), hooded panel.
- Page 13 D . E . C . T 7 0 5 W i r e l e s s V i d e o I n t e r c o m Handsfree wall/desk mount option Cordless High quality Antenna handset speech panel option options...
- Page 14 D . E . C . T 7 0 5 W i r e l e s s V i d e o I n t e r c o m Security screw access Menu & settings navigation, volume control Colour 3.5”...
- Page 15 705-HF-AB (Standard 705-AB (Standard Architectural Model) Architectural Model) Stylish curved architectural model. Modern blue back lighting effect. BS316 marine grade, brushed stainless steel construction with gloss acrylic trim. Kit includes speech panel, antenna, power supply, desktop/wall mounted monitor OR Portable Handset and install manual 705-HF-ABK (Architectural 705-ABK (Architectural Model with Keypad)
- Page 16 Rodiko Benelux BV Rumpsterweg 16 A 3981 AN Bunnik Telefoon +31 497 750 274 www.aestelecom.nl www.Rodiko.com info@Rodiko.com...
