AES global 603 Manual

603 DECT
- Single Button Wireless Audio Intercom System
* ALWAYS RANGE TEST THE UNIT ON SITE BEFORE INSTALLATION *

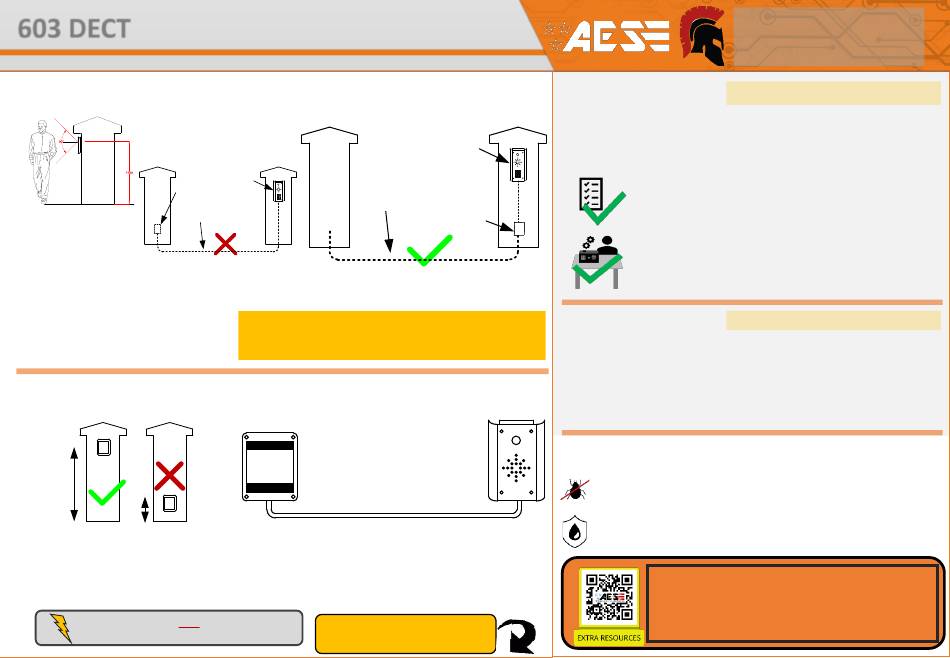

Mounting the Intercom
Power supply
Excessively long
cable!!
Mount the intercom at the desired height for pedestrian or car users. The camera angle is wide at
90 degrees to cover most scenarios.
Mounting the Transmitter
Tip: The transmitter should be mounted as high as
possible on the gate pillar or wall to maximise range.
Mounting close to the ground will reduce range and
is also more likely to be further restricted by long wet
grass, overhanging shrubs and vehicles.
LIGHTNING PRONE AREAS MUST USE SURGE PROTECTION
FOR POWER SUPPLY!
Call point
Mains power
Tip: Do not drill holes in the wall with the intercom in position,
otherwise dust may get around the camera window and impair the
camera view.
Never drill holes in the top of
Intercom the enclosure. Cable entry
should be through the
Transmitter
bottom.
603 Range
4 meters max
Screened CAT 5
(keep short for better audio)
See overleaf for more PCB details
Turn Over
SITE SURVEY
TIP: You must test to ensure that the system is capable of operating across
the desired range. Power the system on and place the handsets in their
Call point
expected locations around the property to ensure that the system is fully
functional and suitable for the site.
Power supply
POWER CABLE
TIP: Most technical calls received are due to installers using CAT5 or alarm cable to
power the unit.
Please use the following cable:
Up to 2 metres ( 6 feet )
Up to 4 metres ( 12 feet ) – Use minimum 0.75mm
Up to 8 metres ( 24 feet ) – Use minimum 1.0mm
INGRESS PROTECTION
We recommend sealing all entry holes for prevention of insects that can
cause issues with a risk of shorting out components.
TRANSMITTER
To maintain the IP55 rating please follow the sealing instructions included.
(also available online)
STILL HAVING TROUBLE?
Find all of our support options such as Web Chat,
Full Manuals, Customer Helpline and more on
WWW.AESGLOBALUS.COM
RESTOCKING FEES MAY APPLY IF RETURNED AFTER INSTALL DUE TO SITE
ISSUES. PLEASE SEE FULL T&C'S ON OUR WEBSITE.
Please read this entire manual before installing this
product. A full comprehensive manual is available on
our website for additional information.
Set up on a bench in workshop BEFORE going to site.
Program the unit in the comfort of your work bench and call
technical support should you have any questions.
KEEP POWER SUPPLY AS CLOSE AS POSSIBLE.
NEITHER are rated to carry enough power! ( 1.2amp peak )
– Use minimum 0.5mm 2 ( 18 gauge )
2
( 16 gauge )
2 ( 14 / 16 gauge )
NEED MORE ASSISTANCE?
+1 (321) 900 4599
SCAN THIS QR CODE TO BE BROUGHT TO OUR RESOURCES PAGE.
VIDEOS | HOW-TO GUIDES | MANUALS | QUICK START GUIDES
our website:
