Note:
The
manufacturer is
not responsible
for wiring to
third party
devices. Please
consult the
device
instructions if
having issues.
DISCLAIMER:
These diagrams are for
demonstrational use only please use the
manufacturer's instructions provided with the lock.
P a g e
| 34

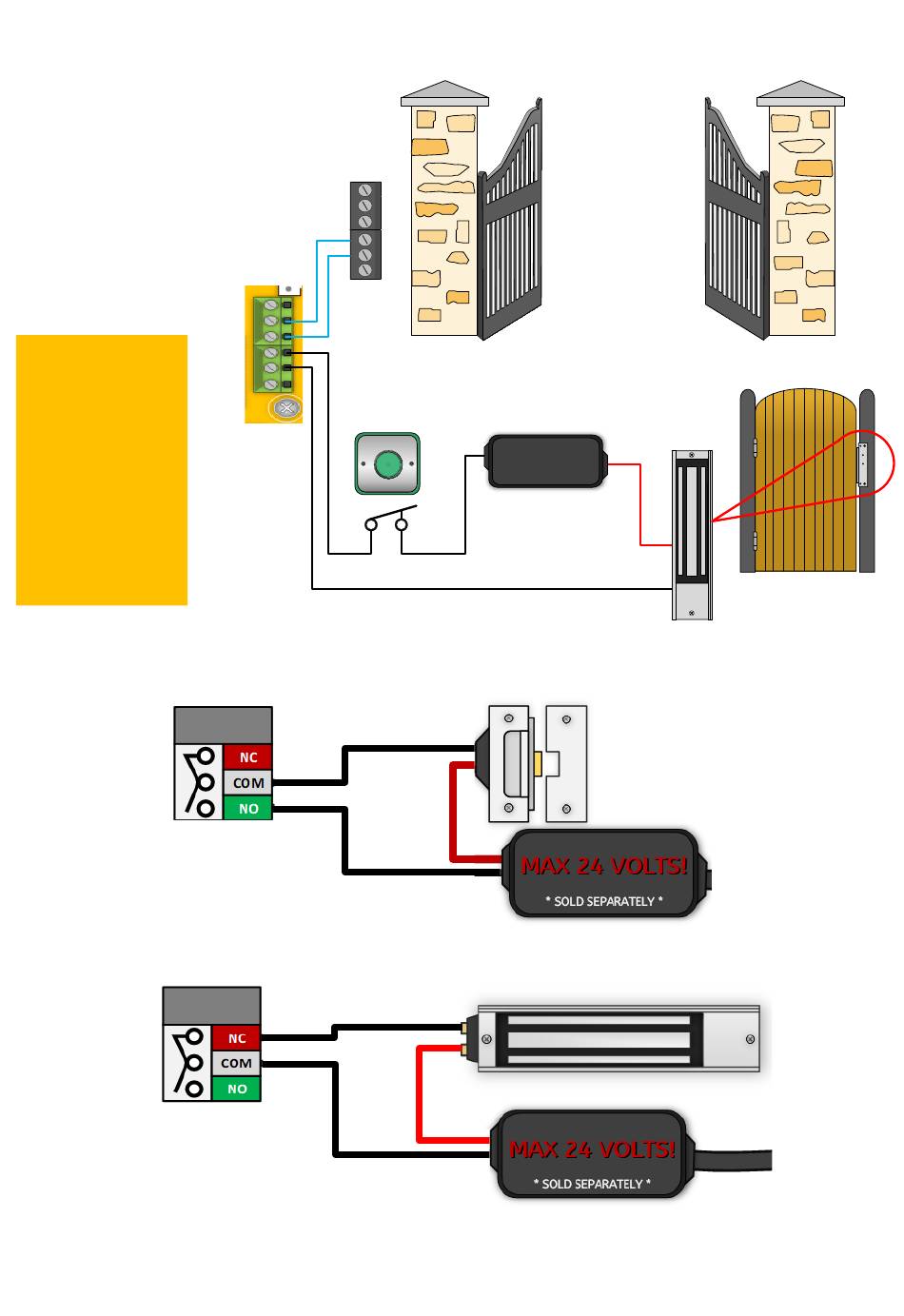

Relay Wiring Examples
Gate
Controller
Relay1
N/C
COM
N/O
N/C
COM
N/O
Exit Button
Relay 2
Additional Wiring Tips
Relay
Relay
Optional
Separate
lock PSU
PRESS
TO EXIT
N/C
MAGNETIC LOCK
Driveway
Gates
Magnetic Lock
STRIKE
LOCK
