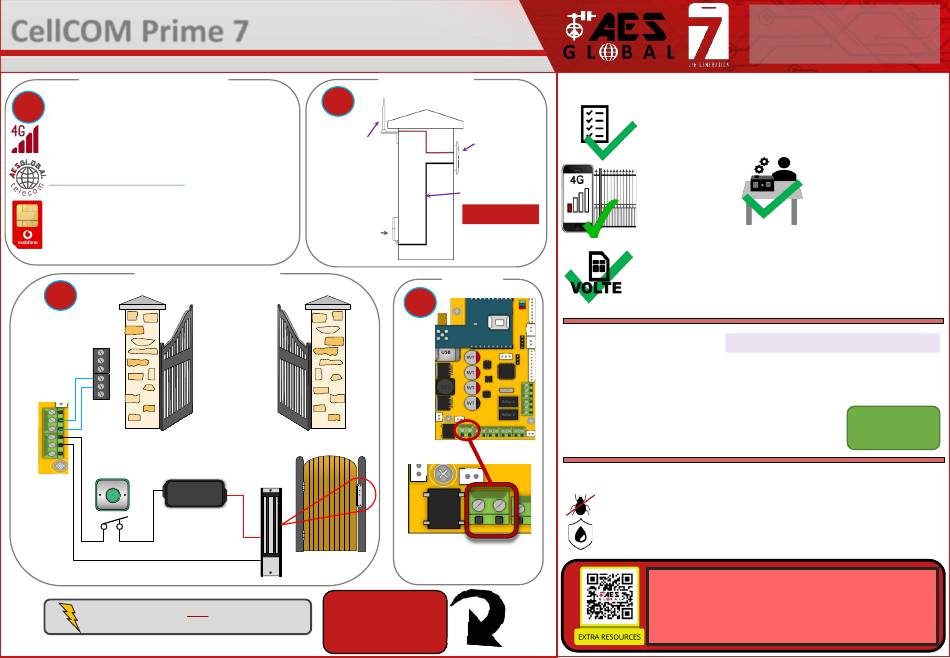

AES global CellCOM Prime 7 Quick Start Manual

CellCOM Prime 7
* ALWAYS TEST THE UNIT ON SITE BEFORE
SIM Preparation
Ensure you read all instructions before continuing.
1
The SIM cards provided need activated before
use. Follow the instructions provided or visit our
telecoms website for more details:
www.aesglobaltelecom.com
The system will be pre-programmed with the APN for
Vodafone
the network. If you wish to use a different
network then the correct APN must be set for full
operation. See Details overleaf on setting a new APN.
Relay Connections
4
Gate
Controller
Relay1
N/C
COM
N/O
N/C
COM
N/O
Optional
Separate
Exit Button lock PSU
Relay 2
PRESS
TO EXIT
N/C
LIGHTNING PRONE AREAS MUST USE SURGE PROTECTION
FOR POWER SUPPLY!
1
- Advanced GSM Intercom
INSTALLATION TO AVOID RE-STOCKING FEE *
Site Wiring
2
GSM
Antenna
PSU Enclosure
(Sold Separately)
Driveway
Gates
Magnetic Lock
See overleaf for
more PCB details
Turn Over
See full T&C's on our website
SITE SURVEY
Intercom
(Install at desired
height)
DC Power Cable
(1.5mm2 – 8m MAX)
Keep PSU as close to
the unit as possible.
Power
3
POWER CABLE
TIP:
to power the unit.
Please use the following cable:
Up to 2 metres ( 6 feet )
Up to 4 metres ( 12 feet ) – Use minimum 0.75mm
Up to 8 metres ( 24 feet ) – Use minimum 1.0mm
INGRESS PROTECTION
DC24v IN
(Polarity Protected)
Find all of our support options such as Web Chat,
Full Manuals, Customer Helpline and more on
Please read this entire manual before installing this
product. A full comprehensive manual is available on
our website for additional information.
Ensure there is good
4G signal on site. 4G
units will fall back to
3G service in some
countries.
This product requires a regular voice & SMS SIM card.
Do not use a data only SIM, as this will not work in the unit.
In order to make voice calls on a 4G system
and get optimum service, your SIM and provider will need to offer
VOLTE support (Voice over LTE).
KEEP POWER SUPPLY AS CLOSE AS POSSIBLE.
Most technical calls received are due to installers using CAT5 or alarm cable
NEITHER are rated to carry enough power! ( 1.2amp peak )
– Use minimum 0.5mm
We recommend sealing all entry holes for prevention of insects that can
cause issues with a risk of shorting out components.
To maintain the IP55 rating please follow the sealing instructions included.
(also available online)
NEED MORE ASSISTANCE?
+44 (0)288 639 0693
SCAN THIS QR CODE TO BE BROUGHT TO OUR RESOURCES PAGE.
VIDEOS | HOW-TO GUIDES | MANUALS | QUICK START GUIDES
STILL HAVING TROUBLE?
our website:
WWW.AESGLOBALONLINE.COM
Set up on a bench in workshop
BEFORE going to site.
Program the unit in the comfort
of your work bench and call
technical support should you
have any questions.
Power
2
( 18 gauge )
Consumption:
2 ( 16 gauge )
Standby = 80mA
2 ( 14 gauge )
Calling Out = 300mA
