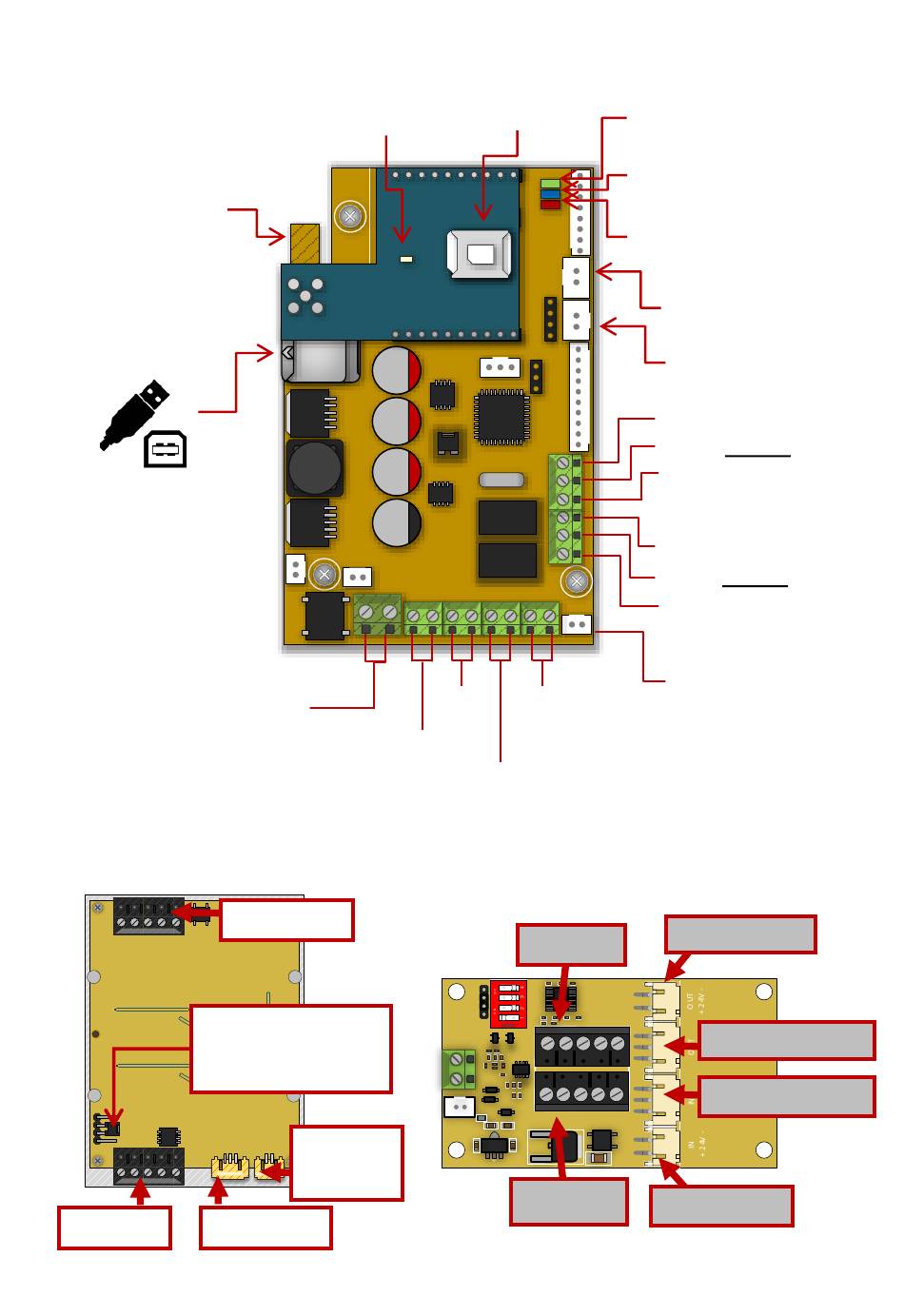

Main GSM Module (2) in Detail...
Female SMA
Antenna
Connection
USB-B Port
Polarity Protected
Keypad (14/15) & PROX Modules (11) in Detail
1 2 3
12-24V
OUT
SLAVE OUT
Master only/Auxiliary
(Baud rate on older units)
SLAVE IN
1 2 3
12-24V
OUT
Slave IN
P a g e | 18
White LED =
Modem Status
USB
RVT RVT
RVT RVT
101 101
RVT RVT
RVT RVT
DC 24V
Input from
supplied
DETECT
PSU
Gate Position
Limit switch
(optional)
Slave OUT
Jumper Link
DC
Voltage IN
DATA
NANO SIM
holder
8.000
Relay 1
Relay 2
OPEN
12V DC OUT
Exit Button
Push Button
Illumination
PB
To Call
Button
Slave IN
Connectio
ns
SLAV E OUT
1
COI L
Slave OUT
Connection
s
Green LED = CPU Status
Blue LED = Signal Status
Red LED = Power
Microphone
Speaker
N/C
COM
Relay 1
N/O
N/C
Relay 2
COM
N/O
12V = 12v DC
Output 100mA
(backlighting)
DC Voltage Out
1 2 3
SLAV E IN
DATA Transfer OUT
DATA Transfer IN
2 3
DC Voltage IN
IN
