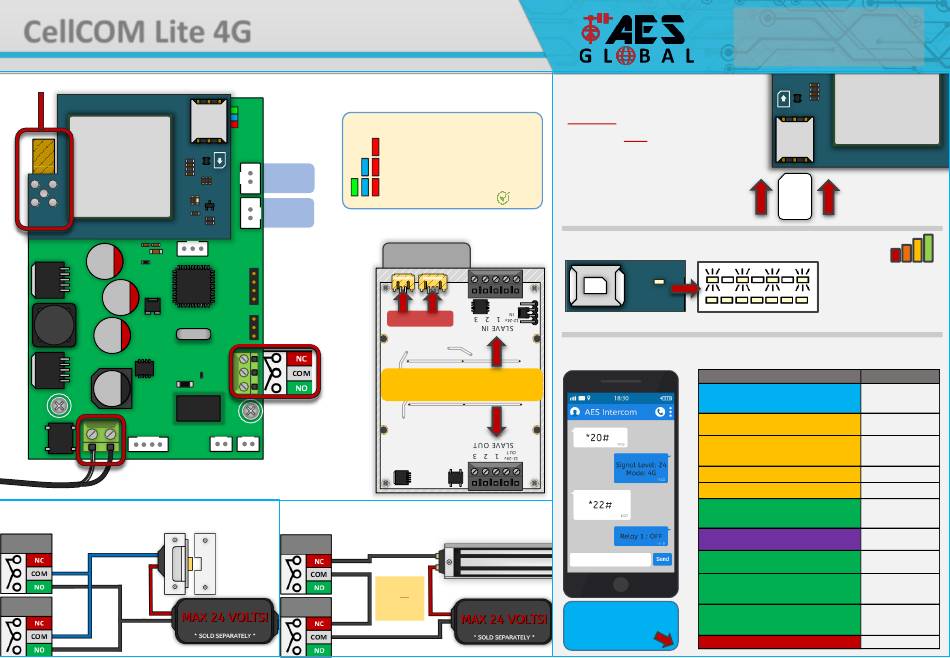

AES global CellCOM Lite 4G Quick Start Manual

CellCOM Lite 4G
* ALWAYS TEST THE UNIT ON SITE BEFORE
4G Antenna
RVT
RVT
RVT
8.000
RVT
DC24v IN
ALTERNATIVE WIRING EXAMPLE
INTERCOM
SECONDARY
( LINKING WITH SECONDARY RELAY IS OPTIONAL )
- GSM Intercom
INSTALLATION TO AVOID RE-STOCKING FEE *
Wiring Connections
MIC
SPK
Relay
Relay
ALTERNATIVE WIRING EXAMPLE
INTERCOM
STRIKE
LOCK
SECONDARY
See full T&C's on our website
PCB Status LEDs
SOLID RED = PCB POWERED ON
SOLID RED +BLUE FLASHING = SEARCHING
SOLID RED + BLUE FLASHING + GREEN FLASHING
= SUCCESSFULLY CONNECTED
CONNECTION TO NETWORK
Keypad
PWR | COMMs
SLAVE CONNECTIONS
(Optional. Check website for instructions)
LOCK POWER
MAGNETIC LOCK
SUPPLIES
ARE NOT
INCLUDED AS
PART OF THE
KIT.
( LINKING WITH SECONDARY RELAY IS OPTIONAL )
Find all of our support options such as Web Chat,
SIM ORIENTATION
ALWAYS ensure the system is
switched OFF when adding or
removing your SIM card and
ensure the orientation is
correct.
4G: Quick Flashing = Standby | Constant ON/OFF =
SYSTEM PROGRAMMING VIA SMS
Manually trigger,latch or unlatch relay by SMS.
X = Relay function.
(1 = Trigger relay, 2 = Latch relay, 3 = Unlatch relay)
Check Intercom Status
(min signal level required for full operation is 10)
Check stored numbers
O = dial out number. I = dial in number.
N = Another message. E = end of message.
Check Relay Status
Check Stored Keypad Codes
Store dialling out numbers (3 MAX)
X = sequence number dialled 1-3
number = phone number (max 14 digits)
Change Relay time
Time = 1-99 seconds
Add Caller ID number (max 25)
(max 14 digits long)
Add Keypad Code (max 25)
Code = 4 digits. Time = 1-10 seconds
Use 0 seconds for latching code
Send SMS direct or us
Set APN for connecting to 4G network.
APN Name = Networks APN
the custom built app
(e.g. 9999# 97wap.vodafone.co.uk# )
for ease.
PTO
Factory Reset (Default Everything)
STILL HAVING TROUBLE?
Full Manuals, Customer Helpline and more on
our website:
WWW.AESGLOBALONLINE.COM
Correct
SIM
Orientation
MODEM LED
INDICATOR
Searching
Function CMD String (SMS)
1234#X#
*20#
*21#
*22#
1234#25#
9999#11Xnumber#
9999#50time#
9999#72number#
9999#811code#time#
9999#97APNna me#
9999#999#
