AES global 705 DECT Manual

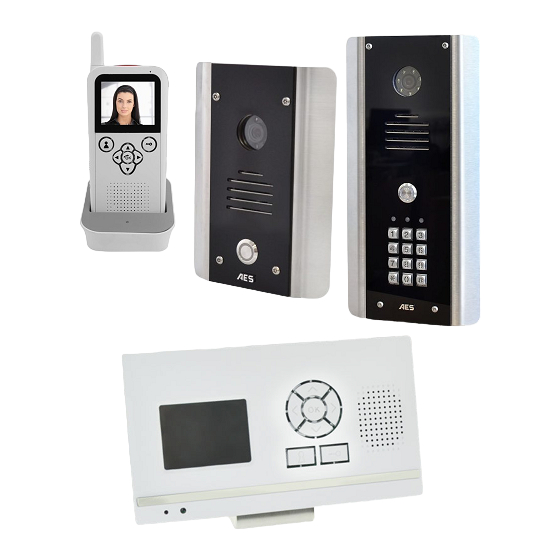

705 DECT
* ALWAYS RANGE TEST THE UNIT ON SITE BEFORE INSTALLATION *

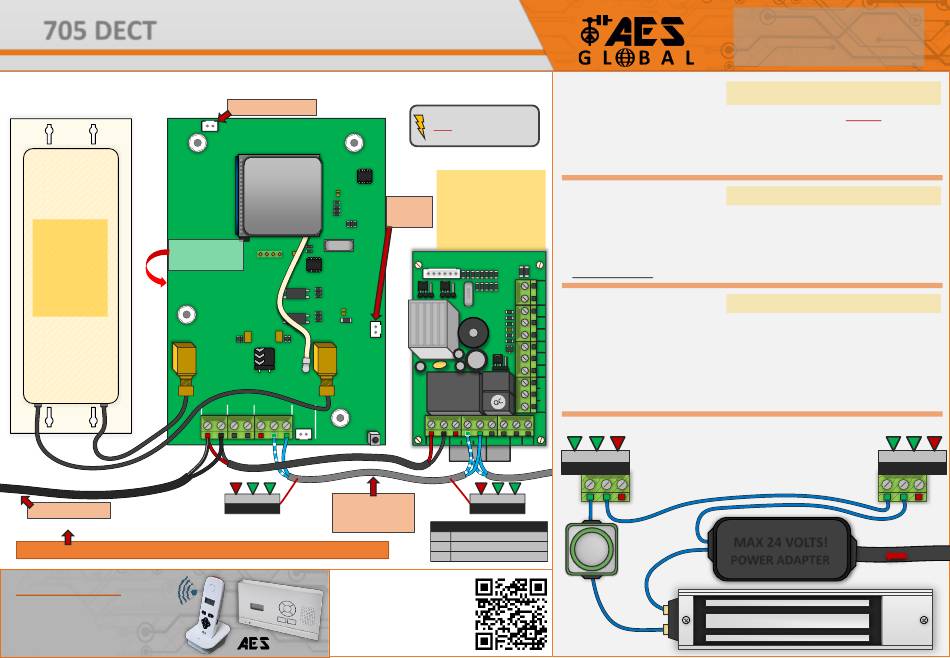

WIRING DIAGRAM

MIC
DECT ANTENNA
Both leads of the
Programming LED will
antenna are
illuminate on the
underside of the PCB
required as the
audio and video
signals are
transmitted over
separate
frequencies.
AES 24v Power Supply
Please only use power supply provided. Do NOT
Did you know?
With our 705 DECT video system you can add
up to a max of 4 portable handsets or wall
mounted versions.
( 1 VIDEO HANDSET MAX. )
- Radio Intercom System
Pre-wired MIC connection
Transmitter Module
8.000
WARNING:
ESD SENSITIVE
DEVICE
SPK
12vO
24v IN UT RELAY 1
CALL
Code
Button
N/ C | C | N/ O
Link both Relay 1's to
TRANSMITTER allow either to release
the same door / gate.
power any additional devices from this power supply.
NEED MORE ASSISTANCE?
Please scan this QR Code to be
brought to our Resources page
where you can find all of our
guides and available resources.
SITE SURVEY
TIP:
LIGHTNING PRONE AREAS
MUST USE SURGE PROTECTION
You must test to ensure that the system is capable of operating across the desired
FOR POWER SUPPLY!
range. Power the system on and place the handsets in their expected locations
around the property to ensure that the system is fully functional and suitable for
the site.
THE AES KEYPAD IS AN
OPTIONAL EXTRA.
OPTIMAL RANGE
Pre-wired PLEASE SEE
SPEAKER
'KPX1200 GUIDE'
TIP:
connection
FOR FULL INSTRUCTIONS ON
property and near a window if possible. Also ensure the antenna is mounted
PROGRAMMING AND
EXTENSIVE FEATURES.
pointing towards the handset.
Concrete walls can reduce the normal open-air range of up to 450 metres by
AES KEYPAD
30-50% per wall.
POWER CABLE
TIP:
to power the unit.
Please use the following cable:
Up to 2 metres ( 6 feet )
Up to 4 metres ( 12 feet ) – Use minimum 0.75mm
Up to 8 metres ( 24 feet ) – Use minimum 1.0mm
RELAY 1 R2
N/ C
TRANSMITTER
N/ C | C | N/ O
AES KEYPAD
RELAY CONNECTIONS
N/ O Normally Open
C Common
N/ C Normally Closed
Find all of our support options such as Web Chat,
Full Manuals, Customer Helpline and more on
RESTOCKING FEES MAY APPLY IF RETURNED AFTER INSTALL DUE TO SITE
It is recommended that the system be fully tested on site
SYSTEM INCOMPATIBLE WITH FOIL INSULATION.
For longer range installations, locate the handset closest to the front of the
KEEP POWER SUPPLY AS CLOSE AS POSSIBLE.
Most technical calls received are due to installers using CAT5 or alarm cable
NEITHER are rated to carry enough power! ( 1.2amp peak )
– Use minimum 0.5mm

MAGNETIC LOCK EXAMPLE

Follow this method when using a magnetic lock. If the relay in either the
| C | N/ O
Transmitter or optional AES Keypad is triggered it will temporarily lose power
and allow the door/gate to release.
For installs without the optional AES Keypad; connect the
Magnetic Lock PSU to N/C terminal on Transmitter Relay.
+
MAX 24 VOLTS!
EXIT
-
POWER ADAPTER
* MAGNETIC LOCK PSU SOLD SEPARATELY *
+
MAGNETIC LOCK
-
STILL HAVING TROUBLE?
our website:
WWW.AESGLOBALONLINE.COM
ISSUES. PLEASE SEE FULL T&C'S ON OUR WEBSITE.
BEFORE installation.
2 ( 18 gauge )
2
( 16 gauge )
2
( 14 / 16 gauge )
N/ C | C | N/ O
AES KEYPAD
POSITIVE of the
MAINS
POWER
