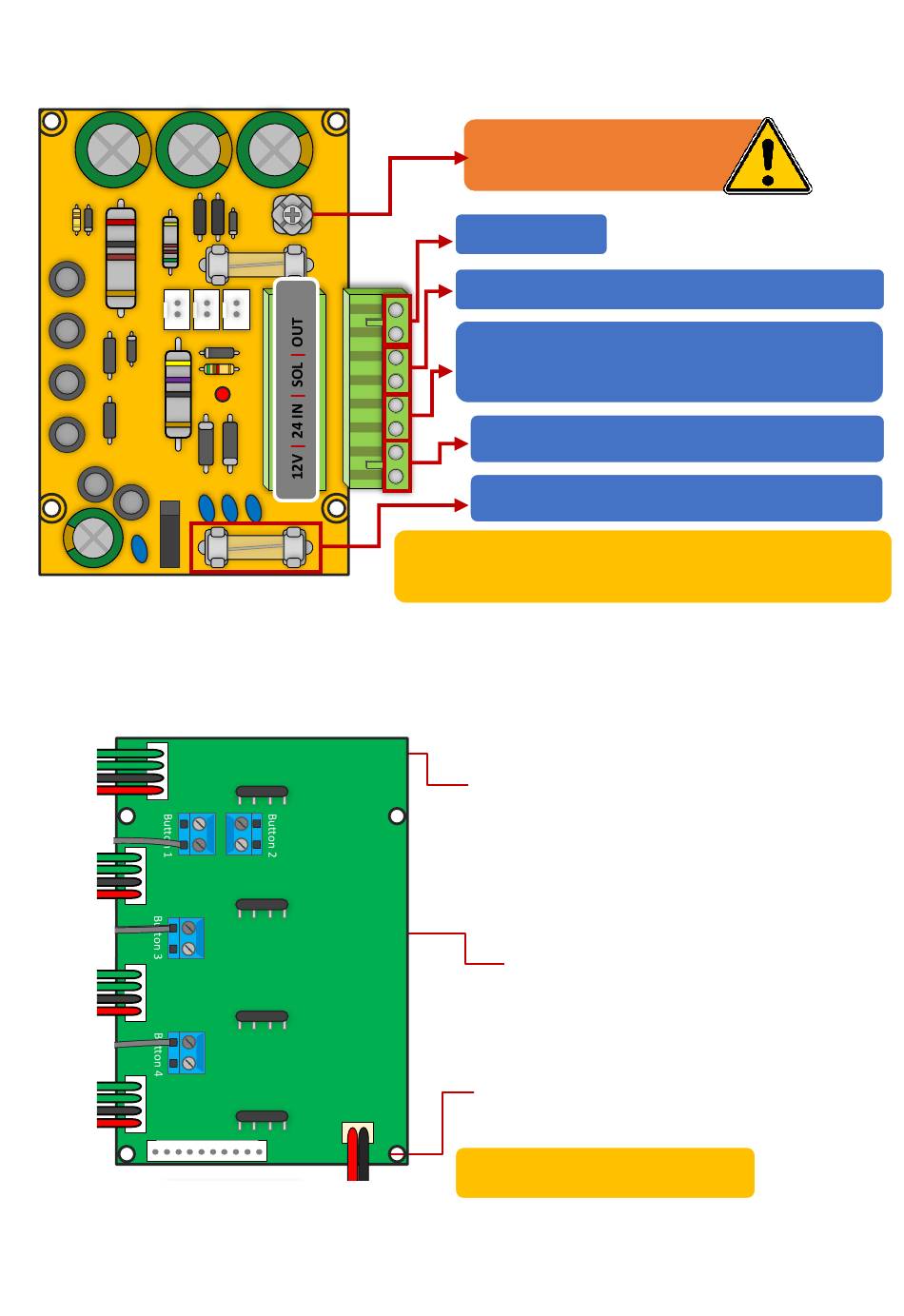

Overview of Multibutton PCB (3)
= COMMON = COMMON
P a g e | 19
Overview of Surge PCB (4)
*optional extra
*Multibutton Systems Only
C
C
C
-
+
C
Earth Rod MUST be connected for
warranty.
Power Output
NOT USED
24v INPUT – Use provided power supply or hook up to
24v solar system.
12v DC – Battery backup
1 Amp Quick Blow Input Fuse (REPLACEABLE)
Must use a 30 Watt solar panel (minimum) and at least 2 x 10Ah
batteries to supply a regulated 24v
Button Power &
Connection Cable
Direct Cable Connectors
(NOT USED)
10-Way
Connection Cable
Note: Connections will be pre-wired.
(DO NOT USE 12v HERE)
