AES global 705 DECT Mounting

705 DECT
- Single Button Wireless Video Intercom System
* ALWAYS RANGE TEST THE UNIT ON SITE BEFORE INSTALLATION *

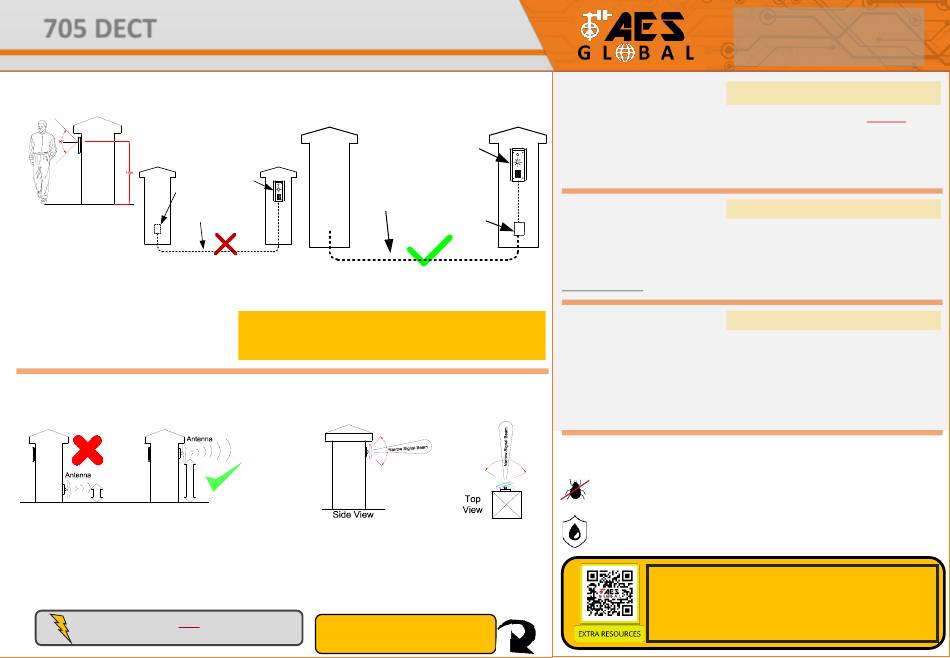

Mounting the Intercom
Power supply
Excessively long
cable!!
Mount the intercom at the desired height for pedestrian or car users. The camera angle is wide at
90 degrees to cover most scenarios.
Mounting the Antenna
Tip: Mount the antenna as high as possible to
achieve longest range.
LIGHTNING PRONE AREAS MUST USE SURGE PROTECTION
FOR POWER SUPPLY!
Call point
Mains power
Tip: Do not drill holes in the wall with the intercom in position,
otherwise dust may get around the camera window and impair the
camera view.
Tip: Antenna beam width is approximately 40
degrees. For short range door intercoms, ask your
distributor or dealer for an omni-pole type antenna
with 360 degree beam angle.
See overleaf for more PCB details
Turn Over
SITE SURVEY
TIP: It is recommended that the system be fully tested on site
installation. You must test to ensure that the system is capable of operating
Call point
across the desired range. Power the system on and place the handsets in
their expected locations around the property to ensure that the system is
fully functional and suitable for the site.
OPTIMAL RANGE
Power supply
TIP: For longer range installations, locate the handset closest to the front of the
property and near a window if possible. Also ensure the antenna is mounted
pointing towards the handset.
Concrete walls can reduce the normal open-air range of up to 450 metres by
30-50% per wall.
POWER CABLE
TIP: Most technical calls received are due to installers using CAT5 or alarm cable to
power the unit.
Please use the following cable:
Up to 2 metres ( 6 feet )
Up to 4 metres ( 12 feet ) – Use minimum 0.75mm
Up to 8 metres ( 24 feet ) – Use minimum 1.0mm
INGRESS PROTECTION
We recommend sealing all entry holes for prevention of insects that can
cause issues with a risk of shorting out components.
TRANSMITTER
To maintain the IP55 rating please follow the sealing instructions included.
(also available online)
STILL HAVING TROUBLE?
Find all of our support options such as Web Chat,
Full Manuals, Customer Helpline and more on
WWW.AESGLOBALONLINE.COM
RESTOCKING FEES MAY APPLY IF RETURNED AFTER INSTALL DUE TO SITE
ISSUES. PLEASE SEE FULL T&C'S ON OUR WEBSITE.
SYSTEM INCOMPATIBLE WITH FOIL INSULATION.
KEEP POWER SUPPLY AS CLOSE AS POSSIBLE.
NEITHER are rated to carry enough power! ( 1.2amp peak )
– Use minimum 0.5mm 2 ( 18 gauge )
2
( 16 gauge )
2 ( 14 / 16 gauge )
