Vidicode APRESA Series Installation Manual page 49

2 DIFFERENT COLORING SCHEMES ARE USED
SIMPLE OHMIC MEASUREMENT BY YOU IS NEEDED TO FIND OUT THE
Follow the CORRECT table below to find a particular channel twisted pair.
For instance when locating the wires associated with channel 9, look for the colors of PAIR # 9 in the !! CORRECT !! table
below, and find the wires (SCHEME #1) identified by a RED wire & BROWN wire !! AND !! twisted together.
PAIR # COLORING
1 WHITE
2 WHITE ORANGE
3 WHITE GREEN
4 WHITE BROWN
5 WHITE
6 RED
7 RED ORANGE
8 RED GREEN
9 RED BROWN
10 RED
11 BLACK
12 BLACK ORANGE
13 BLACK GREEN
14 BLACK BROWN
15 BLACK
16 YELLOW
17 YELLOW ORANGE
18 YELLOW GREEN
19 YELLOW BROWN
20 YELLOW
21 PURPLE
22 PURPLE ORANGE
23 PURPLE GREEN
24 PURPLE BROWN
25* PURPLE* GREY*
*) = This pair is not used / not connected.
NOTES:
THIS IS SUPPORTING INFORMATION ONLY AND WE ADVISE YOU TO CAREFULLY CHECK THE
•
CABLE YOU HAVE, AS ITS COLORING SCHEME MAY EVEN BE DIFFERENT FROM THE 2
SCHEMES LISTED ABOVE.

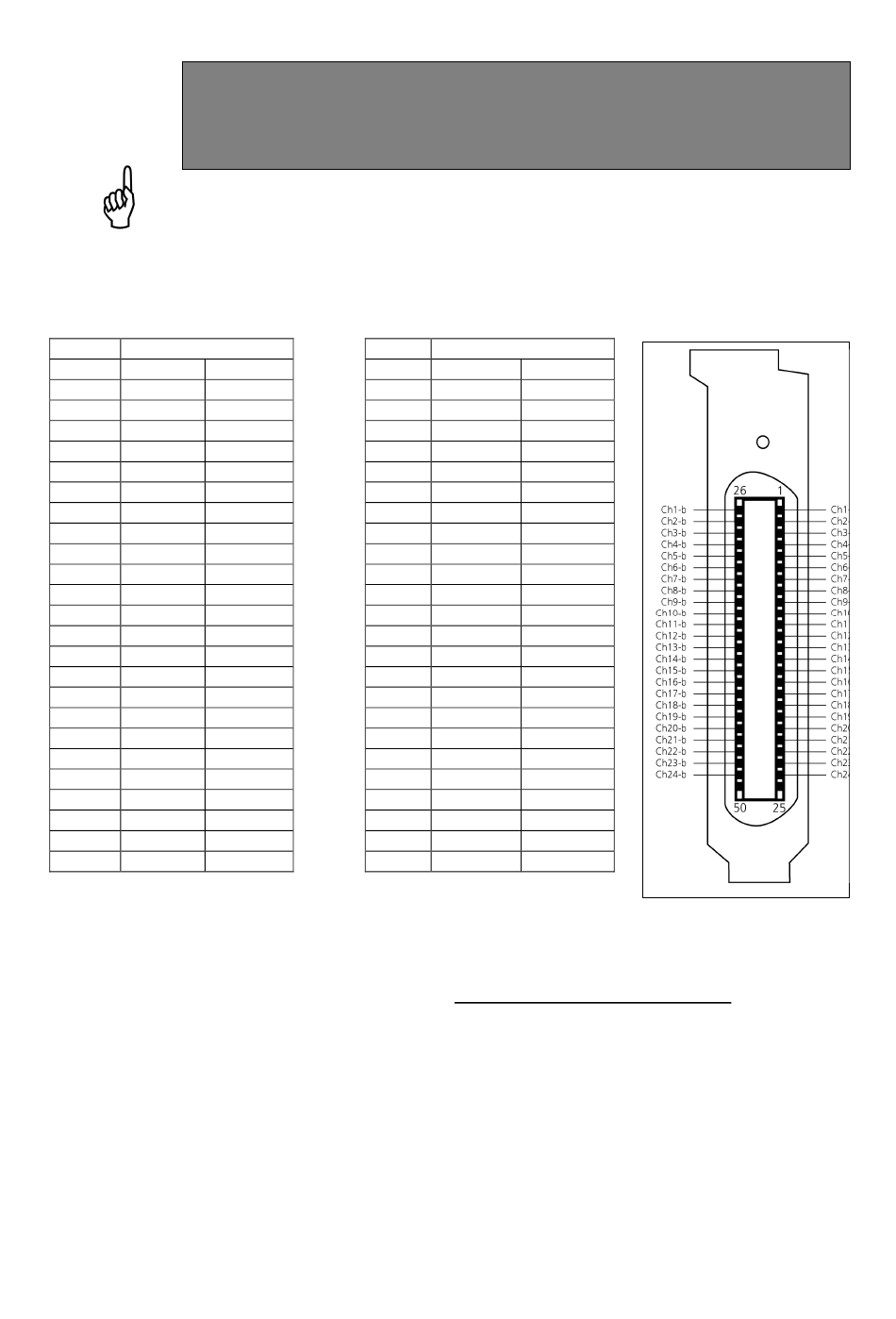

THE CONNECTOR SHOWN AT THE RIGHT IS THE ONE ON THE INTERFACE CARD (ON THE PC
•
BRACKET) AND THE NUMBERS 1/26 AND 25/50 ARE SWAPPED IN COMPAPRISON WITH THE
NUMBERING PRINTED ON THE CONNECTOR BY THE CONNECTOR MANUFACTURER. WE USE
THE SWAPPED NUMBERING TO KEEP COMPLIANCE WITH DOCUMENTATION OF THE
INTERFACE CARD MANUFACTURER.
INSTALLATION MANUAL APRESA
COLORING SCHEME TO FOLLOW
#1 : PAIR#
BLUE 1
2
3
4
GREY 5
BLUE 6
7
8
9
GREY 10
BLUE 11
12
13
14
GREY 15
BLUE 16
17
18
19
GREY 20
BLUE 21
22
23
24
25*
COPYRIGHT © 2011-2017 VIDICODE ®
COLORING #2 :
BLACK GREY
BLACK BROWN
BLACK ORANGE
BLACK GREEN
BLACK BLUE
RED GREY
RED BROWN
RED ORANGE
RED GREEN
RED BLUE
YELLOW GREY
YELLOW BROWN
YELLOW ORANGE
YELLOW GREEN
YELLOW BLUE
PURPLE GREY
PURPLE BROWN
PURPLE ORANGE
PURPLE GREEN
PURPLE BLUE
WHITE GREY
WHITE BROWN
WHITE ORANGE
WHITE GREEN
WHITE* BLUE*
49
