12.1. ATP-24A/PCI+/2.0 / ATP-24A/PCIe+/2.0 / ATP-24A/PCIe+/3.0
This type o interface card is typically used for the recording of:
• Analog subscriber lines (POTS)
• Plain AUDIO signals.

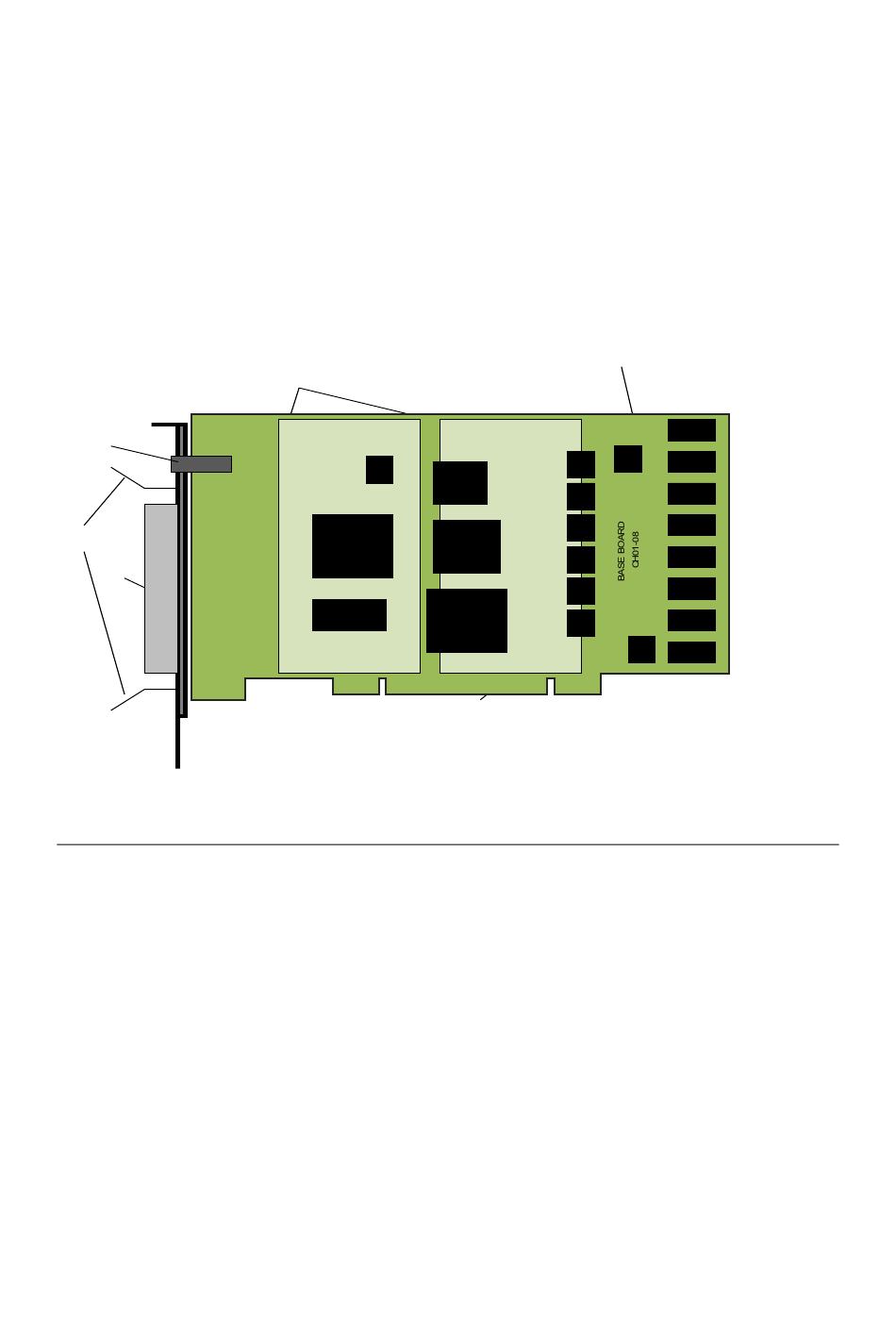

The base-board supports 8 ANALOG channels but is expandable to 16 or 24 channels in total by the
application of 1 or 2 expansion boards.
EXPANSION M ODUL ES
AUDIO
JA CK
L OCKING
BRA CKET S
RJ2 1
Key specifications overview:
# channels
Size
Impedance
Sensitivity
Input connector
TAP type
Isolation
Power dissipation
Sample rate
Frequency response
Signal to Noise ratio
INSTALLATION MANUAL APRESA
OPT IONA L 8CH
( 2 PCS )
PCI (d ra wn ) or PCIe X1
8, 16 or 24
160x111 mm (excluding the bracket)
10KOHM AC / > 1MOHM DC /
8mV ...... 750mV, by 16 steps.
RJ21 (50 pin)
Hi-Impedance passive monitoring by parallel connection
500 VDC
<8 W (3V3@900mA / 5V@200mA / 12V@100mA
8KHz
300-3400 Hz (±3dB)
>34 dB
COPYRIGHT © 2011-2017 VIDICODE ®
ATP-24A/PCI+(2.0)
ATP-24A/PCIe +(2.0)
ATP-24A/PCIe +(3.0)
DWG11 3 8_ 0 1
85
