Chapter 2: Jumpers and Connectors

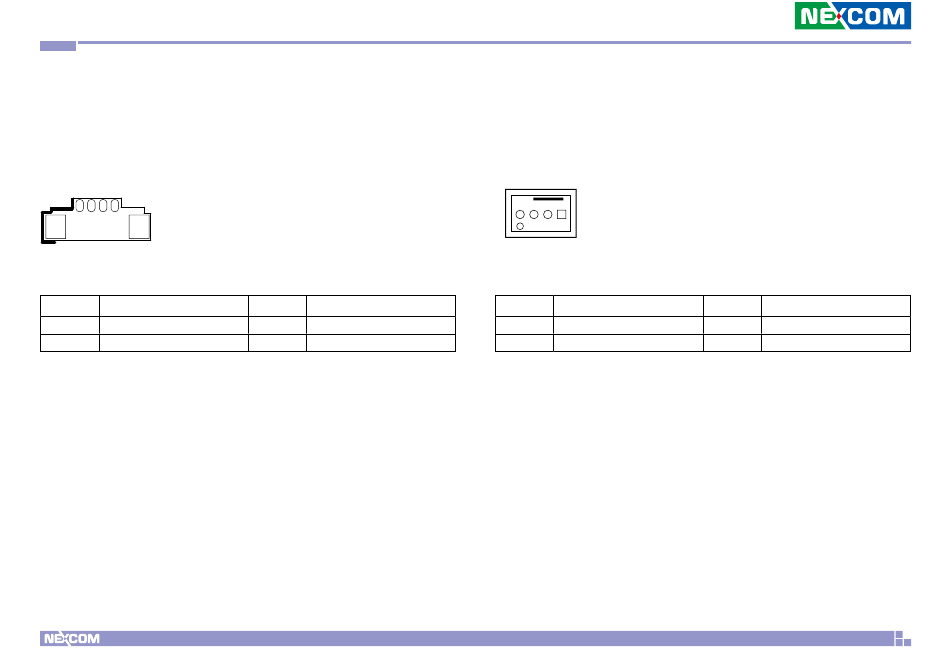

Speaker Connector

Connector type: 1x4 4-pin header, 1.25mm pitch
Connector location: SPK
1 4
Pin Definition
1 LOUTP_40
3 ROUTP_40
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 LOUTN_40
4 ROUTN_40

FAN Connector

Connector type: 1x4 4-pin header
Connector location: FAN
4 1
Pin Definition
1 GND
3 FANIN
18
Pin Definition
2 12V
4 FANOUT
