Chapter 1: Product Introduction

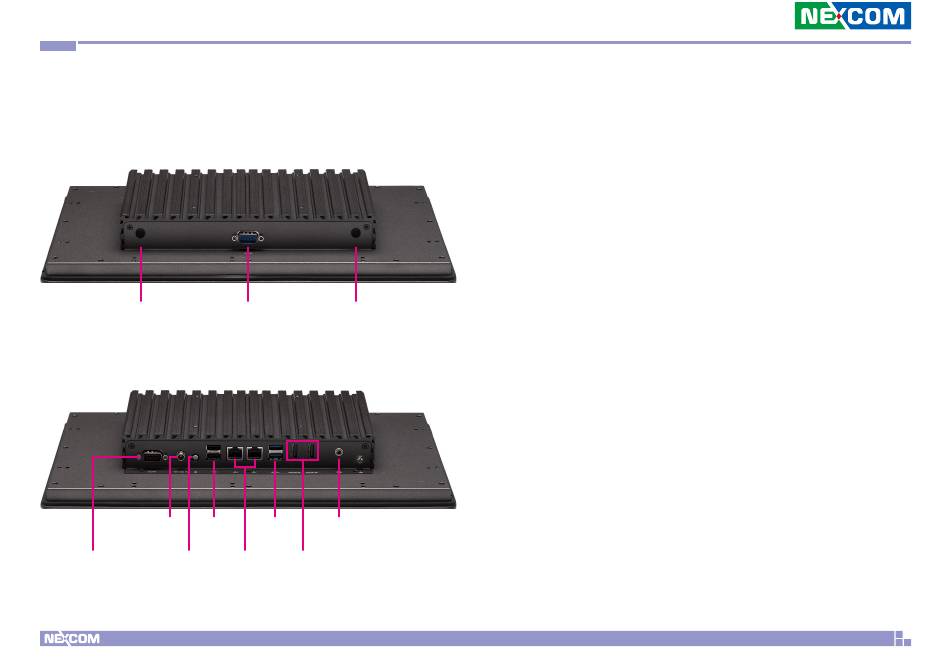

Knowing Your XPPC 16-101

Rear Top

Antenna Hole

Rear Bottom

19V USB 2.0
DC Input
COM1
Power LAN1 & LAN2
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
COM2 Antenna Hole
USB 3.0 Line-out
HDMI
Antenna Holes
The external antenna mounting holes are used to mount and connect
optional Wi-Fi antennas.
COM2 (optional)
DB9 port used to connect RS232 (RI/5V/12V optional) compatible devices.
COM1
DB9 port used to connect RS232/422/485 compatible devices.
19V DC Input
Used to plug a DC power adapter.
Power Button with LED
Press to power-on or power-off the system with LED indicating power status.
USB 2.0
Used to connect USB 2.0 devices.
LAN1 & LAN2
Used to connect the system to a local area network.
USB 3.0
Used to connect USB 3.0/2.0 devices.
HDMI
Used to connect an HDMI interface monitor.
Line-out
Used to connect a headphone or a speaker.
