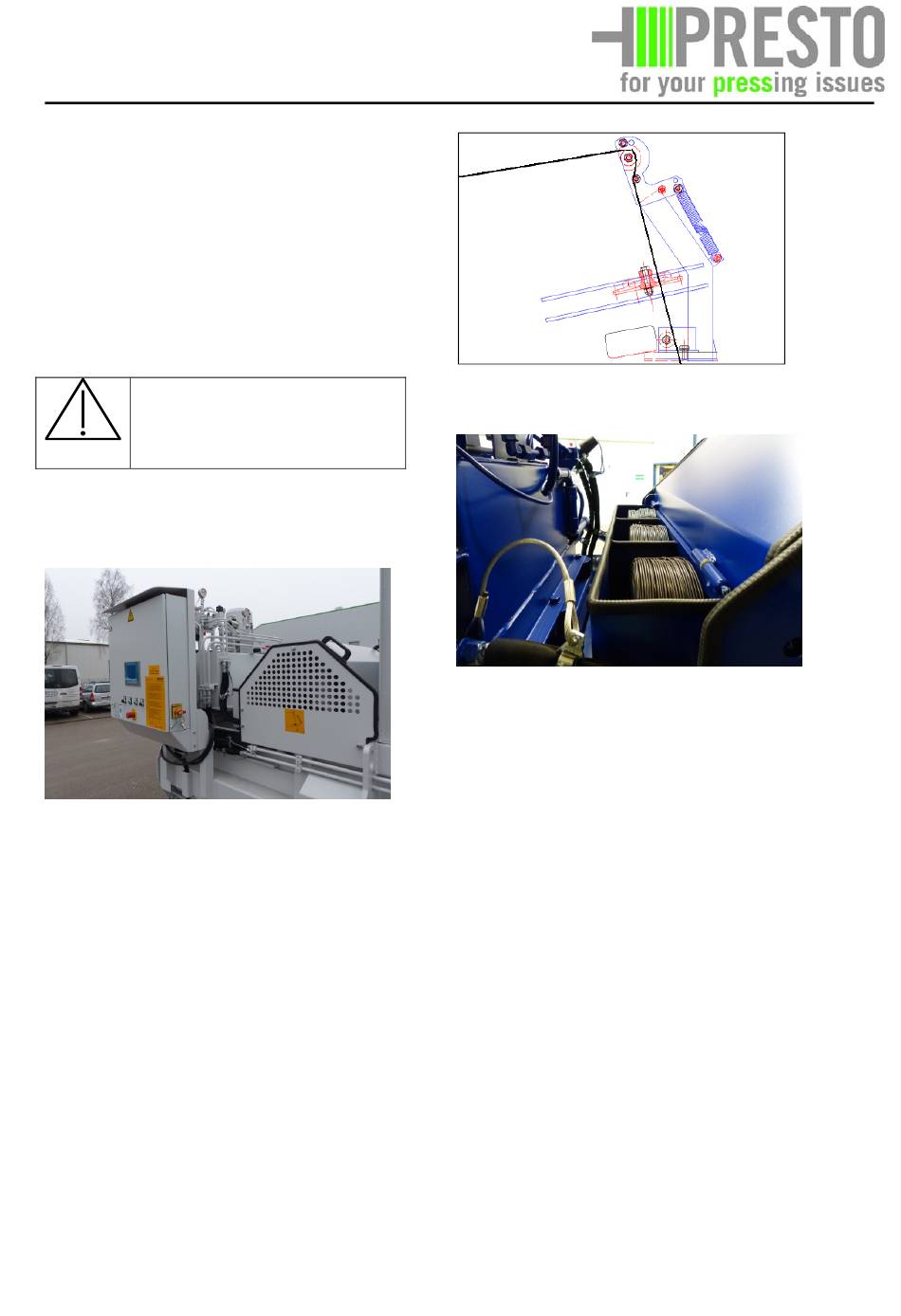

Presto CONTI COMPACT CC-20 V Operating Manual page 46

Operating controls and operation
6.6.2 Replacing upper wire reels
To insert wire coils in the machine,
suitable steps/ladders and hoisting
equipment must be used.
On this, please observe the applicable
accident prevention regulations and the
user's instruction manual of the
manufacturer.
If you need suitable aids get in
touch with PRESTO
• Open the knotting hood (Fig. 75)
to access the knotting machine.
Fig. 75: knotting hood
• Pull the wire end from the centre
of the upper wire reel through the
diverting rollers to the knotting
machine.
• Fig. 76 shows how the upper wire
is correctly laid between the
diverting rollers.
• Then the wire end has to be routed
through the slit of the twist disk.
Push the wire up to the upper side
of the channel.
Fig. 76: guiding upper wire
Fig. 77: wire station upper wire
• Close all doors and hoods still
open.
• Set operating mode selector to
position "Auto" and press push‐
button switch "Operation" and
„Start"
• Pull the bale length measuring
wheel out of its position until the
"set" message lights up on the
touch panel. Afterwards the bale
length measuring wheel can be
placed back in its position. The bale
length measuring wheel only
counts when the press body
moves.
