Presto CONTI COMPACT CC-20 V Operating Manual page 38

Channel baling press

Hide thumbs Also See for CONTI COMPACT CC-20 V:

Table of Contents

Constructive description

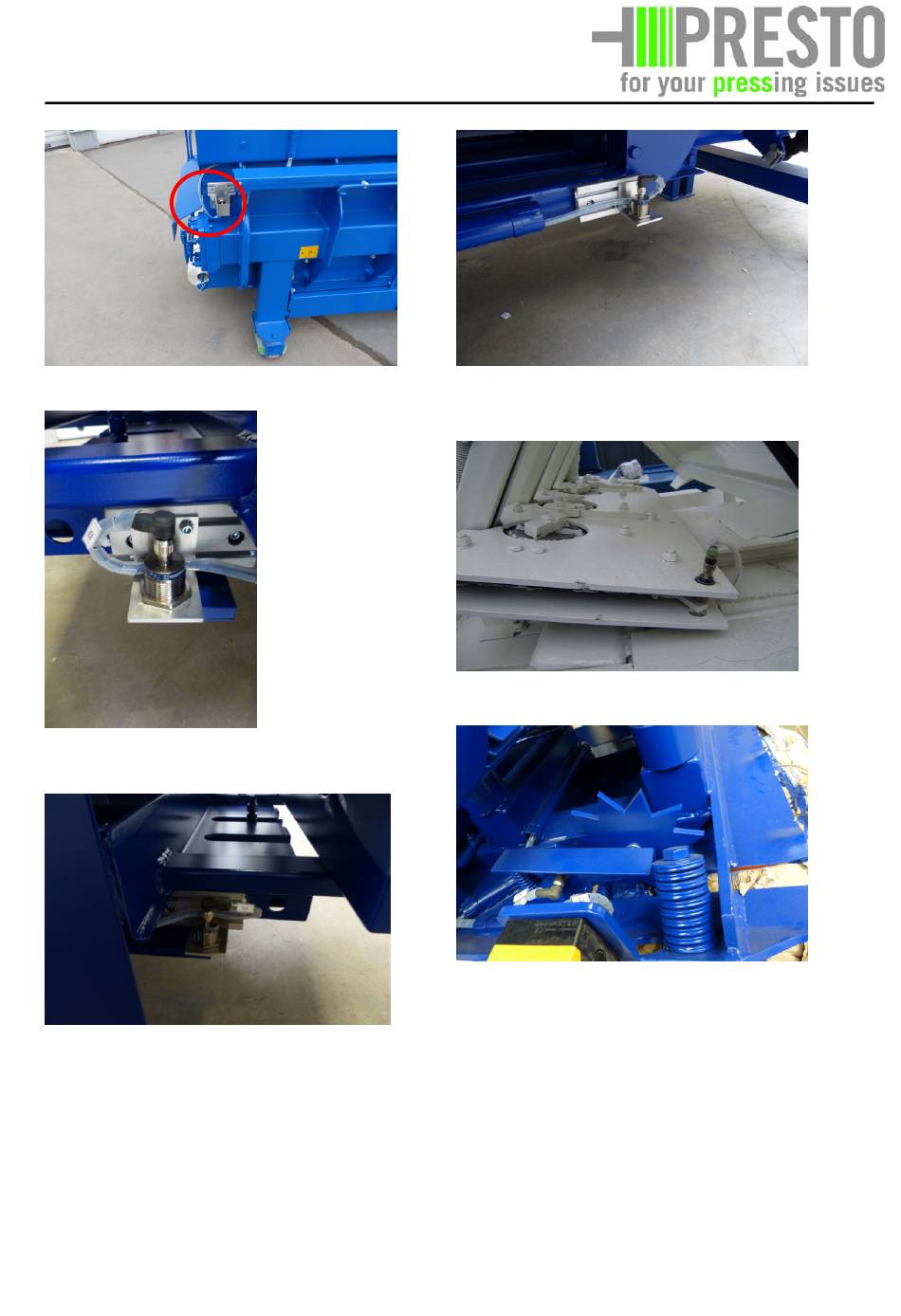

Fig. 56: proximity switch press rear

Fig. 57: proximity switch end position needle

bottom (right)

Fig. 58: proximity switch end position needle

bottom (left)

04/2015 S. 38

Fig. 59: proximity switch end position needle at

top (right)

Fig. 60: proximity switch pulse generator twist

Fig. 61: proximity switch pulse generator bale

length
