Replacing Wire Rolls - Presto CONTI COMPACT CC-20 V Operating Manual

Operating controls and operation
6.6 Replacing wire rolls
Use tie wire on reels for the fully
automatic tying device (knotting machine).
To ensure trouble‐free operation use the
tie wire available through our customer
service.
Properties:
Tie wire: 20kg, 40kg ‐resp. 250kg reels
patent wound, and diameter, 2,8 up to 3,4
mm soft‐annealed and oiled (see
operating supplies).
Note:
Always use tie wire which has the above
properties. Tie wire which does not match
the specifications leads to operating
trouble. Article numbers can be found in
chapter Spare parts.
When inserting new wire
coils, do not climb onto the
machine !
If you want to begin the replacement,
switch the machine to "manual" operation
using the operational switch.
For the wire station:
If a wire station is used the wire must
initially be laid over the diversion rollers to
the eyes (lower wire) or to the knotting
device cover.
6.6.1 Replacing lower tie reels:
• Check if the press body is in the
back end position.
• Change respectively lay new reels
in the wire stations.

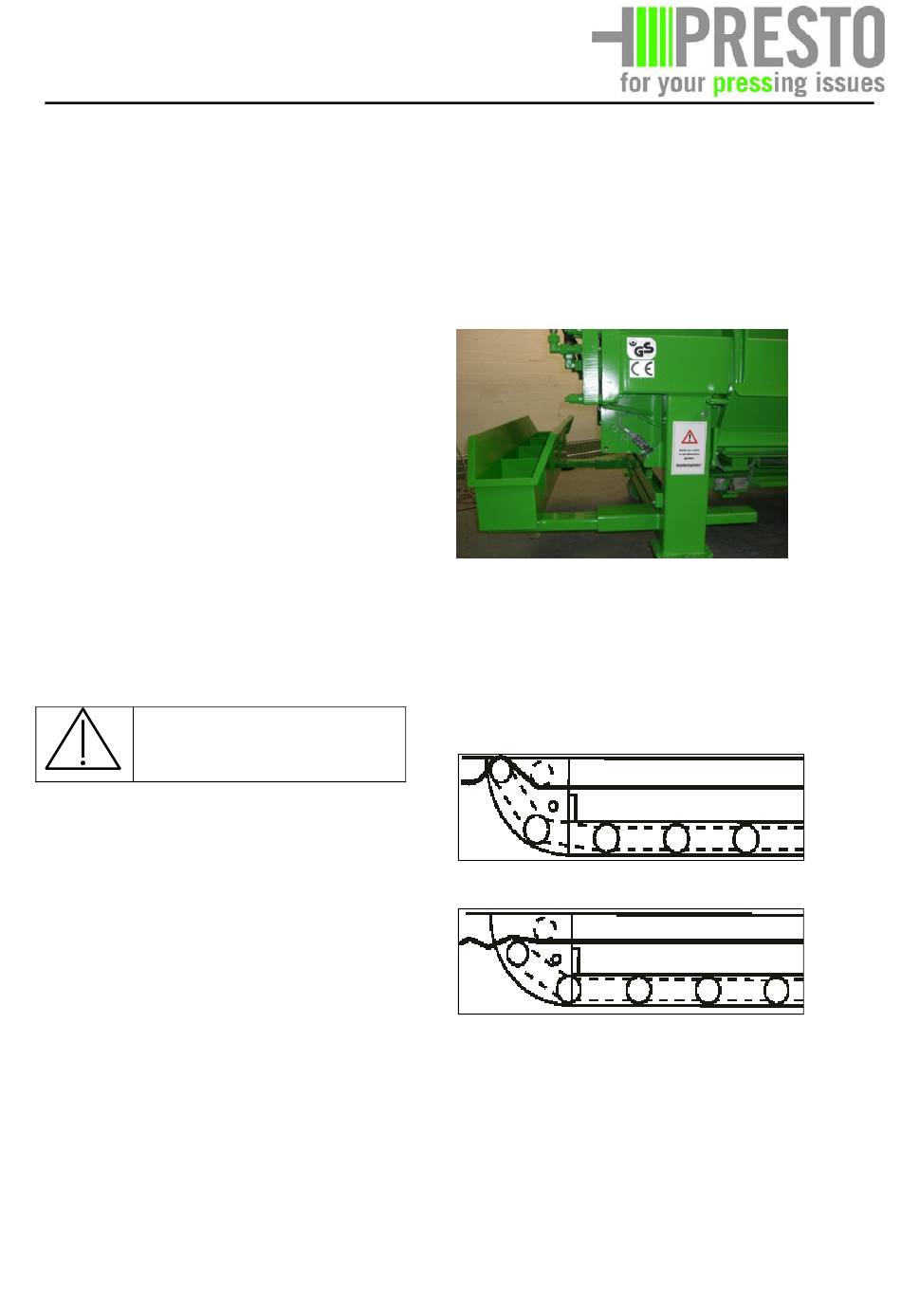

Fig. 70: station lower wire
• Press the key button "Needle
down" and hold until the needle
has reached the lowest position
after approx. 2 seconds (threading
position).
Fig. 71: operating position
Fig. 72: threading position
• Swing up the needle flap on the
side
• Pull the wire end out to the front
from the centre of the lower wire
reel and carefully straighten the
first 30 cm.
04/2015 S. 44
