Constructive description
5.4. Electrical system
A three‐phase power supply (400 V, 50 Hz)
is required on site for installing the
machine. The specific connection values
can be found in the chapter "Technical
data".
The "Electric System" module controls the
machine and supplies it with electric
energy. The processing time of the plant
and/or the bale length may be selected
freely within pre‐set limits. Further
information can be found in chapter 6
"Operation".

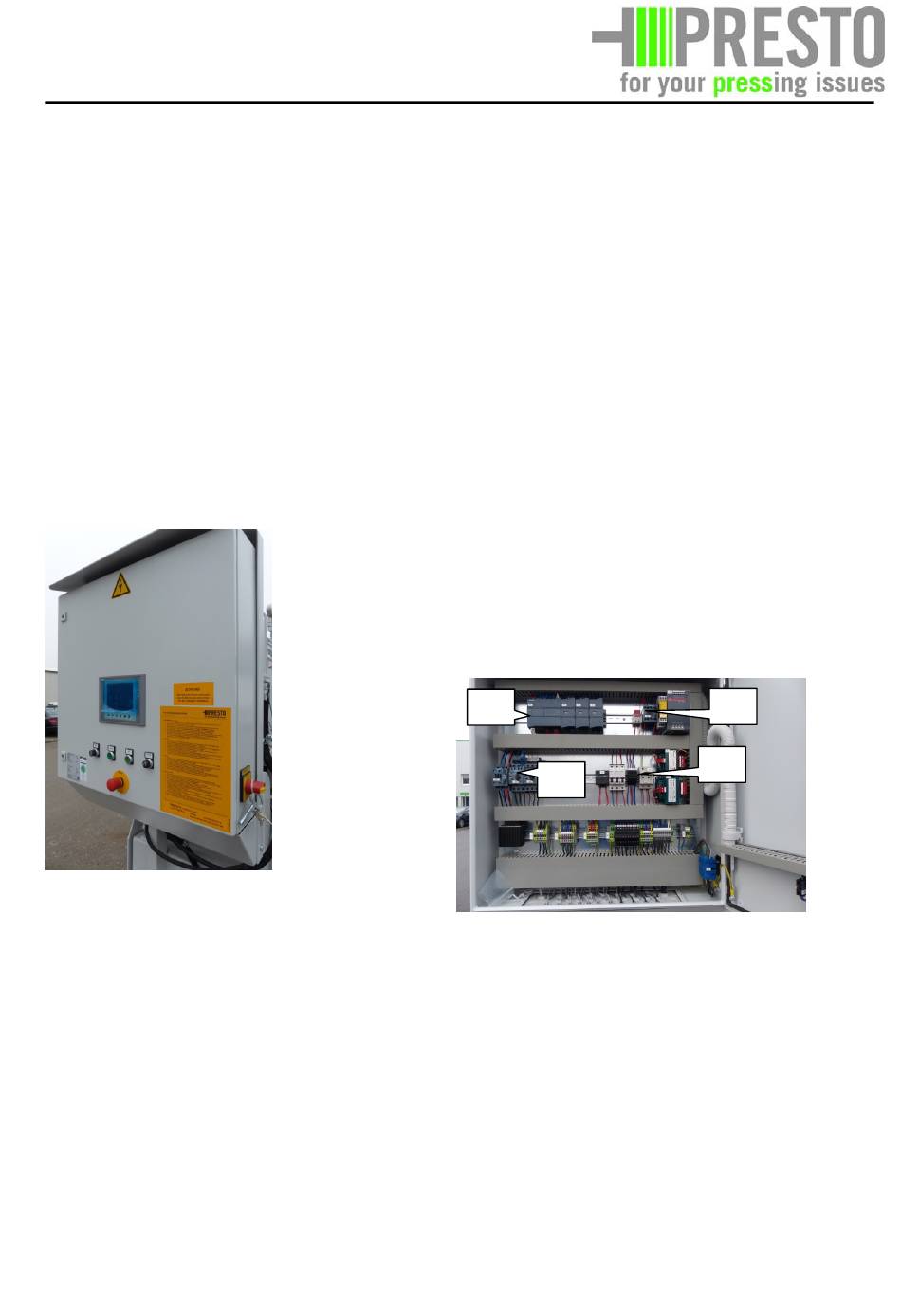

Fig. 48: switchgear box
The module "Electric" essentially consists
of the following components:
Switchgear box (1)
with relay (2)
motor circuit breaker (3), fuses (4)
programmable logic controller (5)
and wiring,
• emergency push‐button
• electrical motor at the unit
• light barrier
• safety switch
knotting hood
04/2015 S. 36
• inductive limit switches
press in front
press rear
needle bottom (right)
needle bottom (left)
needle at top (right)
twister
bale length
• signaller oil temperature /lack of oil
• On funnel extensions:
Light barrier level control
safety switch revision door at the
funnel
• For ramp funnels
Ripcord
Safety bar as the case may be
• heating for switch gear box optional
Optionally switch gear boxes can be fitted
with an automatic heating which also
ensures trouble‐free operation in winter.
5
3
Fig. 49: switchgear box (inside)
The built‐in motor circuit breaker protects
the electrical system and switches off
when overloaded. The setting (H=Manual)
of the motor circuit breaker must not be
changed. If the motor circuit breaker has
tripped, it can be reset after a short time
using the "RESET" key (20). The machine is
then ready to operate again.
