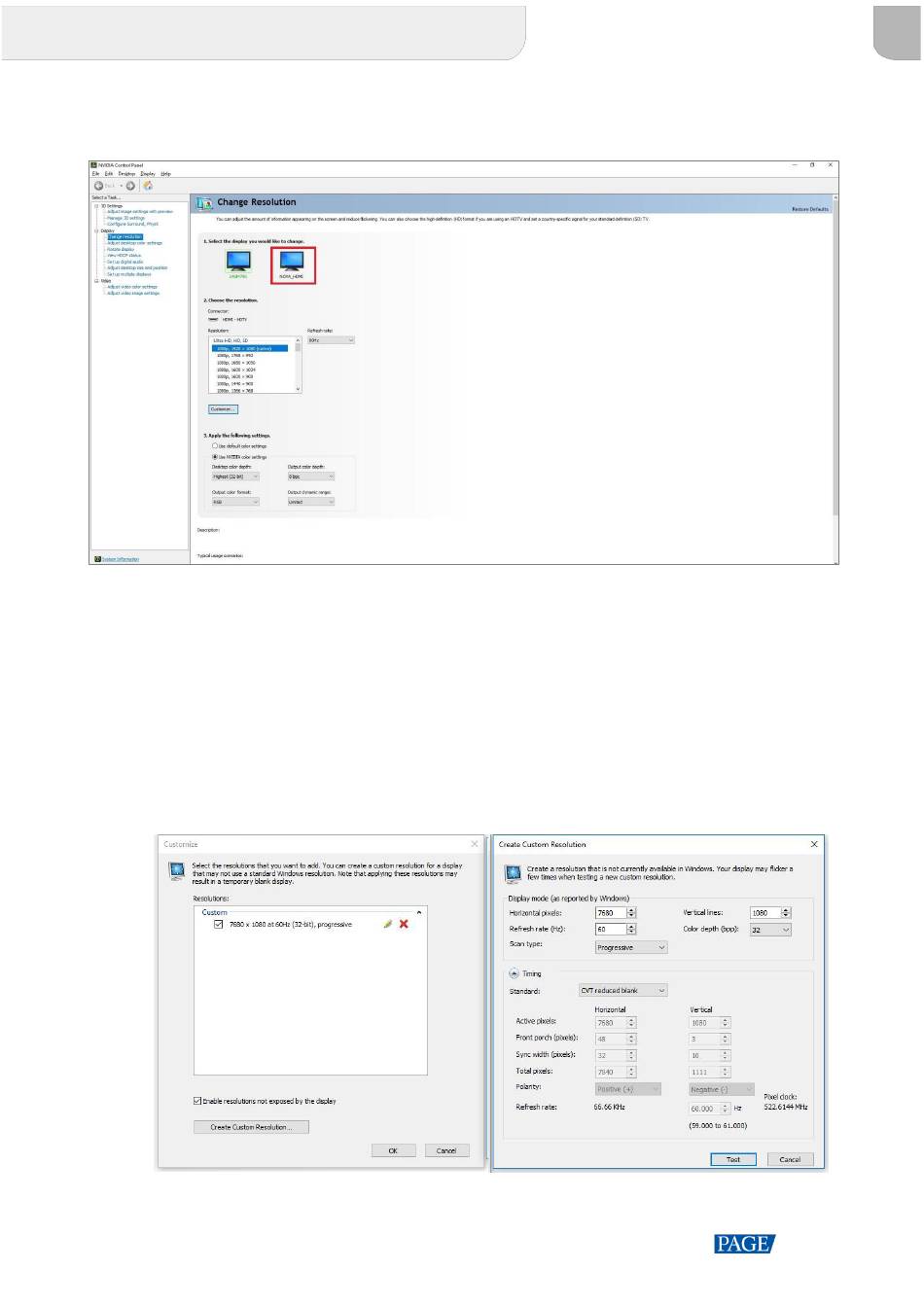

Figure 6-2 Changing resolution
Step 4 Under 2. Apply the following settings, click Customize. In the Customize dialog box that appears, click
Create Custom Resolution. In the Create Custom Resolution dialog box that appears, set the parameters.

When you set the timing standard to Manual, use the MCTRL4K Ultra-High Resolution Settings
Generator (Rev 1.1) to calculate the parameters, including active pixels, front porch (pixels), sync width
(pixels), polarity, total pixels and refresh rate. Then enter the parameter values manually. Note that the
pixel clock must not be greater than 595.0 MHz.
 When you set the timing standard to CVT reduced blank, the software will calculate the parameters
automatically and they cannot be changed manually.
Figure 6-3 Creating custom resolution
