Step 5 Click Test. In the displayed dialog box indicating the test is successful, click Yes to save the custom resolution.

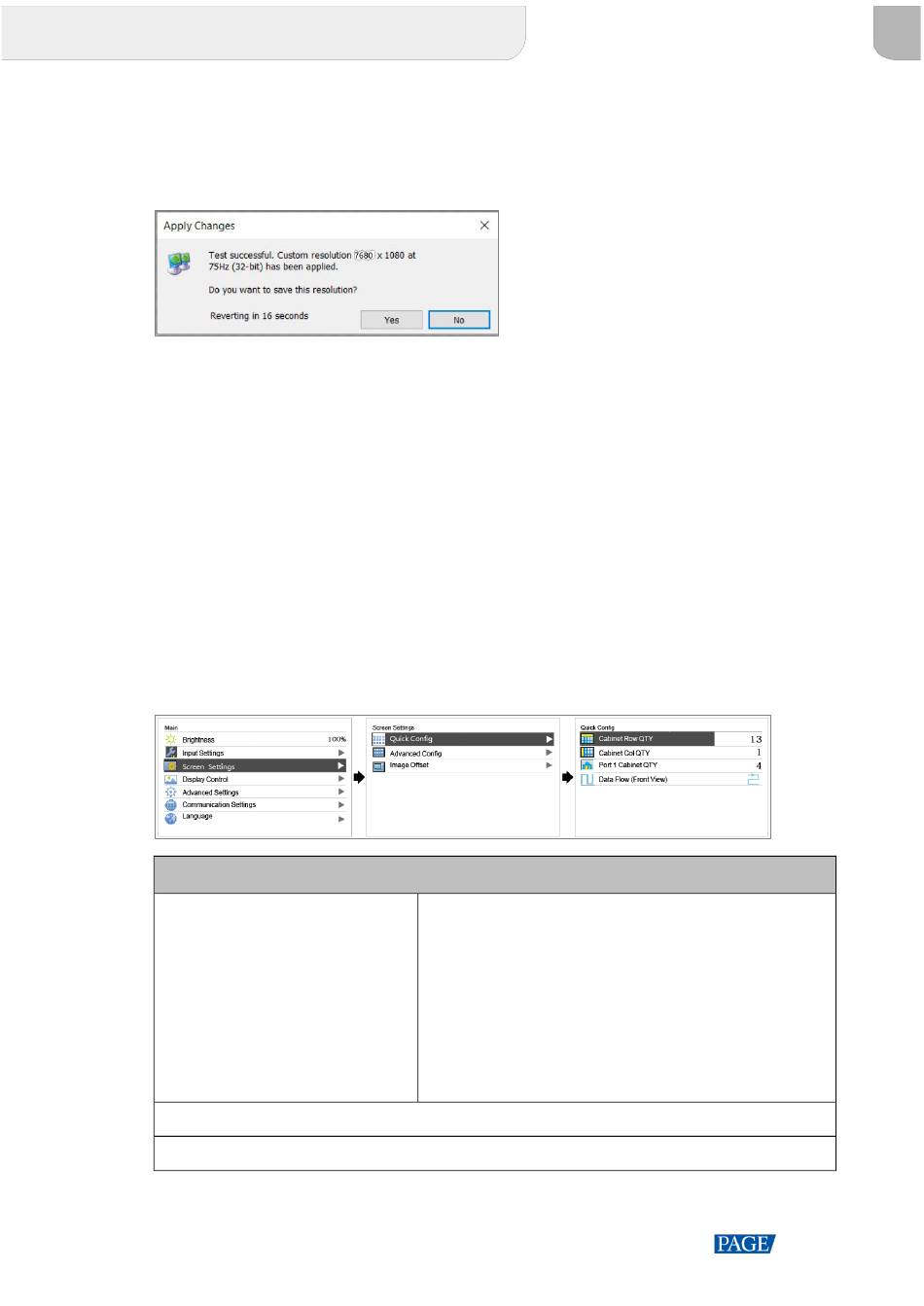

Figure 6-4 Applying changes

6.1.3 Step 3: Quickly Configure the Screen

Follow the steps below to complete quick screen configuration.
Step 1 On the home screen, press the knob to enter the main menu.
Step 2 Choose Screen Settings > Quick Config to enter its submenu and set the parameters.
 Set Cabinet Row QTY and Cabinet Col QTY (numbers of cabinet rows and columns to be loaded)
according to the actual situation of the screen.
 Set Port1 Cabinet QTY (number of cabinets loaded by Ethernet port 1). The device has restrictions on
the number of cabinets loaded by the Ethernet ports. For details, see Note a).

Set Data Flow (Front View) of the screen. For details, see Note c), d), and e).
Figure 6-5 Quick configuration
Note:
a). If n ports are used to load the
screen, the number of cabinets loaded
by each of the first (n–1) ports must be
the same and the integral multiple of
the number of cabinet rows or columns,
and it must be greater than or equal to
the number of cabinets loaded by the
last port.
b). For irregular screens, NovaLCT software must be connected to configure the screen.
c). During data flow settings, you can rotate the knob to select a target data flow pattern.
www.novastar.tech
MCTRL4K LED Display Controller User Manual
Example:
If all the 16 Ethernet ports are used to load the screen, the
number of cabinets loaded by ports 1–15 must be the same and
the integral multiple of the number of cabinet rows or columns.
Therefore, you need to set only the number of cabinets loaded
by port 1 according to the actual situation. The number of
cabinets loaded by port 16 must be less than or equal to the
number of cabinets loaded by port 1.
