Appearance

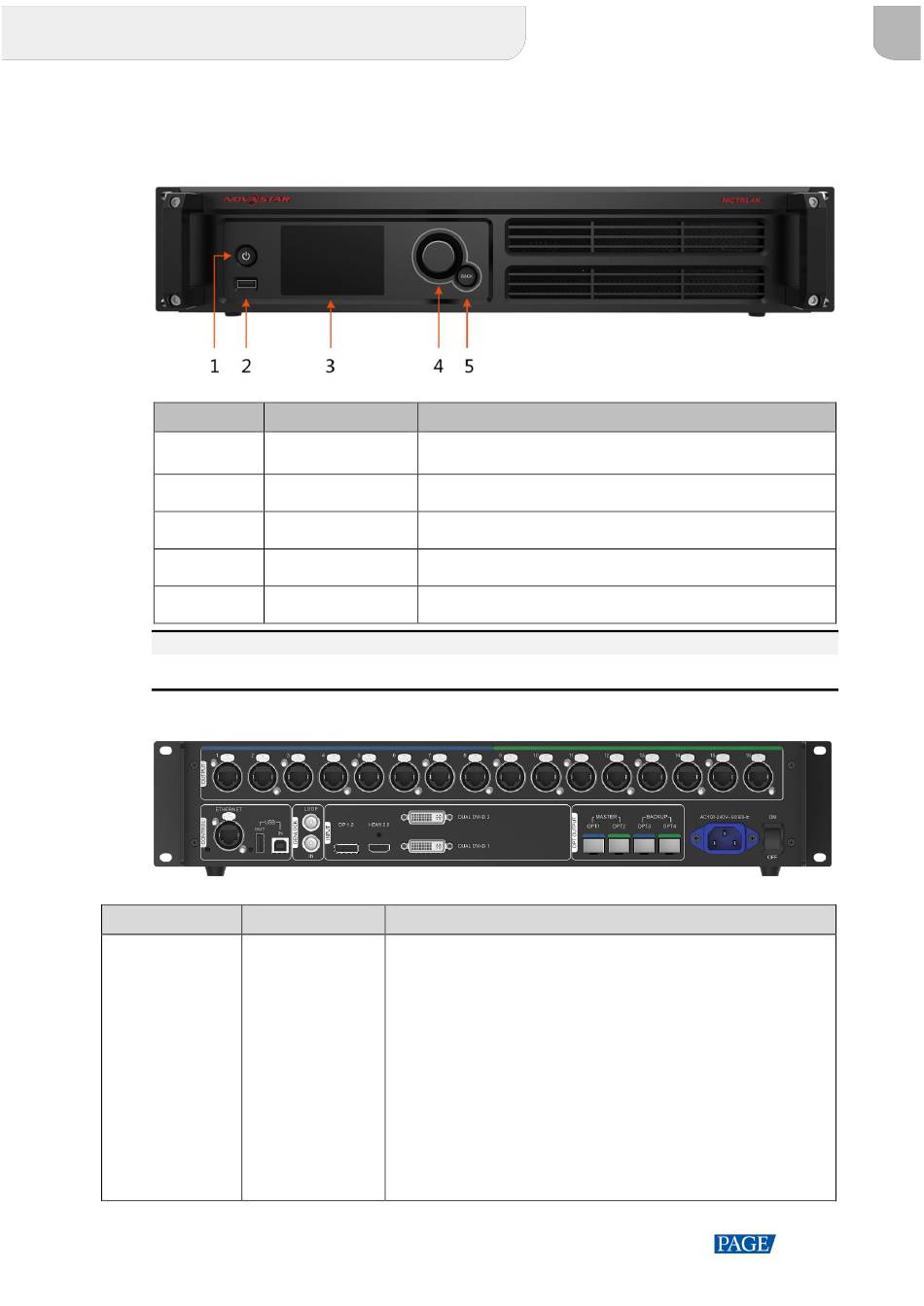

Front Panel
No.
1
2
3
4
5
Note
Hold down the knob and Back button simultaneously for 5s or longer to lock or unlock the front panel buttons.
Rear Panel
Connector Type Connector Name
Input DP 1.2
www.novastar.tech
Button/Connector Description
Power button Power on or off the device.
USB Connect to a USB drive.
LCD screen Display the device status, menus, submenus and messages.
Knob
Select menus, adjust parameters, and confirm operations.
BACK Go back to the previous menu or exit the current operation.
Description
1x DP 1.2

Supported maximum resolution: 4096×2160@60Hz, supported
minimum resolution: 640×480@24Hz

Custom resolutions supported
Maximum width: 7680 pixels (7680×1080@60Hz)
Maximum height: 7680 pixels (1080×7680@60Hz)

HDCP 1.3 compliant

Supported standard resolutions:
1280×1024@(24/25/30/48/50/60/72/75/85/100/120)Hz
1366×768@(24/25/30/48/50/60/72/75/85/100/120)Hz
1440×900@(24/25/30/48/50/60/72/75/85/100/120)Hz
1600×1200@(24/25/30/48/50/60/72/75/85/100/120)Hz
