EAS20298

LUBRICATION SYSTEM CHART AND DIAGRAMS

EAS32362

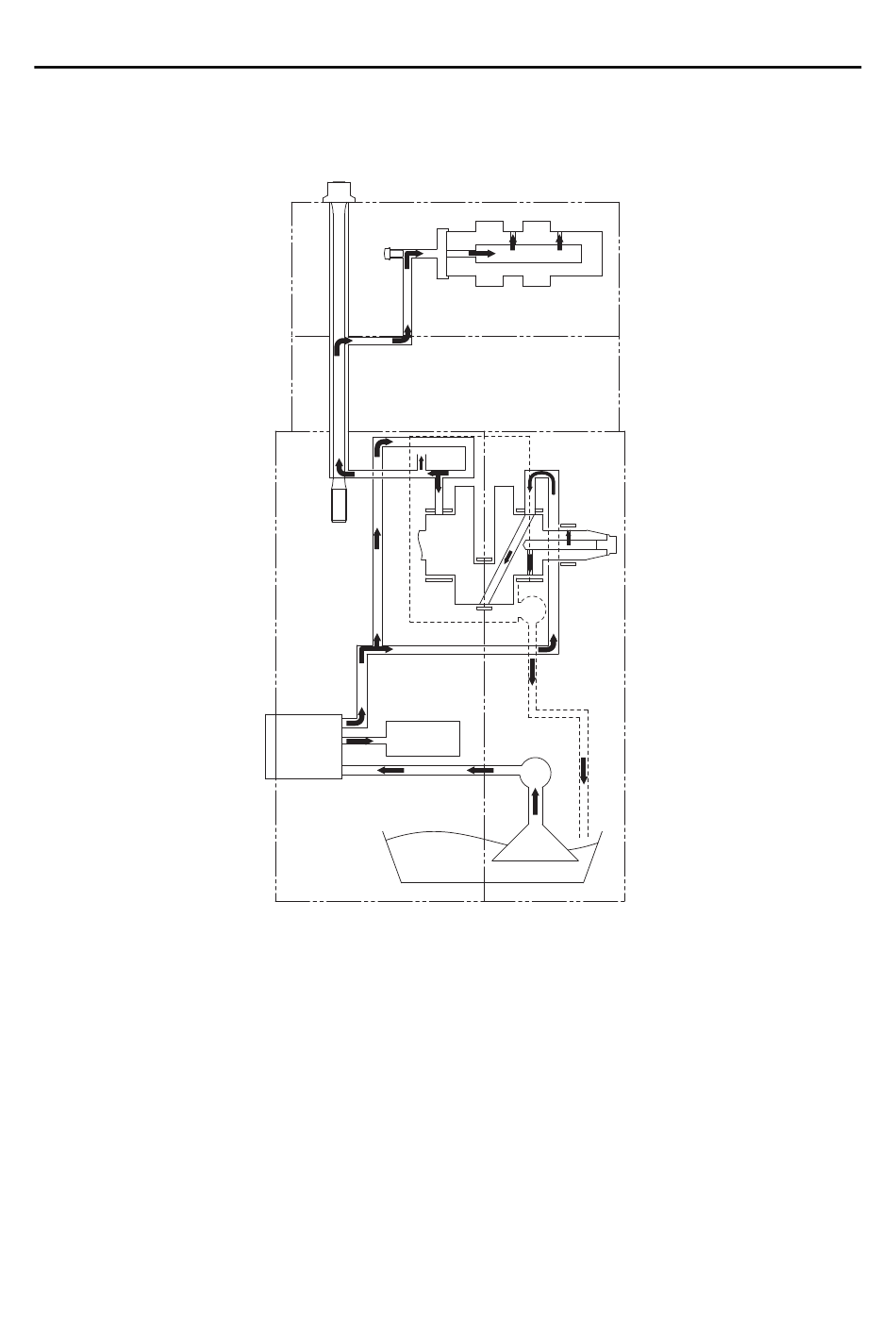

ENGINE OIL LUBRICATION CHART

1. Oil strainer
2. Oil pump (feed)
3. Oil filter element
4. Relief valve assembly
5. Main gallery
6. Crankshaft
7. To piston
8. Camshaft
9. Oil pump (scavenge)
10. Crankcase (left)
11. Crankcase (right)
12. Cylinder
13. Cylinder head
LUBRICATION SYSTEM CHART AND DIAGRAMS
13
12
3
10
8
7
6
9
5
4
2
1
5-1
11
