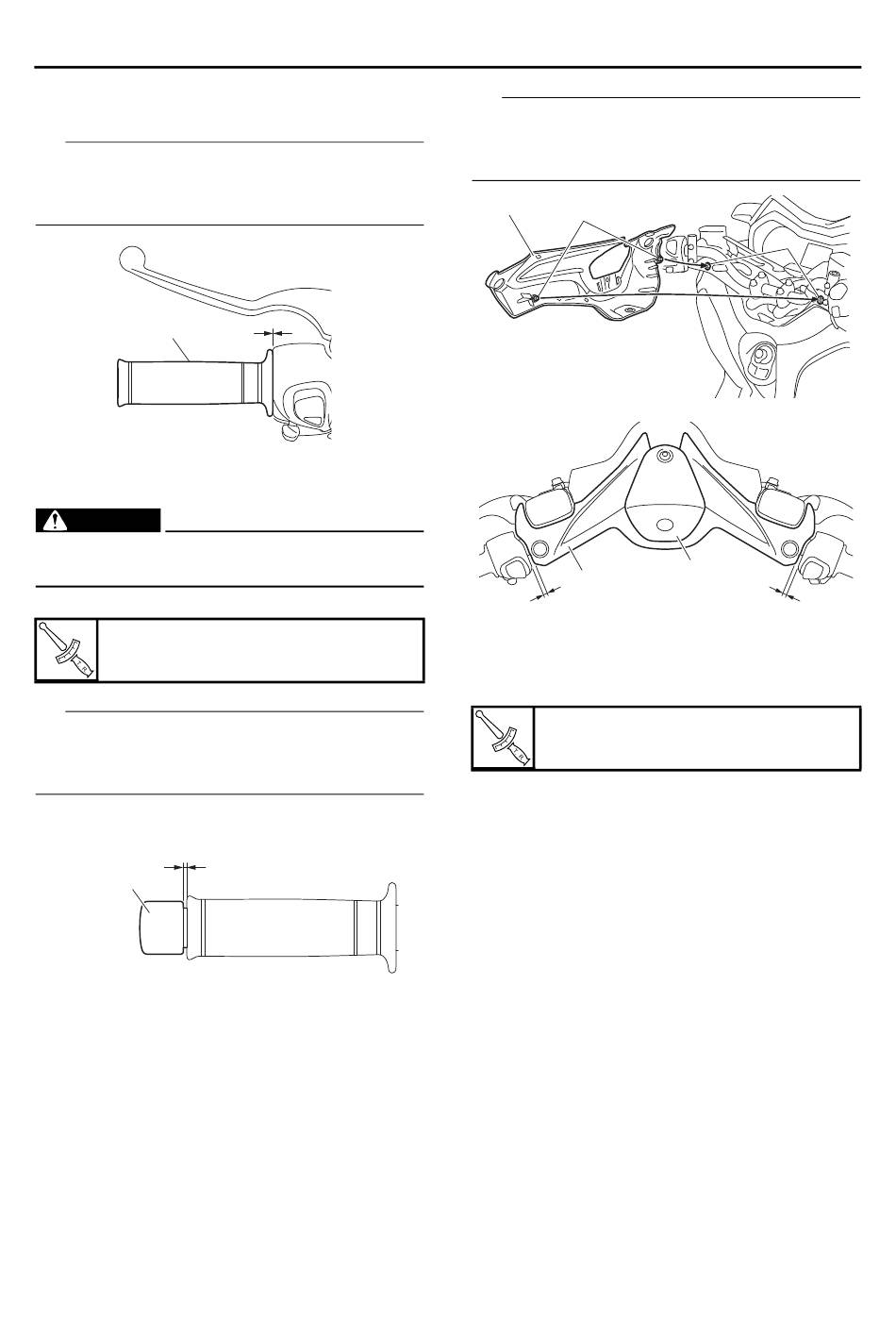

b. Slide the handlebar grip over the left end
of the handlebar.
TIP
Make sure that the distance "a" between the end
of the left handlebar switch and the end of the
handlebar grip is 0 mm (0 in).
1
c. Wipe off any excess rubber adhesive with
a clean rag.
EWA13700
WARNING
Do not touch the handlebar grip until the rub-
ber adhesive has fully dried.
d. Install the left grip end.
Grip end bolt (left)
7 N·m (0.7 kgf·m, 5.2 lb·ft)
TIP
There should be 1.0–5.0 mm (0.04–0.20 in) of
clearance "a" between the handlebar grip and
the grip end.
a
2
EAS32356
INSTALLING THE UPPER HANDLEBAR
COVER
1. Install:
• Upper handlebar cover "1"
• Upper handlebar panel "2"
a. Fit the projections "a" on the upper handle-
bar cover into the holes "b" in the lower
handlebar cover.
a
4-77
TIP
There should be 0.5–4.0 mm (0.02–0.16 in) of
clearance "c" between the upper handlebar cov-
er and handlebar switch.
1
a
1
c
b. Install the quick fasteners and upper han-
dlebar cover screws, and then tighten the
screws to specification.
Upper handlebar cover screw
1.8 N·m (0.18 kgf·m, 1.3 lb·ft)
HANDLEBAR
b
2
