EAS32308

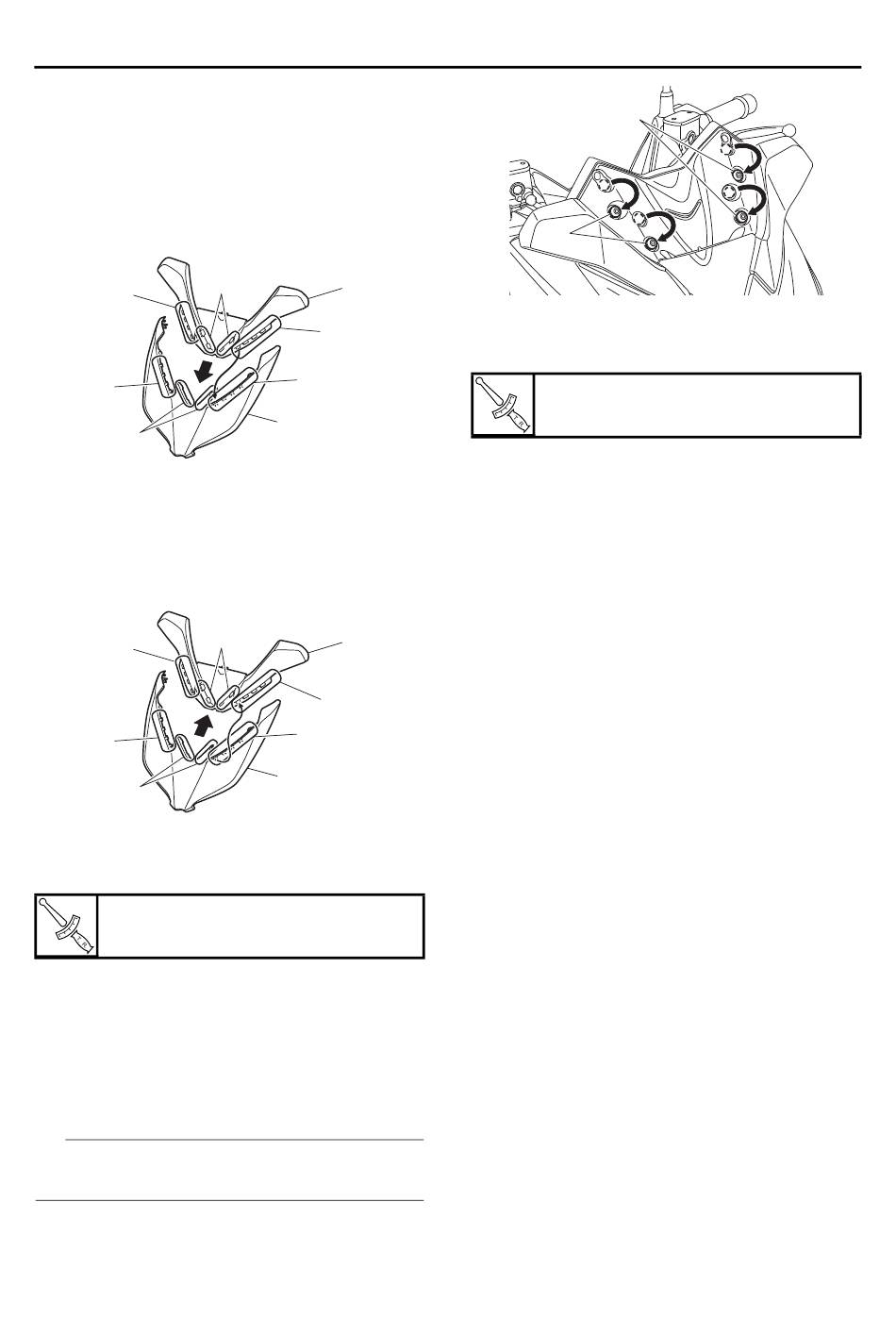

DISASSEMBLING THE BATTERY COVER
ASSEMBLY
1. Remove the battery cover screws and quick
fastener.
2. Remove the projections "a" on the battery
front cover "1" from the holes "b" in the battery
rear cover "2".
b
a
a
EAS32309
ASSEMBLING THE BATTERY COVER
ASSEMBLY
1. Fit the projections "a" on the battery front cov-
er "1" into the holes "b" in the battery rear cov-
er "2".
b
a
a
2. Install the battery cover screws and quick fas-
tener, and then tighten the screws to specifi-
cation.
Battery cover screw
1.8 N·m (0.18 kgf·m, 1.3 lb·ft)
EAS31397

ADJUSTING THE WINDSHIELD HEIGHT

1. Remove:
• Windshield covers
• Windshield
2. Adjust:
• Windshield height position
TIP
Remove the bolts, and then install the bolts "1"
in the desired position.
b
2
b
a
1
b
2
b
a
1
GENERAL CHASSIS (1)
1
3. Install:
• Windshield
• Windshield covers
Windshield screw
0.5 N·m (0.05 kgf·m, 0.37 lb·ft)
4-3
