page 24 of 54

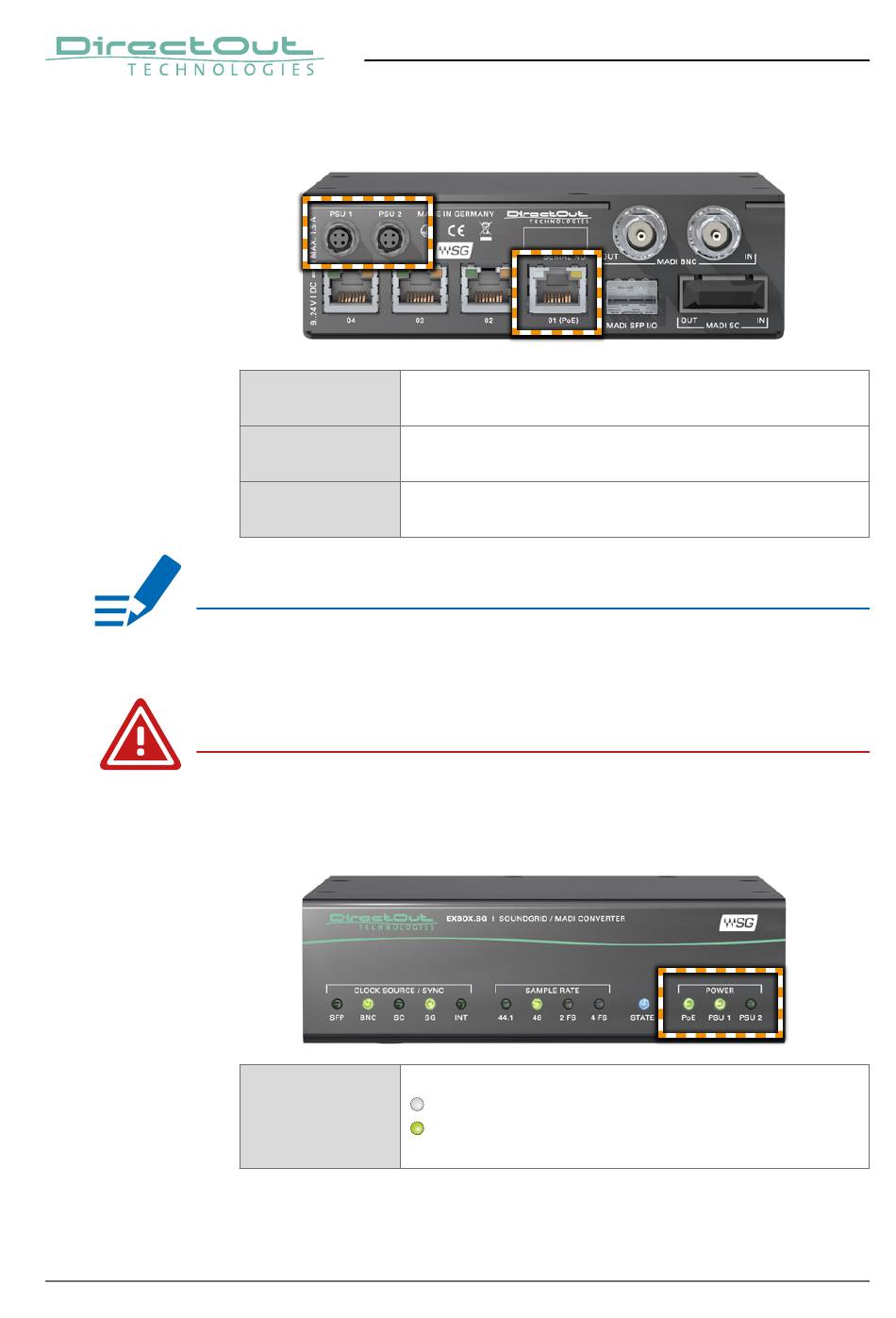

Global Control
PSU 1
PSU 2
01 (PoE)
NOT E
The device does not provide a power switch. Connecting a working power supply
to the device will power up the device immediately.
WARN ING !
Never connect a PoE link to a network interface that is not marked explictly for PoE
operation. The voltage supplied there may damage the interface.
POWER
PSU 1
PSU 2
PoE
Hirose socket
Connect the power supply here (9 - 24 V DC).
Hirose socket
Connect the power supply here (9 - 24 V DC).
RJ45 socket
Connect PoE link here. PoE Class 0 / 0.4 - 13 W
LED green - indicates state of power supply
(OFF) = power supply not working
(ON) = power supply working
CHAPTER 4: Operation
EXBOX.SG Manual - Version 1.0
