DirectOut Technologies MADI.SRC User Manual

Hide thumbs Also See for MADI.SRC:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
®
DirectOut Technologies
MADI.SRC
Manual
Version 1.4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MADI.SRC and is the answer not in the manual?

Questions and answers

Related Manuals for DirectOut Technologies MADI.SRC

Summary of Contents for DirectOut Technologies MADI.SRC

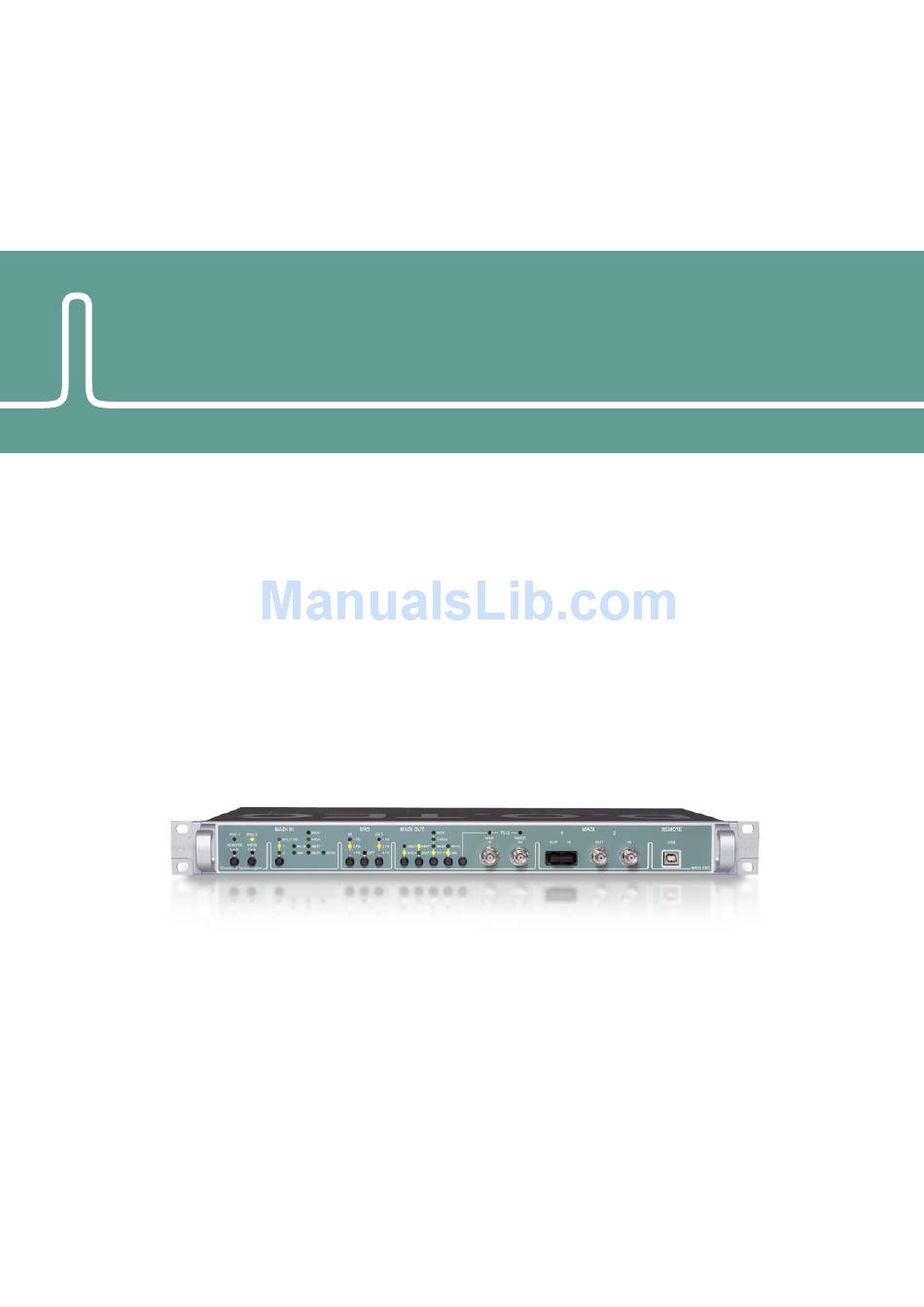

  • Page 1 ® DirectOut Technologies MADI.SRC Manual Version 1.4...
  • Page 2 DirectOut GmbH cannot be held responsible for any misleading or in- correct information provided throughout this manual. DirectOut GmbH reserves the right to change specifications at any time without notice. DirectOut Technologies® and D.O.TEC® are registered trademarks of the DirectOut GmbH. © DirectOut GmbH, 2014 page 2 of 7 MADI.SRC Manual - Version 1.4...

  • Page 3: Table Of Contents

    Example 1: Independent Clock Sources Example 2: Archiving / Remixing ChAPtER 5: tRoublEshooting And MAintEnAnCE Troubleshooting Maintenance ChAPtER 6: tEChniCAl dAtA APPEndix A: CloCking to MAdi indEx © 2014 DirectOut GmbH MADI.SRC Manual - Version 1.4 page 3 of 7...

  • Page 4: About This Manual

    – indicate useful tips and shortcuts. notes – are used for important points of clarification or cross refer- ences. warning Warnings – alert you when an action should always be observed. page 4 of 7 MADI.SRC Manual - Version 1.4 © 2014 DirectOut GmbH...

  • Page 5: Chapter 1: Overview

    Welcome to the MADI.SRC, DirectOut’s purpose designed solution for real-time sample rate conversion of a MADI signal: The MAdi.sRC enables real time sample rate conversion of a com- plete MADI stream (64 audio channels). The device includes 32 high quality stereo sample rate converters (SRCs), and supports all source and destination sample rates from 44.1 kHz to 192 kHz, for...

  • Page 6: Feature Summary

    Power supply This device is equipped with two wide range power supplies (84 V to 264 V AC / 47 Hz to 63 Hz / safety class 1). page 6 of 7 MADI.SRC Manual - Version 1.4 © 2014 DirectOut GmbH...

  • Page 7: Applications

    DirectOut Technologies CHAPTER 1: Overview Applications The MADI.SRC may be used wherever high quality sample rate conversion is required. The data stream is processed in real time and all output channels are phase and sample accurate with refer- ence to each other.

  • Page 8: Chapter 2: Legal Issues & Facts

    See „CHAPTER 5: Troubleshooting and Maintenance“ on page 32 for assistance with troubleshooting. page 8 of 40 MADI.SRC Manual - Version 1.4 © 2014 DirectOut GmbH...

  • Page 9: First Aid (In Case Of Electric Shock)

     Lay the body down and turn it to one side. Call for a doc- tor immediately. • Having sustained an electric shock, ALWAYS consult a doc- tor. © 2014 DirectOut GmbH MADI.SRC Manual - Version 1.4 page 9 of 40...

  • Page 10: Updates

    DirectOut website: www.directout.eu. This document refers to fi rmware version 2.2 intended operation The MADI.SRC is designed for conversion of format and sample rate of MADI signals ( AES10). warning No compensation can be claimed for damages caused by operation of this unit other than for the intended use described above.

  • Page 11: Conformity & Certificates

    Phone: +49 (0)3727 99697-50 // Fax: +49 (0)3727 99697-52 www.directout.eu Manufacturer: IMM Elektronik GmbH, Leipziger Str. 32, 09648 Mittweida, Germany Phone: +49 (0)3727 6205-0 // Fax: +49 (0)3727 6205-56 www.imm-gruppe.de © 2014 DirectOut GmbH MADI.SRC Manual - Version 1.4 page 11 of 40...

  • Page 12: Contents

    ® DirectOut Technologies CHAPTER 2: Legal issues & facts Contents The contents of your MADI.SRC package should include: • 1 x MADI.SRC (19’’, 1 RU) • 2 x power chord • 2 x fixing unit for power plug • 1 x Manual page 12 of 40 MADI.SRC Manual - Version 1.4...

  • Page 13: Installing The Device

    Connect the MADI and clock signals to the device: • MADI 1 IN/OUT – optical connectors • MADI 2 IN/OUT – coaxial connectors • WCLK IN – BNC connector • VIDEO IN – BNC connector © 2014 DirectOut GmbH MADI.SRC Manual - Version 1.4 page 13 of 40...
  • Page 14 PSU 2 to independent power supplies with separate fuses. Turn on the power switches for each supply and check the status of PSU 1 and PSU 2 on the front panel: page 14 of 40 MADI.SRC Manual - Version 1.4 © 2014 DirectOut GmbH...
  • Page 15 • follow the installation instructions in the ‘Installation Guide for USB Control’ Keep any packaging in order to protect the device should it need to be dispatched for service. © 2014 DirectOut GmbH MADI.SRC Manual - Version 1.4 page 15 of 40...

  • Page 16: Chapter 3: Operation

    Once you have confi gured the device, use REMOTE Lock to protect the device from unwanted remote operation, or KEYS Lock to lock out operation from the front panel controls. page 16 of 40 MADI.SRC Manual - Version 1.4 © 2014 DirectOut GmbH...

  • Page 17: Madi In

    For example, if the input sample rate is 96 kHz (2 FS), then the 48 k LED is lit. © 2014 DirectOut GmbH MADI.SRC Manual - Version 1.4 page 17 of 40...
  • Page 18 (SRC OFF). (In Split Mode, a fl ashing led indicates that MADI inputs 1 and 2 are not in sync with each other.) See „Appendix A: Clocking to MADI“ on page 36. page 18 of 40 MADI.SRC Manual - Version 1.4 © 2014 DirectOut GmbH...

  • Page 19: Src

    (green), 2 FS (yellow) or 4 FS (white). Also note that if the Auto Clock Range Select option is active, the scaling factor will follow the word clock or AES3id signal (see page 29). © 2014 DirectOut GmbH MADI.SRC Manual - Version 1.4 page 19 of 40...
  • Page 20 „MADI IN“ on page 17. The SRC processing delay amounts to about 2.5 ms. The delay is equal for every channel; there is no change in phase between channels. page 20 of 40 MADI.SRC Manual - Version 1.4 © 2014 DirectOut GmbH...

  • Page 21: Madi Out

    • MAdi: MADI input signal (AES10) • int: internal clock; the MADI.SRC is the clock master. Note that the output base rate (44.1 k or 48 k) is defined automati- cally by the word clock or MADI input signal if the clock source is set to wClk or MAdi respectively.
  • Page 22 LED blinking heartbeat (only LED <MADI>) = Sync to unselected MADI input and signal present at both inputs. See „Appendix A: Clocking to MADI“ on page 36. page 22 of 40 MADI.SRC Manual - Version 1.4 © 2014 DirectOut GmbH...
  • Page 23 LED 44.1k ON = base rate is set to 44.1 kHz LED 48k ON = base rate is set to 48 kHz See „Appendix A: Clocking to MADI“ on page 36. © 2014 DirectOut GmbH MADI.SRC Manual - Version 1.4 page 23 of 40...
  • Page 24 To update the fi rmware an installed USB serial driver (Windows) and the Update Tool are necessary. The software and the installation in- structions are available at www.directout.eu. page 24 of 40 MADI.SRC Manual - Version 1.4 © 2014 DirectOut GmbH...

  • Page 25: Rear Panel

    2 sockets Connect the power supply here (84V – 264V). fuses 2 fuses 2 x 2A slow-blow on/off switches 2 switches Enable / disable power supply © 2014 DirectOut GmbH MADI.SRC Manual - Version 1.4 page 25 of 40...

  • Page 26: Chapter 4: Operating Modes

    Chapter 4: Operating Modes Chapter 4: operating Modes introduction The MADI.SRC provides two operating modes: • In Normal Mode one input is used and both outputs operate in parallel. • In Split Mode both inputs and outputs are combined in order to take optimal advantage of the SRCs available.

  • Page 27: Normal Mode

    In Normal Mode only one MADI input can be used at a time and both outputs transmit identical signals in parallel. The MADI.SRC automatically detects the sample rate (base rate) and frame format of the MADI input signal. The detected base rate may then be multiplied by a scaling factor of 1, 2 or 4 resulting in the following sample rates: • 44.1 kHz (1 FS), 88.2 kHz (2 FS), 176.4 kHz (4 FS)

  • Page 28: Split Mode

    2 channels is unaffected (e.g. 2 FS to 1 FS: at output 2, channels 01-32 are empty (Input 1) and channels 33-64 active (Input 2). page 28 of 40 MADI.SRC Manual - Version 1.4 © 2014 DirectOut GmbH...

  • Page 29: Auto Clock Range Select (Acrs)

    Normally, the scaling factor of the base sample rate (1 FS, 2 FS or 4 FS) is defined manually for input and output from the SRC con- trols. However, the MADI.SRC offers an option to switch the output scaling factor automatically – Auto Clock Range Select (ACRS).

  • Page 30: Chapter 5: Application Examples

    Chapter 5: Application Examples Chapter 5: Application Examples introduction This chapter describes how the MADI.SRC device can be used. Example 1: independent Clock sources At a music festival, the OB Van (recording) and FOH (Front of House) require independent clock references such that the FOH can use a “closed”...

  • Page 31: Example 2: Archiving / Remixing

    The coaxial output of the DASH machine feeds into input 2 of the MAdi.sRC. The MADI.SRC is set to operate in Split Mode, with MADI input 2 selected. This allows two MADI signals to be processed, expanding the bandwidth by a factor of two.

  • Page 32: Chapter 5: Troubleshooting And Maintenance

    Signal of input 2 is Check the input signal source IN) is flashing. not in sync with input 1 (Split Mode). disconnect input 1 disconnect input 2. page 32 of 40 MADI.SRC Manual - Version 1.4 © 2014 DirectOut GmbH...

  • Page 33: Maintenance

    To clean the device, use a soft, dry cloth. To protect the surface, avoid using cleaning agents. The device should be disconnected from the power supply during the cleaning process. © 2014 DirectOut GmbH MADI.SRC Manual - Version 1.4 page 33 of 40...

  • Page 34: Chapter 6: Technical Data

    • 1 x BNC socket (75 Ω impedance) - input • Termination 75 Ω switchable • Black Burst or FBAS (PAL 25 Hz, NTSC 29.97 Hz or 30 Hz) page 34 of 40 MADI.SRC Manual - Version 1.4 © 2014 DirectOut GmbH...

  • Page 35: Sample Rate

    • 56 channel, 64 channel • SMUX 2/4 Cable Specifications • coaxial cable - impedance 75 Ω, screening attenuation better than 85 dB • 1 x USB socket (Type B) © 2014 DirectOut GmbH MADI.SRC Manual - Version 1.4 page 35 of 40...

  • Page 36: Appendix A: Clocking To Madi

    Clocking to MADI input is useful when the clock should be main- tained while the scaling factor changes; e.g. down sampling from 96 kHz to 48 kHz. page 36 of 40 MADI.SRC Manual - Version 1.4 © 2014 DirectOut GmbH...
  • Page 37 Clocking to the unselected MADI input enables the use of the sec- ond MADI input as clock source. This is useful to retrieve sync from the device receiving the SRC signal. © 2014 DirectOut GmbH MADI.SRC Manual - Version 1.4 page 37 of 40...

  • Page 38: Index

    Channel format: output WEEE See Conformity & Certificates: WEEE Fuses ___________________________ 34 Word Clock ______________________ 34 Input select ______________________ 17 Installation _______________________ 13 Intended operation ________________ 10 page 38 of 40 MADI.SRC Manual - Version 1.4 © 2014 DirectOut GmbH...
  • Page 39 ® DirectOut Technologies Notes © 2014 DirectOut GmbH MADI.SRC Manual - Version 1.4 page 39 of 40...
  • Page 40 DirectOut GmbH Leipziger Strasse 32 T: +49-3727-99697-50 09648 Mittweida F: +49-3727-99697-52 Germany www.directout.eu...
