Input State / Clocking - DirectOut Technologies EXBOX.SG User Manual

Input State / Clocking

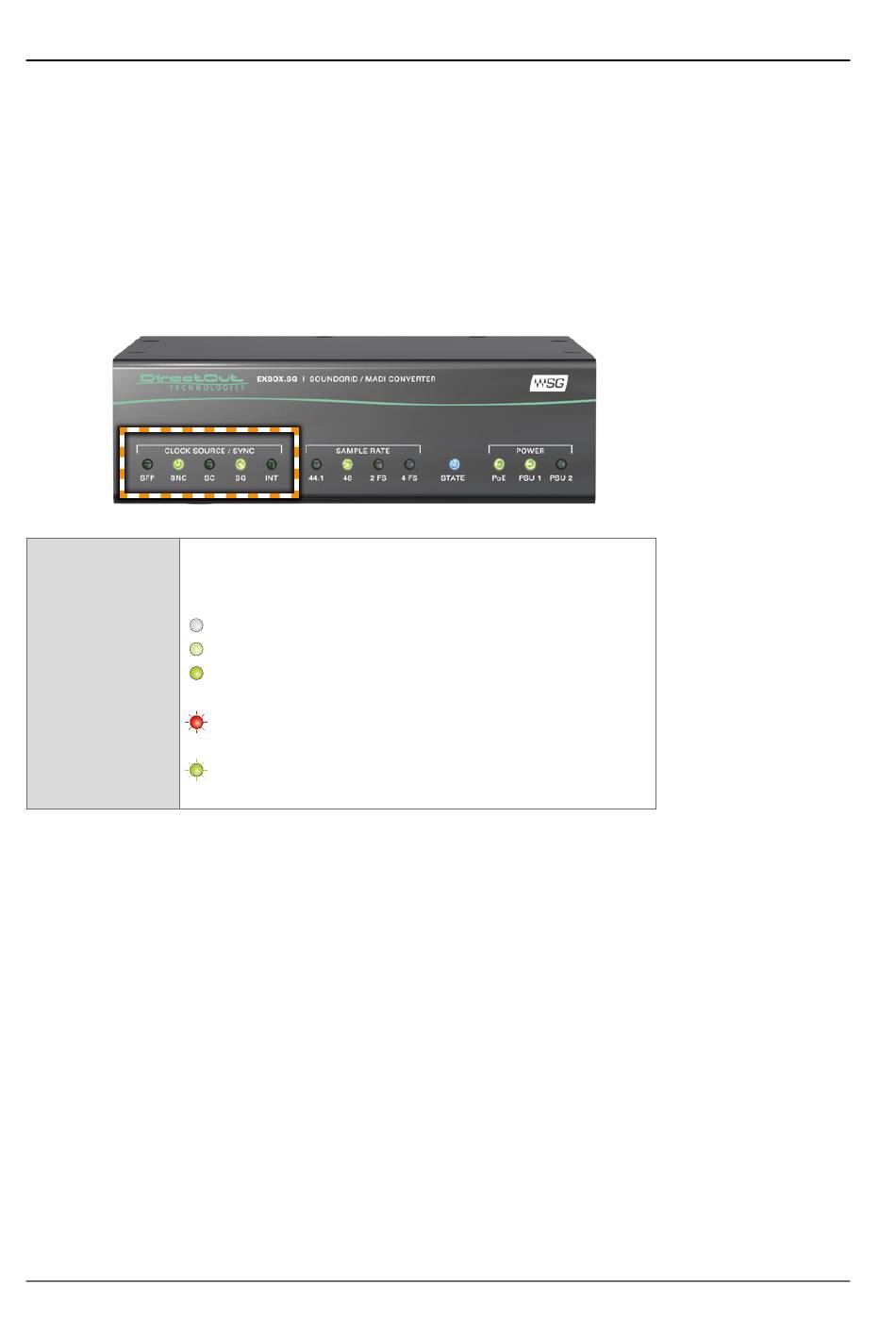

Five LEDs inform about the state of each signal input and the selected clock
source of the device.
The device ofers several options for clocking:
• Soundgrid (Sync over Ethernet = SoE)
• MADI input
• Word Clock (@ MADI BNC input)*
• internal clock generator
LED - indicates selected clock source and the lock
CLOCK SOURCE
/ SYNC / sync state of MADI input, SoE or the internal
SFP clock generator.
BNC*
SC
PTP
INT
* See "Clocking to word clock" on page 29
Clocking is set in:
• device control panel of Soundgrid - to adjust the Soundgrid part
• globcon - when dealing with external clock sources (MADI or input, Word
Clock input) or the internal clock generator of EXBOX.SG
EXBOX.SG Manual - Version 1.0
(OFF) = no signal lock
(50 % green) = signal lock, in sync
(100 % green) = signal lock, in sync, selected clock
source
(blinking red) = signal lock, not in sync with selected
clock source
(blinking green) = input selected as clock source and no
signal lock.
