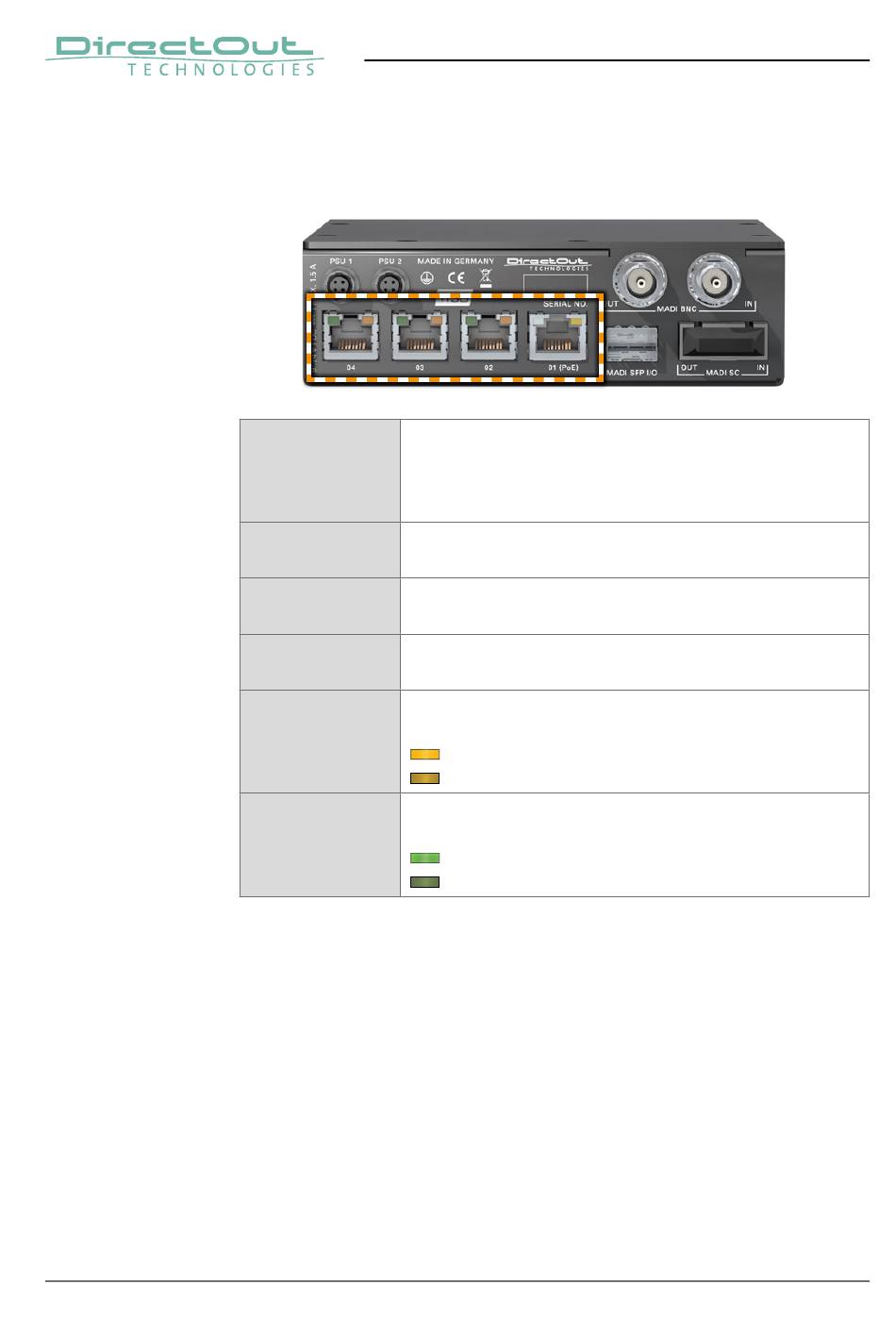

Input / Output - Network

Four network ports are available for transmission of audio signals and remote
control. Four network ports are connected with the built-in switch.
01 (PoE)
02
03
04
LED left
(Port 1 to 4)
LED right
(Port 1 to 4)
* Some possible reasons that lead to an inactive link:
• device switched off
• connected device switched off
• cabling issue
RJ45 socket (1 Gbit/s)
Network interface - connect here for network transmission.
This port accepts a PoE source for power supply - see page
24.
RJ45 socket (1 Gbit/s)
Network interface - connect here for network transmission.
RJ45 socket (1 Gbit/s)
Network interface - connect here for network transmission.
RJ45 socket (1 Gbit/s)
Network interface - connect here for network transmission.
LED orange - indicates the link state of the
network connection*.
(ON) = device link active
(OFF) = device link not active
LED green - indicates the activity state of the
network connection.
(ON) = data sent or received
(OFF) = no data transmission
