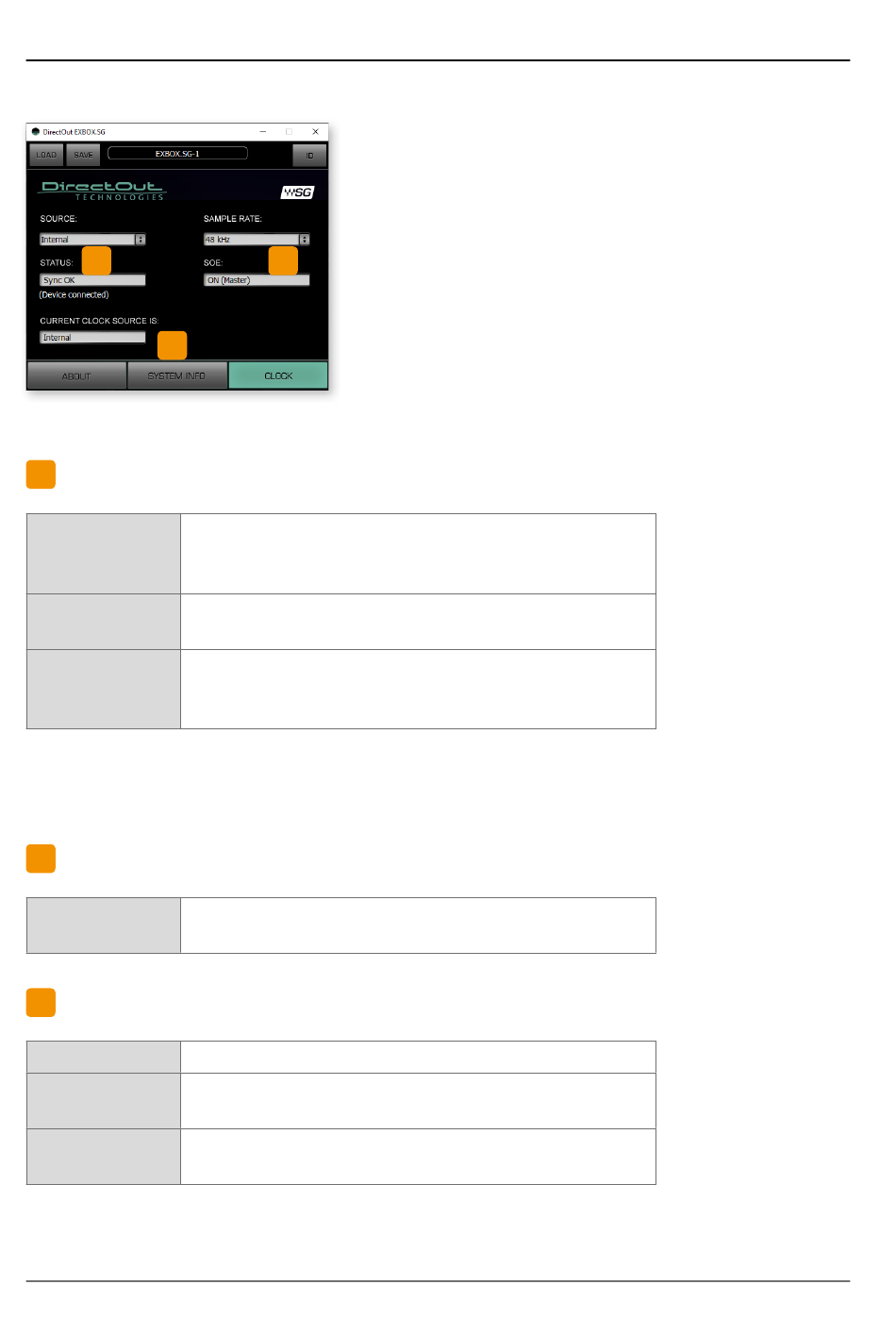

Tab 'CLOCK' to set and manage the clock source for the device.
1
SOURCE
Internal* Clock source is provided by the Soundgrid module of the
device and device acts as SoE clock master. Other devices
in the Soundgrid network will lock to it.
Sync over Clock source is provided by Soundgrid network. Device acts
Ethernet** as SoE slave.
Digital*** Clock source is provided by external sources of
EXBOX.SG (MADI input, Word Clock input) or
by the internal clock generator.
* available when device is SoE clock master
** available when device is SoE clock slave
*** clock source is set in globcon - see page 40.
2
SAMPLE RATE
Sample Rate Sets the sample rate when Clock Source is set to Internal.
Range: 44.1 / 48 / 88.2 / 96 kHz
3
CLOCK STATUS INDICATORS
STATUS Displays Sync state
SOE Displays state of Sync over Ethernet
(SoE master, slave or off).
CURRENT Displays current clock source. May differ from SOURCE
CLOCK SOURCE setting if selected source becomes invalid.
