Soundgrid Master
In setups with multiple Soundgrid devices the Soundgrid Master (SoE master)
is set manually in the SETUP of the host application (e.g. Soundgrid Studio). All
devices connected to the Soundgrid network will lock to the SoE master - see
"Clocking Soundgrid network" on page 33.
TI P
EXBOX.SG can be synced from a digital source (MADI, word clock or the internal
generator) and act as SoE master.
Clocking to word clock
The BNC MADI input also accepts a word clock signal according to AES11. The
operating mode of the BNC input is selected in globcon - see page 40.

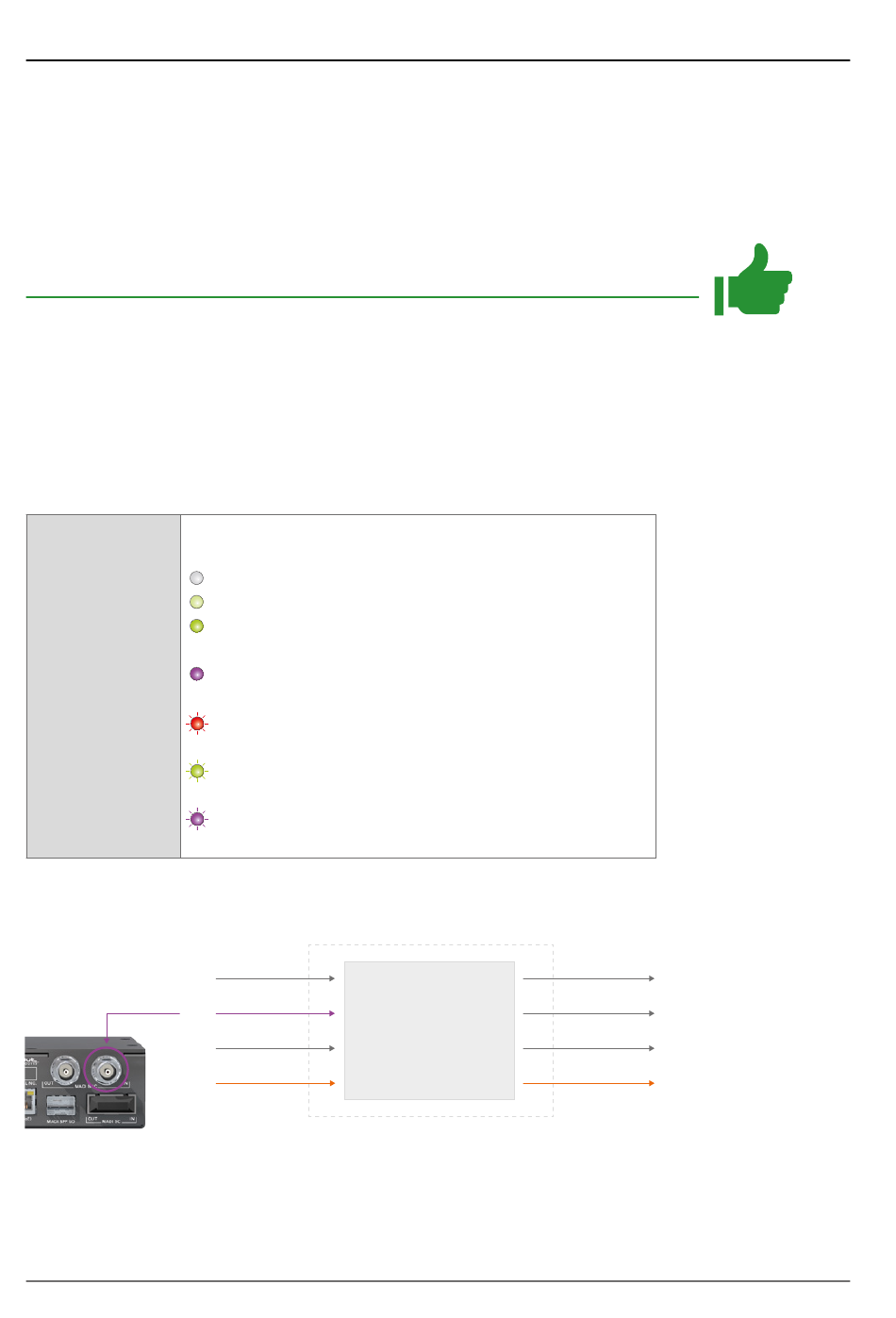

CLOCK SOURCE LED - indicates selected clock source and the lock
/ SYNC / sync state of MADI BNC / WCK input.
BNC
Independent from the operating mode of the MADI BNC input the MADI BNC
output does output a MADI signal.
WCK
EXBOX.SG Manual - Version 1.0
(OFF) = no signal lock
(50 % green) = signal lock, in sync
(100 % green) = signal lock (MADI),
in sync, selected clock source
(100 % purple) = signal lock (WCK),
in sync, selected clock source
(blinking red) = signal lock, not in sync with selected
clock source
(blinking green) = input selected as clock source
(MADI) and no signal lock.
(blinking purple) = input selected as clock source (WCK)
and no signal lock.
SFP
WCK
SC
EXBOX.SG
Soundgrid
SFP
BNC
Routing
SC
Soundgrid
