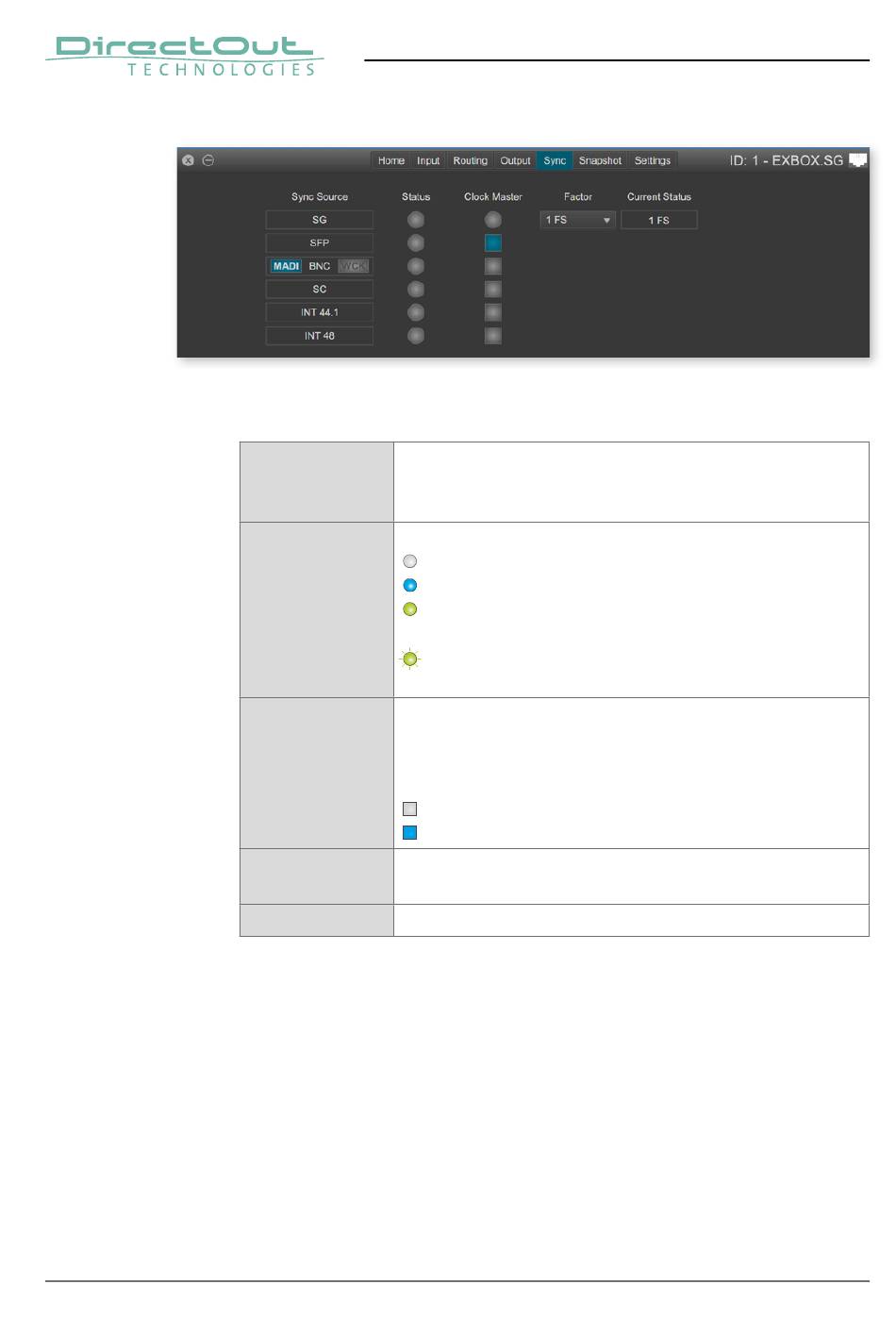

Tab 'Sync' to manage the clocking of the device depending from the clock setting
in the Soundgrid control panel - see "Soundgrid Clock Setting" on page 37 .
Sync Source Inputs that can be used for clocking (Soundgrid, MADI,
word clock) or the internal clock generator (INT).
See page 27 .
Status Display of lock / sync status of the sync source
Buttons to set the clock master
Clock Master
Click the square to set the sync source. The setting
becomes relevant when the 'SOURCE' in the Soundgrid
control panel is set to 'Digital' - see page 37 .
Factor* Menu to set the scaling factor (1 FS or 2 FS) in order
to match the MADI IO with sample rate.
Current Status Display of the current scaling factor.
* The set scaling factor can be overruled by the clock source - i.e. Soundgrid
sample rate setting or MADI input with 96k Frame. The LED 2 FS will blink
to indicate a mismatch - see "Sample Rate" on page 30. The detected scaling
factor is displayed at 'Current Status'.
(grey) = no signal lock
(blue) = signal lock, clock master
(green) = signal lock,
in sync with clock master
(blinking green) = signal lock,
not in sync with clock master
(grey) = not set as clock source
(blue) = set as clock source
