Input / Output - MADI

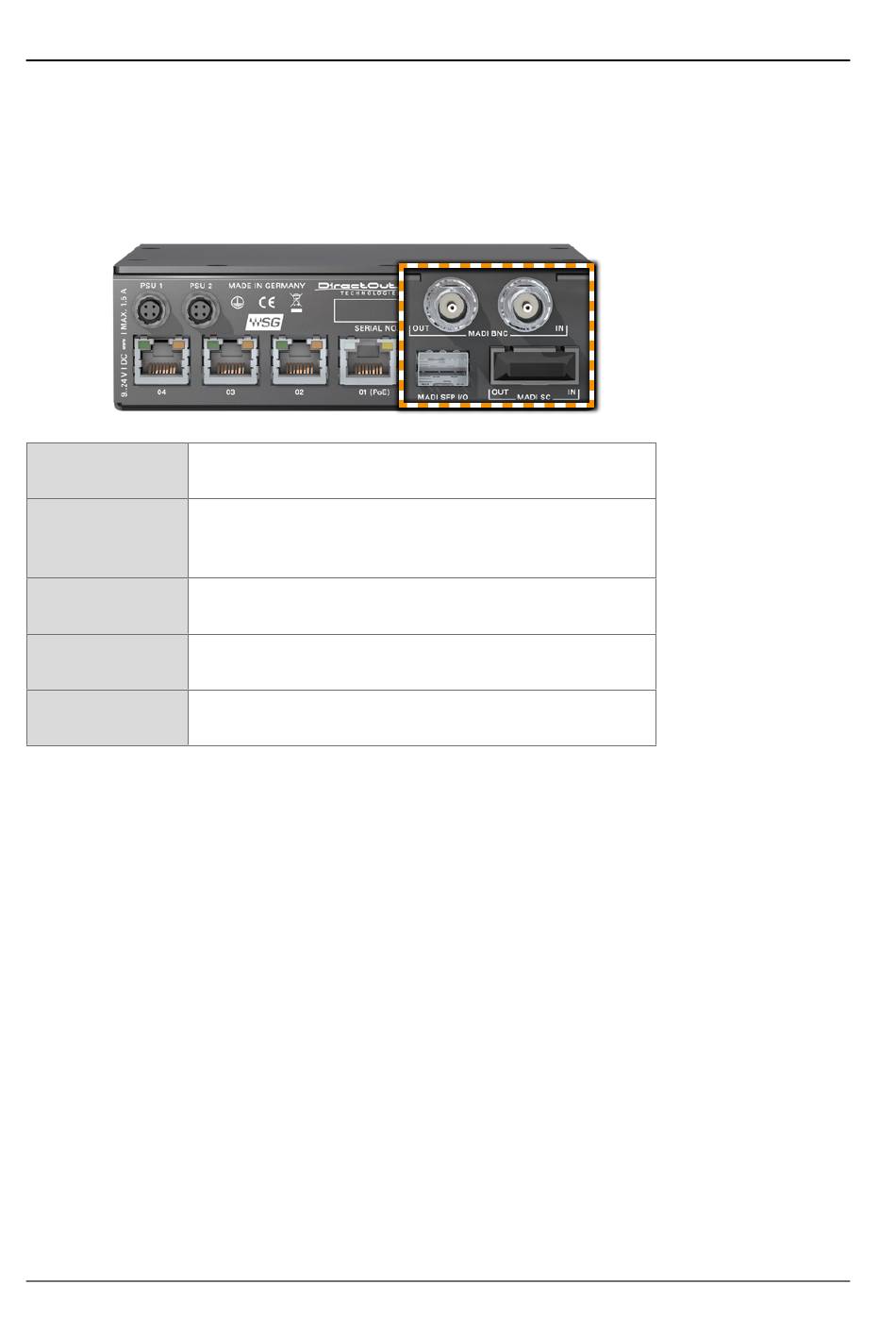

Three different MADI ports enable flexible connectivity in various scenarios. Due
to the device's routing capabilities format conversion between different MADI
formats is possible.
MADI BNC OUT
MADI BNC IN
MADI SC OUT
MADI SC IN
MADI SFP I/O
* The BNC input may be operated as word clock input (AES11) - see p 29.
EXBOX.SG Manual - Version 1.0
BNC socket
MADI output - connect here for MADI output signal.
BNC socket*
MADI or WCK input - connect MADI or word clock input
signal here.
SC socket
MADI output - connect here for MADI output signal.
SC socket
MADI input - connect MADI input signal here.
SFP socket
Insert SFP module here and connect MADI input/output.
