Global Control

NOTE
The device does not provide a power switch.
Connecting a working power supply to the device will
power up the device immediately.
WARNING
Never connect a PoE link to a network interface that
is not marked explictly for PoE operation. The voltage
supplied there may damage the interface.

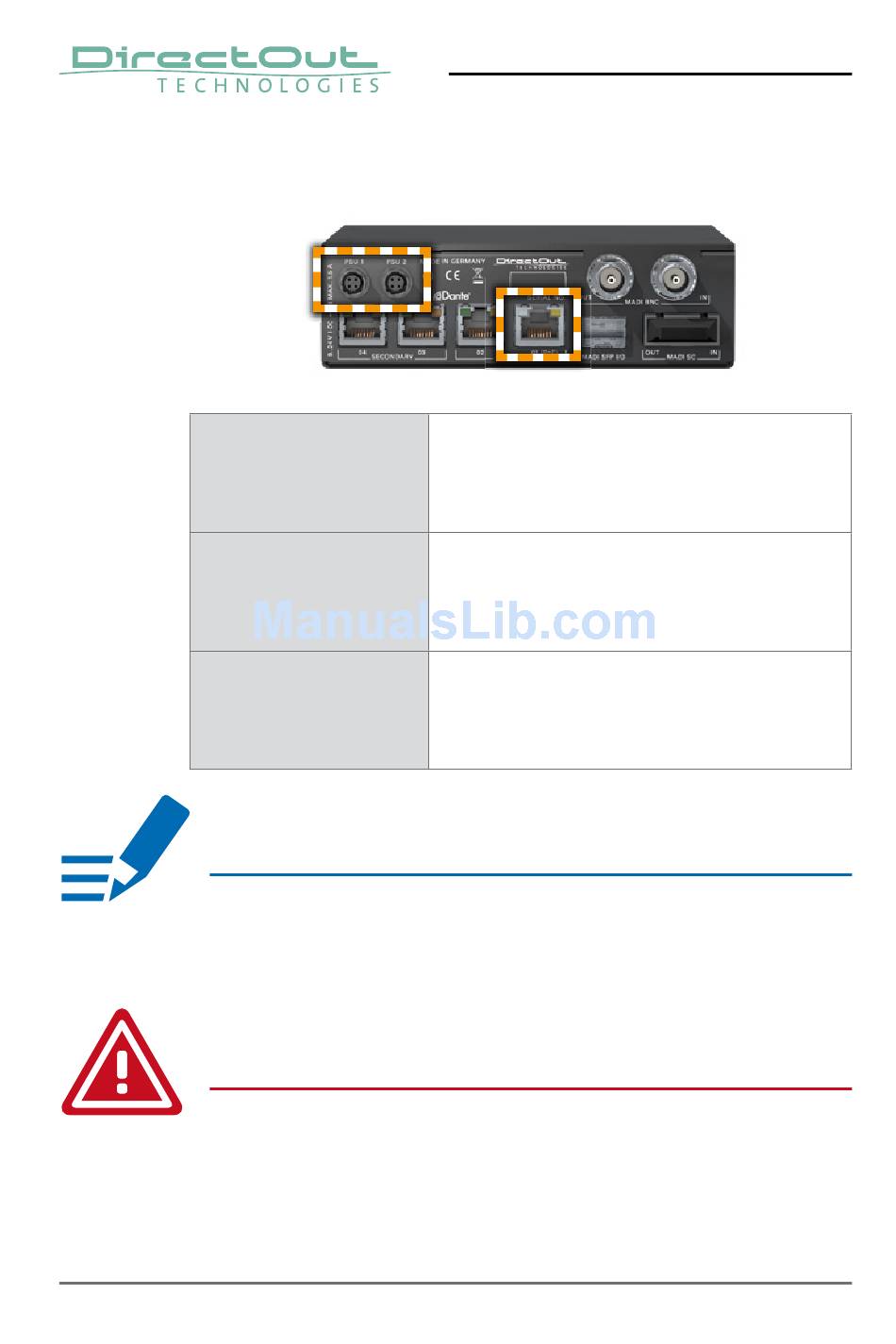

Hirose socket
Connect the power supply here
(9 - 24 V DC).
Hirose socket
Connect the power supply here
(9 - 24 V DC).
RJ45 socket
Connect PoE link here.
PoE Class 0 / 0.4 - 13 W
