Summary of Contents for DirectOut Technologies MADI.SRC

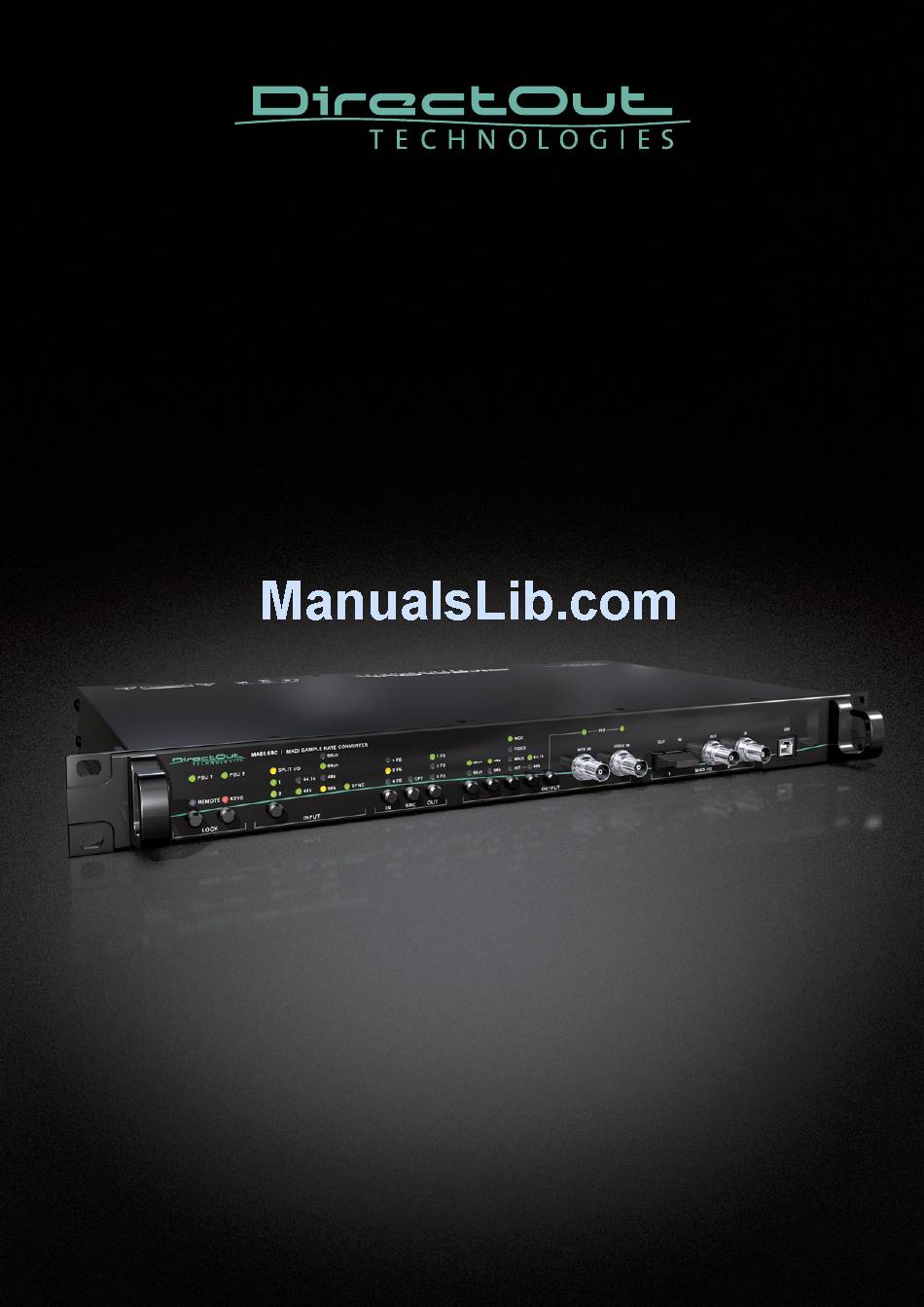

- Page 1 MADI.SRC User's Manual Version 2.0...
- Page 2 DirectOut GmbH cannot be held responsible for any misleading or incorrect information provided throughout this manual. DirectOut GmbH reserves the right to change specifications at any time without notice. DirectOut Technologies® is a registered trademark of the DirectOut GmbH. © DirectOut GmbH, 2017 page 2 of 44...
-
Page 3: Table Of Contents
Connecting Video / Word clock ..............27 Connecting MADI ..................28 Chapter 5: Operating Modes Introduction ....................29 Normal Mode ....................30 Split Mode ....................31 Auto Clock Range Select (ACRS) ..............32 Serial Data ....................33 MADI.SRC Manual - Version 2.0 page 3 of 44... - Page 4 CHAPTER 6: Troubleshooting and Maintenance Troubleshooting ................... 34 Maintenance ....................35 CHAPTER 7: Technical Data Appendix A: Clocking to MADI Index page 4 of 44 MADI.SRC Manual - Version 2.0...
-
Page 5: About This Manual
WAR NI N GS! alert you when an action should always be observed. This document relates to: • MADI.SRC (BNC / SC) • MADI.SRC (SC / SC) MADI.SRC Manual - Version 2.0 page 5 of 44... -
Page 6: Chapter 1: Overview Introduction
CHAPTER 1: Overview Introduction The MADI.SRC enables real time sample rate conversion of a complete MADI stream. It includes 32 high quality stereo sample rate converters, and supports all source and destination sample rates from 30 kHz to 50 kHz and their multiples, for all MADI formats (48k/96k Frame, 56/64 channels, S/MUX). -
Page 7: How It Works
The stream is processed in real time and all output channels are phase and sample accurate to each other. Further the MADI.SRC can be used as a decoupling device to connect two asynchronous systems without any loss of audio quality. -
Page 8: Chapter 2: Legal Issues & Facts
We would like to remind you to please check carefully whether the failure is caused by erroneous configuration, operation or connection before sending parts for repair. page 8 of 44 MADI.SRC Manual - Version 2.0... -
Page 9: First Aid (In Case Of Electric Shock)
Check their pulse and reanimate if their respiration is poor. Lay the body down and turn it to one side. Call for a doctor immediately. • Having sustained an electric shock, always consult a doctor. MADI.SRC Manual - Version 2.0 page 9 of 44... -
Page 10: Updates
This document refers to firmware version 2.5. Intended Operation The MADI.SRC is designed for conversion of format and sample rate of MADI signals (AES10). WARN ING ! No compensation can be claimed for damages caused by operation of this unit other than for the intended use described above. -
Page 11: Conformity & Certificates
09648 Mittweida Germany Only stamped parcels will be accepted! WEEE-Reg.-No. DE 64879540 Contact DirectOut GmbH Leipziger Str. 32, 09648 Mittweida, Germany Phone: +49 (0)3727 5665-100 Fax: +49 (0)3727 5665-101 Mail: sales@directout.eu www.directout.eu MADI.SRC Manual - Version 2.0 page 11 of 44... -
Page 12: Contents
CHAPTER 2: Legal issues & facts Contents The contents of your MADI.SRC package should include: • 1 x MADI.SRC (19’’, 1 RU) • 2 x power chord • 2 x fixing unit for power plug • 1 x User's Manual Two different MADI I/O confi... -
Page 13: Chapter 3: Installation
(Version BNC / SC) (Version SC / SC) N OT E Retain the protective cap if the optical port is unused. This will protect against soiling which can lead to malfunction. MADI.SRC Manual - Version 2.0 page 13 of 44... - Page 14 PSU 1 and PSU 2 to independent power supplies with separate fuses. Turn on the power switch and check the status of PSUs on the front panel: page 14 of 44 MADI.SRC Manual - Version 2.0...
- Page 15 Tool are necessary. The software and the installation instructions are available at www.directout.eu. TI P Keep any packaging in order to protect the device should it need to be dispatched for service. MADI.SRC Manual - Version 2.0 page 15 of 44...
- Page 16 CHAPTER 3: Installation This page is left blank intentionally. page 16 of 44 MADI.SRC Manual - Version 2.0...
-
Page 17: Chapter 4: Operation Introduction
• 44.1 kHz or 48 kHz = 1 FS • 88.2 kHz or 96 kHz = 2 FS • 176.4 kHz or 192 kHz = 4 FS MADI.SRC Manual - Version 2.0 page 17 of 44... -
Page 18: Global Control
Note that an unlit LED does not guarantee that the device is free of voltage. To ensure that the device is completely disconnected from mains voltage, the power chords must be disconnected. page 18 of 44 MADI.SRC Manual - Version 2.0... -
Page 19: Device Lock
Firmware Update The fi rmware can be updated via a USB connection. The software and the update instructions are available at www.directout.eu. USB socket (type B) Connect for fi rmware updates here. MADI.SRC Manual - Version 2.0 page 19 of 44... -
Page 20: Input Section
LED ON = Base sample rate 44.1 kHz INPUT LED (green): indicates the use of 48 kHz as base sample rate LED ON = Base sample rate 48 kHz * in split mode both input leds are lit page 20 of 44 MADI.SRC Manual - Version 2.0... - Page 21 At 2 FS operation 56 ch refers to 28 channels (64ch > 32 channels). At 4 FS operation 56 ch refers to 14 channels (64ch > 16 channels). 96k Frame is available at 2 FS operation only. MADI.SRC Manual - Version 2.0 page 21 of 44...
-
Page 22: Src Section
* The 96k Frame format defi nes a 2 FS signal. NOT E The sub code of a MADI signal does not transmit the scaling factor of the sample rate reliably, and therefore it must be selected manually. page 22 of 44 MADI.SRC Manual - Version 2.0... - Page 23 Check the sync status of the MADI input and clock reference using the SYNC LED - see „Input Section“ on page 20. The SRC processing delay amounts to about 2.5 ms. The delay is equal for every channel; there is no change in phase between channels. MADI.SRC Manual - Version 2.0 page 23 of 44...
-
Page 24: Output Section
At 2 FS operation 56 ch refers to 28 channels (64ch > 32 channels). At 4 FS operation 56 ch refers to 14 channels (64ch > 16 channels). 96k Frame is available at 2 FS operation only. page 24 of 44 MADI.SRC Manual - Version 2.0... - Page 25 Chapter 4: Operation Clock source The MADI.SRC offers a variety of clock references for the MADI output signal. Push button OUTPUT WCK / VIDEO / Press short to adjust the clock reference for the MADI output. MADI / INT OUTPUT...
-
Page 26: Sample Rate
LED (green): indicates the use of 48 kHz OUTPUT as base rate for MADI output LED ON = base rate is set to 48 kHz * see „Appendix A: Clocking to MADI“ on page 38. page 26 of 44 MADI.SRC Manual - Version 2.0... -
Page 27: Connecting Video / Word Clock
LED OFF = termination inactive LED ON termination active NOTE Termination can be set independently for both inputs. To ensure proper operation of the device, an appropriate termination status must be selected. MADI.SRC Manual - Version 2.0 page 27 of 44... -
Page 28: Connecting Madi
BNC socket (coaxial), 75 Ω or SC socket (optical) MADI input (64 ch), connect MADI input signal here NOT E SC Ports may be equipped with multi-mode or single-mode modules - see page 12. page 28 of 44 MADI.SRC Manual - Version 2.0... -
Page 29: Chapter 5: Operating Modes
Chapter 5: Operating Modes Introduction The MADI.SRC provides 32 stereo sample rate converters resulting in 64 audio channels available for sample rate conversion. As a MADI signal is limited in bandwidth to a maximum of 64 channels at 1 FS, the number of available channels is governed by the chosen scaling factor: •... -
Page 30: Normal Mode
Depending on the combination of input and output scaling factor not all input channels might be available at the target (output) sample rate. Example '1 FS to 4 FS': 64 channels @ 1 FS > 16 channels @ 4 FS page 30 of 44 MADI.SRC Manual - Version 2.0... -
Page 31: Split Mode
Channel mapping - if both inputs are available and input 2 is fed only, the mapping of the output channels remains unaffected. Example '2 FS to 1 FS': channels 01-32 are empty (input 1) and channels 33-64 active (input 2). MADI.SRC Manual - Version 2.0 page 31 of 44... -
Page 32: Auto Clock Range Select (Acrs)
Normally, the scaling factor of the base sample rate is defi ned manually for input and output from the SRC controls. However, the MADI.SRC offers an option to switch the output scaling factor automatically – Auto Clock Range Select (ACRS). -
Page 33: Serial Data
MADI output signal. So the conversion process is bypassed for the serial data. N OT E 'MIDI over MADI' (user bit of channel 56) is not supported by the (de-)embedder. MADI.SRC Manual - Version 2.0 page 33 of 44... -
Page 34: Troubleshooting
LED SYNC is Input signal is not Check the input signal source blinking in sync with the selected clock change the clock reference reference. activate SRC. page 34 of 44 MADI.SRC Manual - Version 2.0... -
Page 35: Maintenance
To clean the device, use a soft, dry cloth. To protect the surface, avoid using cleaning agents. N OT E The device should be disconnected from the power supply during the cleaning process. MADI.SRC Manual - Version 2.0 page 35 of 44... -
Page 36: Chapter 7: Technical Data
• Word clock or AES3id (DARS) Video • 1 x BNC socket (input) • Impedance 75 Ω (termination switchable) • Black Burst or FBAS (PAL 25 Hz, NTSC 29.97 Hz or 30 Hz) page 36 of 44 MADI.SRC Manual - Version 2.0... -
Page 37: Chapter 7: Technical Data
• 56 channel, 64 channel • S/MUX 2/4 SRC Performance • THD+N 140 dB • Frequency response ripple < 0.025 dB • Latency < 140 samples • 1 x USB 2.0 socket (type B) MADI.SRC Manual - Version 2.0 page 37 of 44... -
Page 38: Appendix A: Clocking To Madi
Clocking to MADI input is useful when the clock should be maintained while the scaling factor changes; e.g. down sampling from 2 FS to 1 FS. page 38 of 44 MADI.SRC Manual - Version 2.0... -
Page 39: Appendix A: Clocking To Madi
This is useful to retrieve sync from the device receiving the SRC signal. N OT E Don’t worry about the tables - they are quite similar and differ only in the MADI OUT section. MADI.SRC Manual - Version 2.0 page 39 of 44... -
Page 40: Index
WEEE see Conformity & Certificates First Aid ............. 9 Word clock ..........27 Frame format ........... 21 Fuses ............36 Input selection ......... 20 Intended Operation ........10 MIDI over MADI ........33 page 40 of 44 MADI.SRC Manual - Version 2.0... - Page 41 Notes MADI.SRC Manual - Version 2.0 page 41 of 44...
- Page 42 Notes page 42 of 44 MADI.SRC Manual - Version 2.0...
- Page 43 Notes MADI.SRC Manual - Version 2.0 page 43 of 44...
- Page 44 DirectOut GmbH Leipziger Strasse 32 T: +49-3727-5665-100 09648 Mittweida F: +49-3727-5665-101 Germany www.directout.eu...
