5.3.5.2 Function
DS3 adapter Card provides 5 BNC ports, which are ASI_OUT, ASI_IN, DS3_OUT1,
DS3_OUT2 and DS3_IN from left to right. DS3 adapter supports two-way adapted output
of ASI and DS3.
5.3.5.2.1 Input setting
ASI input setting
When the ASI input is used, the input source shall be connected for the DS3 adapter
Card ASI-IN.
1
Step 1: click the "ASI In" in the "DS3 adapter Card" of Web network management to
log in the ASI input port to set the page;
Step 2: click the "Config" on the page to log in the setting page;
Step 3: choose "Input" switch to be "On" and set the "Appointed PID" value to be
monitored;
«ТВБизнес» - официальный дистрибьютор

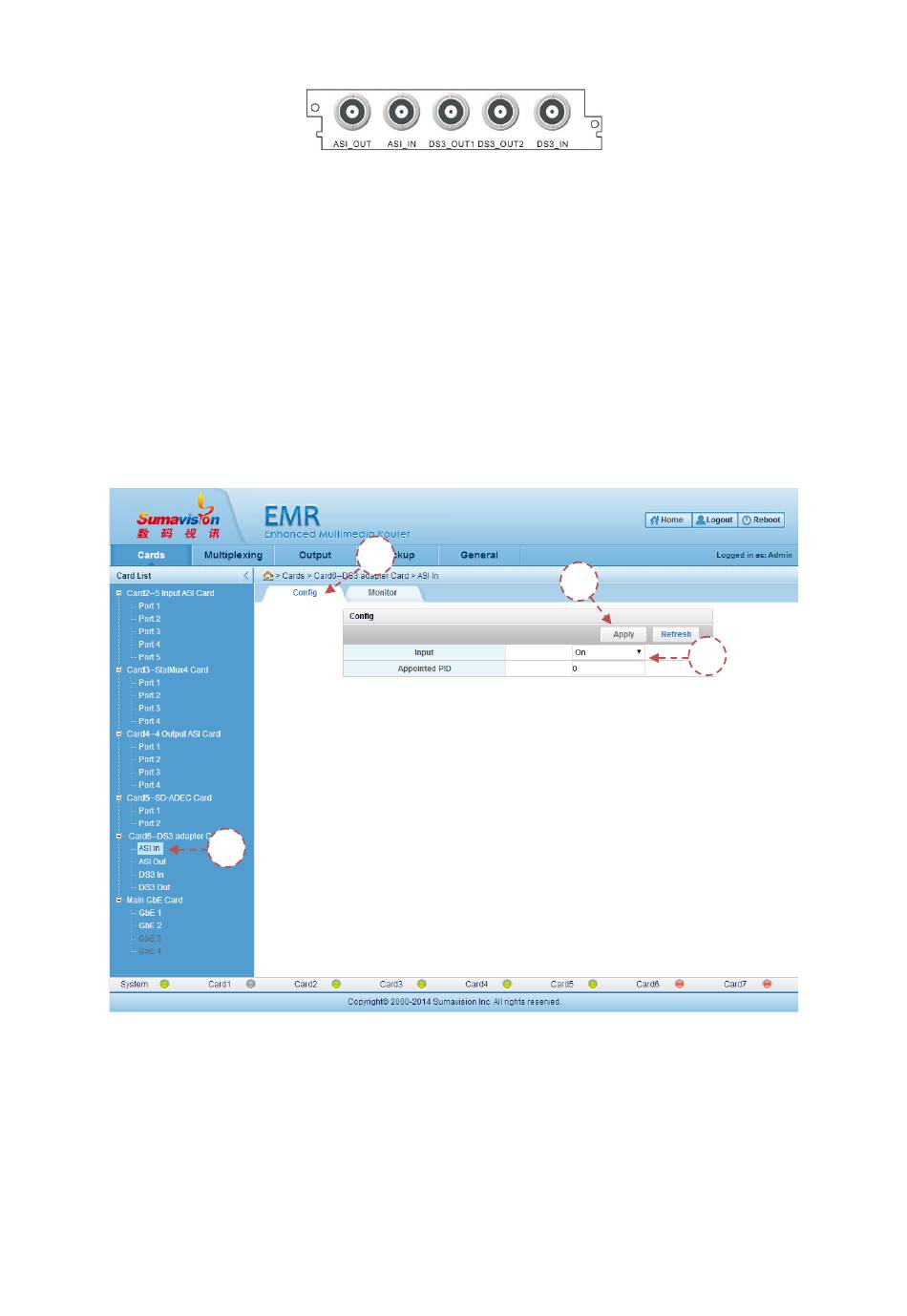

Fig. 5-45 DS3 adapter Card
2
Fig. 5-46
DS3 Adapter Card ASI Input Parameter Setting
