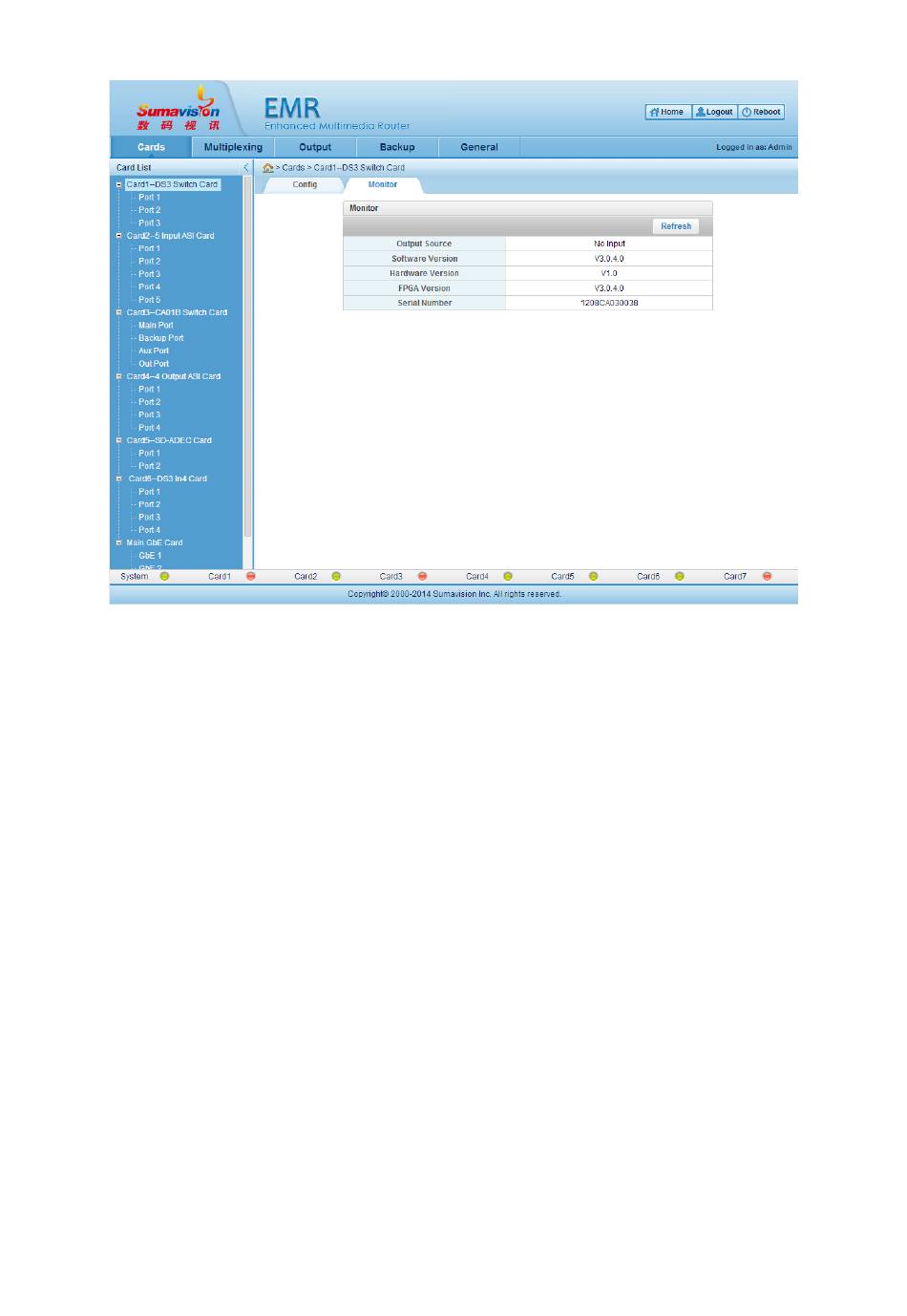

Fig. 5-131 DS3 Switch Card Monitor
5.3.24.2.2 Port setting
The PID upper and lower limit, the minimum code rate and other receiving
parameters can be set on the input port interface of the DS3 Switch Card. When the
normal reception is made on the input end, it shall judge the code rate value within the PID
range. If the code rate is less than the minim code rate setting, it is believed that the port is
abnormal and the switch shall be made. The manual mode is not affected by such switch.
The stream received by the input port of the user shall be outputted.
