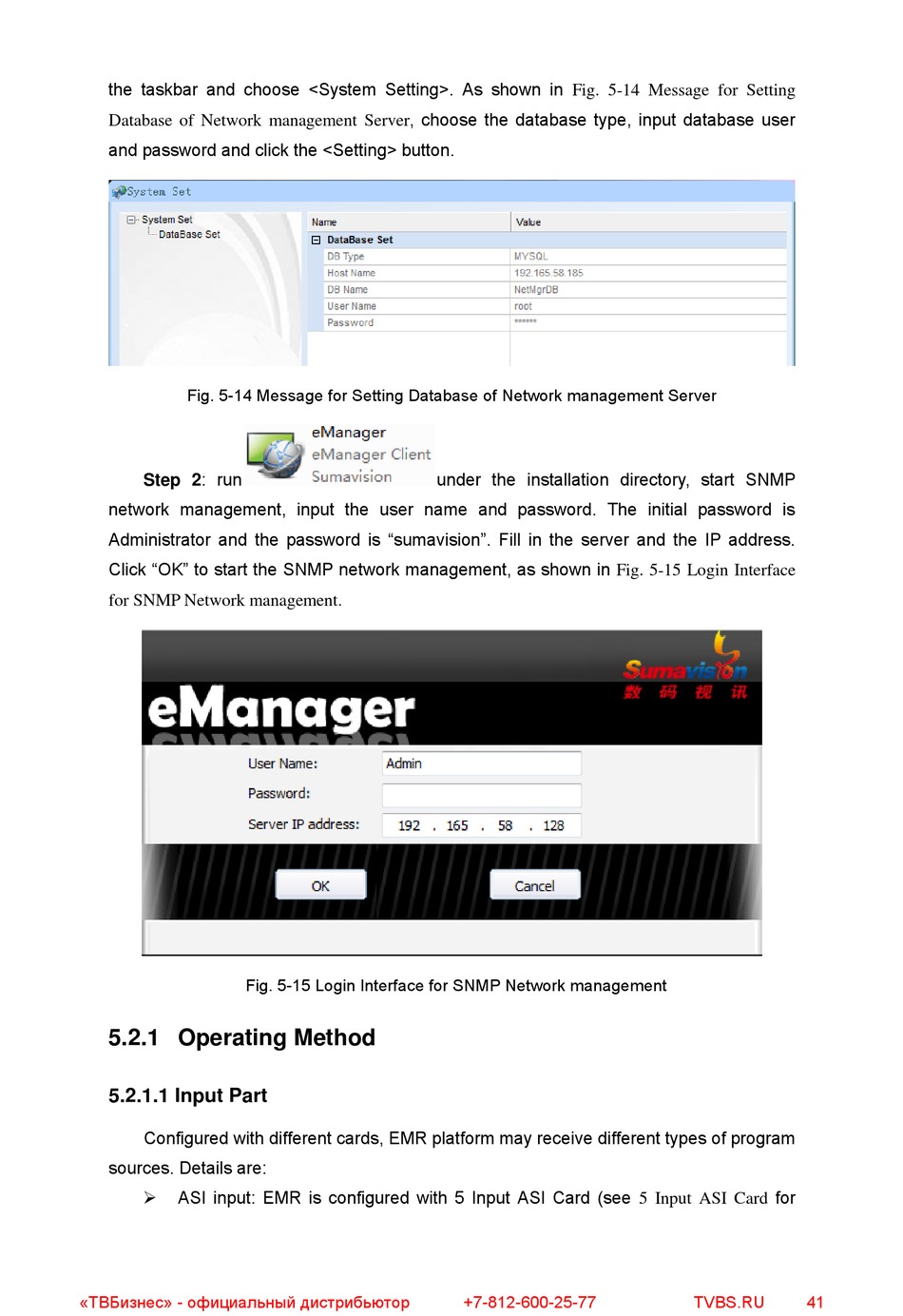

Operating Method - Sumavision EMR3.0 Operating Instructions Manual

the taskbar and choose <System Setting>. As shown in Fig. 5-14 Message for Setting
Database of Network management Server, choose the database type, input database user
and password and click the <Setting> button.
Fig. 5-14 Message for Setting Database of Network management Server
Step 2: run
network management, input the user name and password. The initial password is
Administrator and the password is "sumavision". Fill in the server and the IP address.
Click "OK" to start the SNMP network management, as shown in Fig. 5-15 Login Interface
for SNMP Network management.
Fig. 5-15 Login Interface for SNMP Network management

5.2.1 Operating Method

5.2.1.1 Input Part
Configured with different cards, EMR platform may receive different types of program
sources. Details are:
ASI input: EMR is configured with 5 Input ASI Card (see 5 Input ASI Card for

«ТВБизнес» - официальный дистрибьютор
under the installation directory, start SNMP
+7-812-600-25-77 TVBS.RU 41
