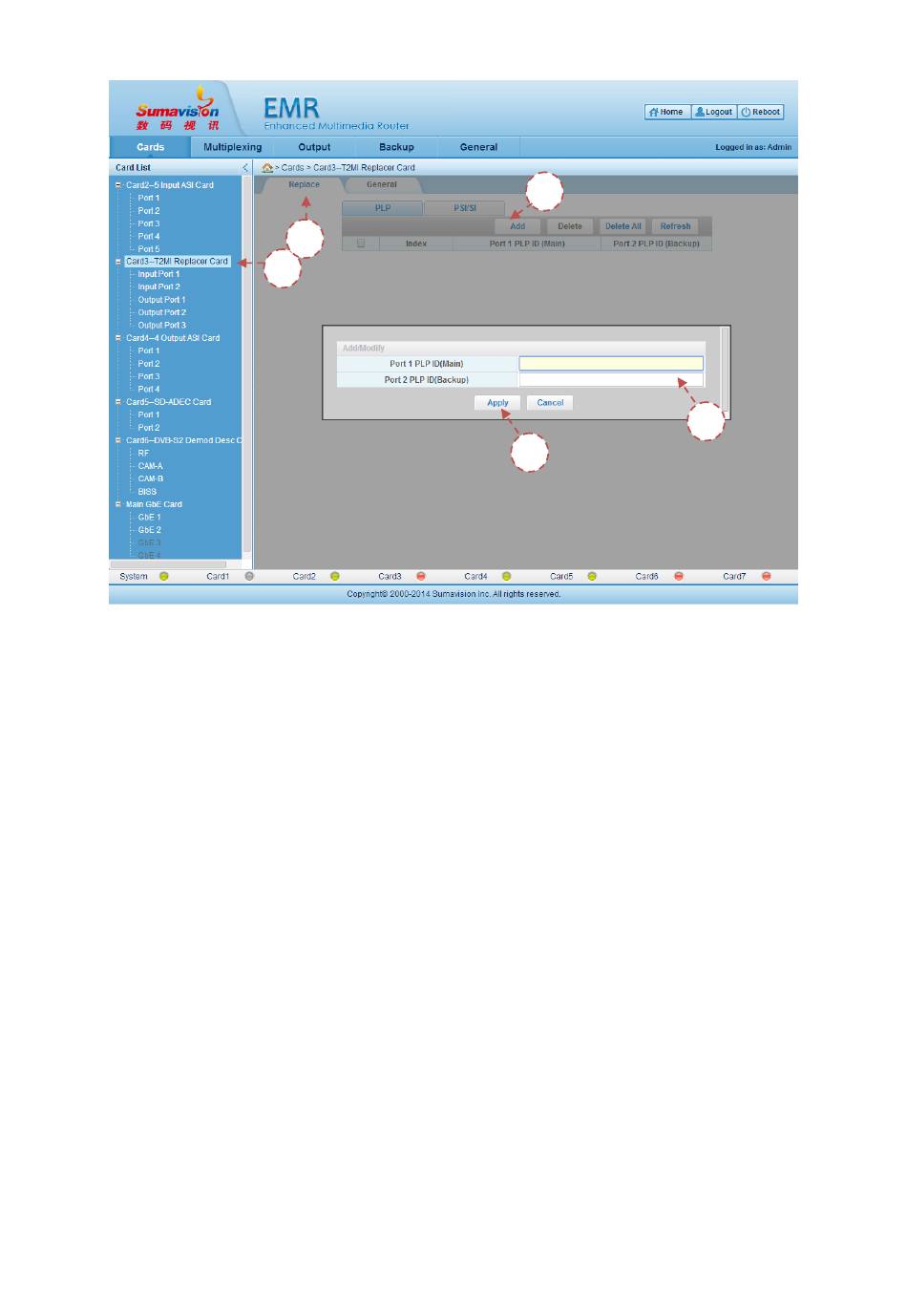

Fig. 5-144 T2MI Replacer Card PLP Replacement Setting
Step 1: click the "Card n-T2MI Replacer Card" on the web network management
board card list;
Step 2: click the "Replace" on the right page;
Step 3: click "Add" on the page;
Step 4: fill the PLP ID of the main and backup route to be replaced in the pop-up
page;
Step 5: click the "Apply" at the bottom of the page to put the setting into effect after
the setting;
5.3.26.2.4 Output setting
The T2MI Replacer Card is provided with three ASI output interfaces. The card
supports the direct output of the replaced T2MI code stream and source code stream and
supports the transparent transmission and output from other output cards (as the 4 Output
ASI card and etc.).
Two output configuration methods are illustrated below:
I. Output of this card
The T2MI Replacer Card has three ASI output ports. The ASI-OUT1 is used for
