Step 4: Click "Input Port n" of WEB network management to navigate to input port
page;
Step 5: Click "Config" to navigate to setting page;
Step 6: Set the "Input" switch and "Alarm" switch of the input port according to the
demand;
Step 7: Click "Apply" to validate the parameter;
Connect the switched-on input port into corresponding ASI input source and then the
concentrator can output normally.
5.3.4.2.3 Type of Deconcentrator
When it is used as the Deconcentrator, Port 1~4 are for the 4-channel output and Port
5 is for the input of the Deconcentrator.
«ТВБизнес» - официальный дистрибьютор
5

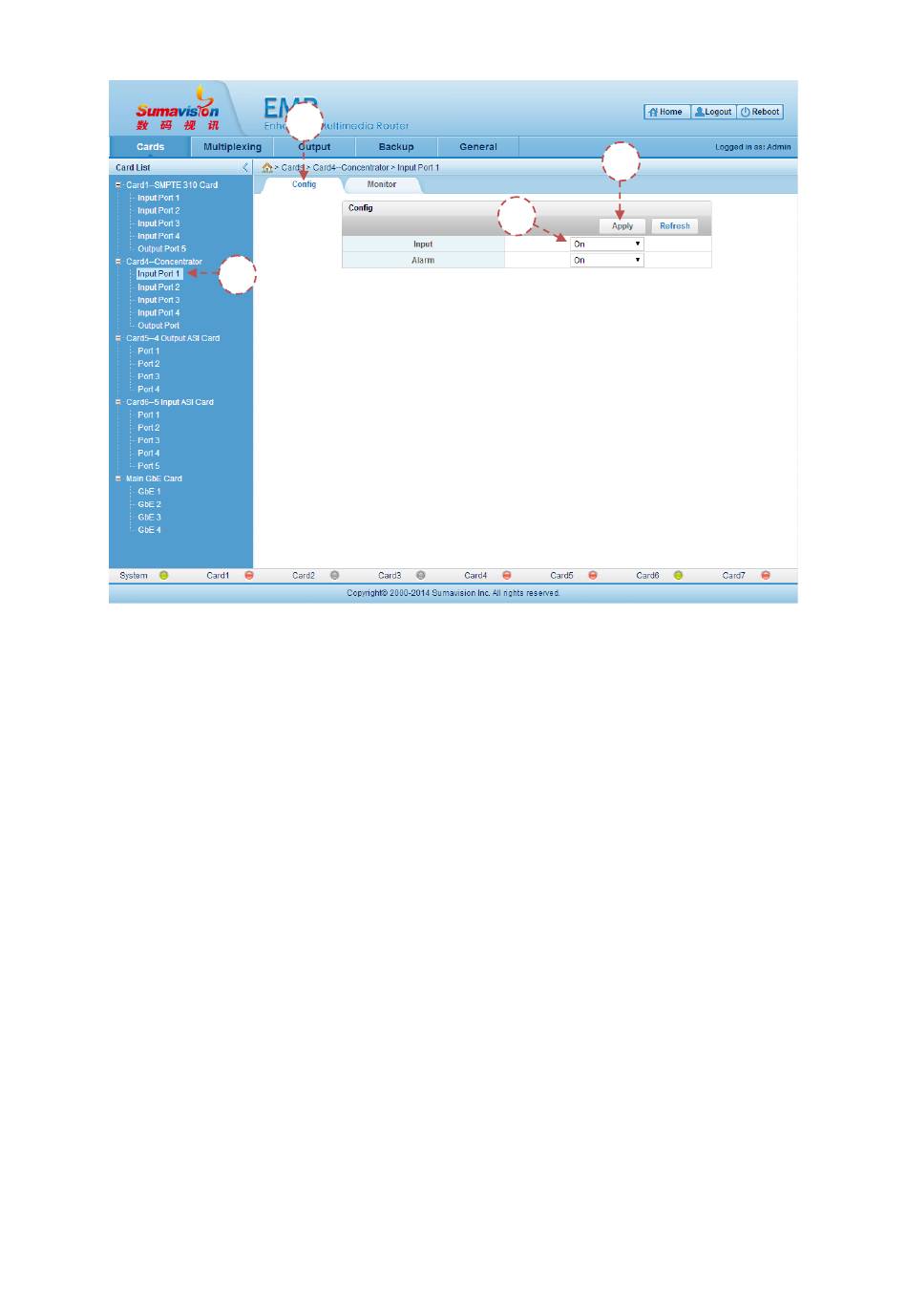

Fig. 5-41 ASI 5InOut Card Concentrator Input Settings
