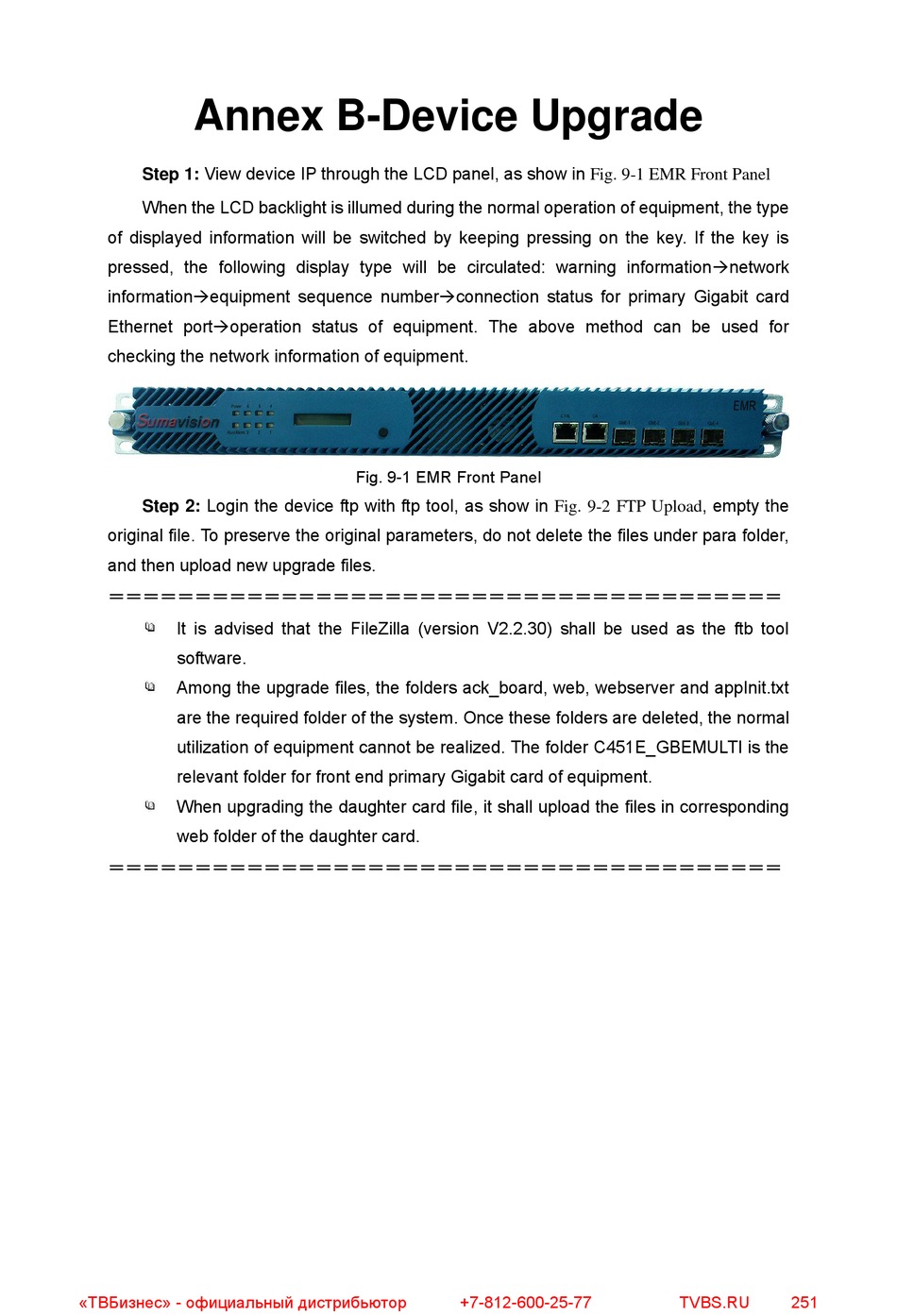

Annex B-Device Upgrade

Step 1: View device IP through the LCD panel, as show in Fig. 9-1 EMR Front Panel
When the LCD backlight is illumed during the normal operation of equipment, the type
of displayed information will be switched by keeping pressing on the key. If the key is
pressed, the following display type will be circulated: warning informationnetwork
informationequipment sequence numberconnection status for primary Gigabit card
Ethernet portoperation status of equipment. The above method can be used for
checking the network information of equipment.
Step 2: Login the device ftp with ftp tool, as show in Fig. 9-2 FTP Upload, empty the
original file. To preserve the original parameters, do not delete the files under para folder,
and then upload new upgrade files.
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
It is advised that the FileZilla (version V2.2.30) shall be used as the ftb tool
software.
Among the upgrade files, the folders ack_board, web, webserver and appInit.txt
are the required folder of the system. Once these folders are deleted, the normal
utilization of equipment cannot be realized. The folder C451E_GBEMULTI is the
relevant folder for front end primary Gigabit card of equipment.
When upgrading the daughter card file, it shall upload the files in corresponding
web folder of the daughter card.
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
«ТВБизнес» - официальный дистрибьютор
Fig. 9-1 EMR Front Panel
