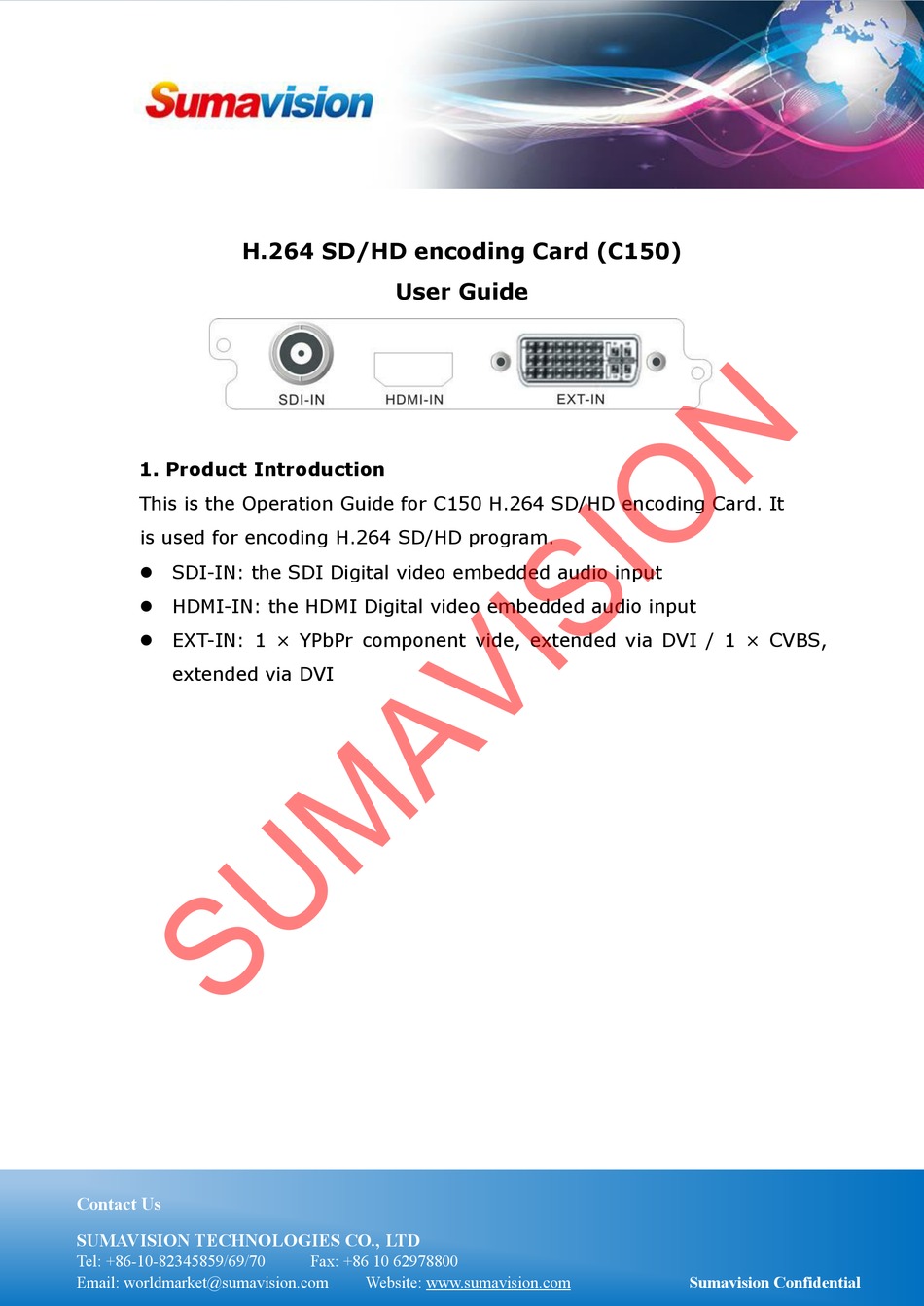

Sumavision C150 User Manual

1. Product Introduction

This is the Operation Guide for C150 H.264 SD/HD encoding Card. It
is used for encoding H.264 SD/HD program.
 SDI-IN: the SDI Digital video embedded audio input
 HDMI-IN: the HDMI Digital video embedded audio input
 EXT-IN: 1 × YPbPr component vide, extended via DVI / 1 × CVBS,
extended via DVI
