Controls (G2 only)

Use the following rules to operate the NetGuardian's control:
1. Select Controls from the Monitor menu.
2. Under the State field, you can see the current condition of the control.
3. To issue the control, click on a command (OPR - operate, RLS - release, or MOM - momentary)
By default, Relay 1 is latched by a major battery alarm, and Relay 2 is latched by a minor battery alarm. Manually
operating the control will override the current alarm state, but only until the alarm state changes again.
Note: If a relay is already latched when a new battery alarm for that relay is triggered, the relay will indicate this by
momentarily (MOM) releasing the relay, before latching again. Similarly, if multiple major or minor alarms are
triggered, and one of them clears, the relay corresponding to that alarm will MOM release before latching again.
ID
Description
State
Command

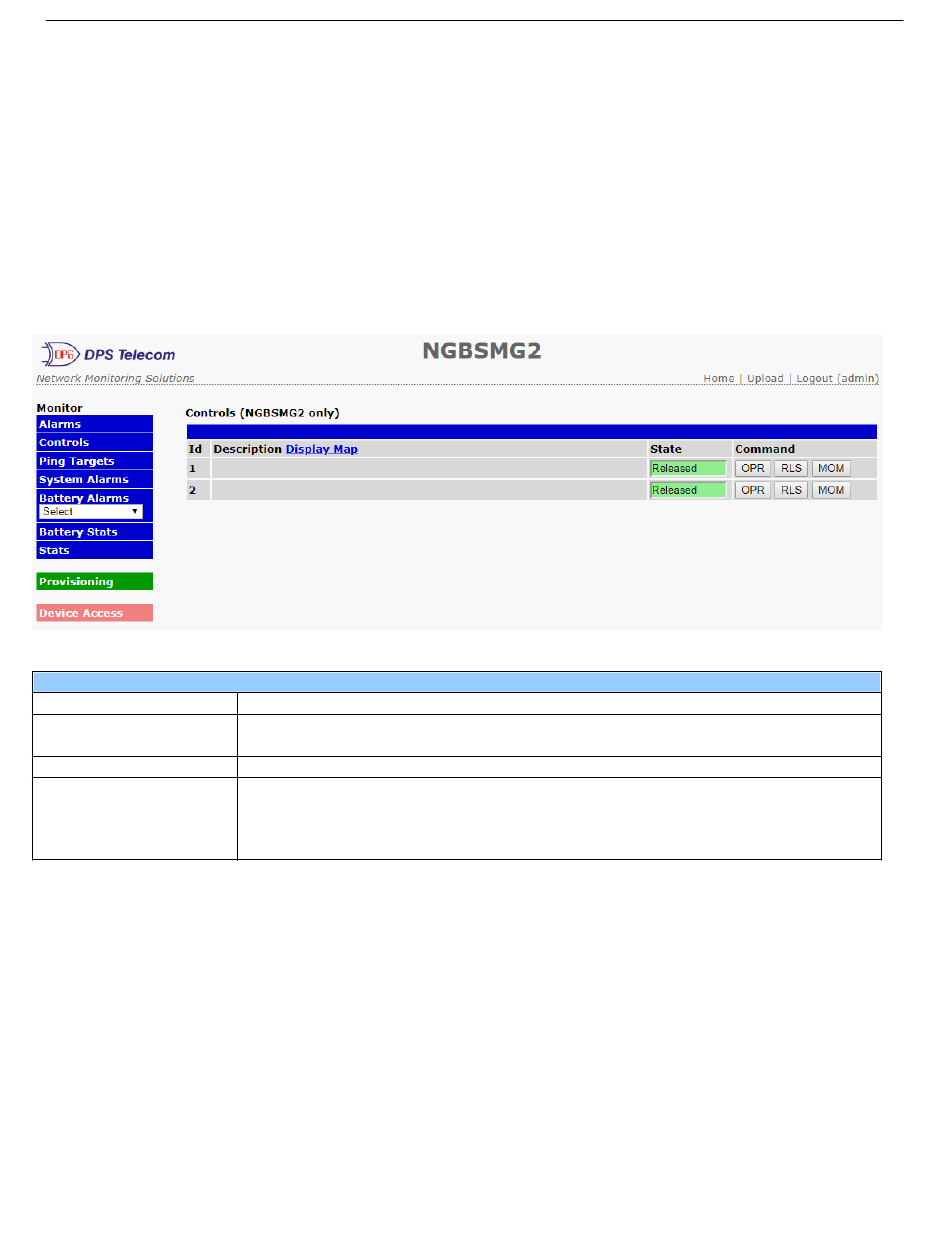

View and operate control relays from the Monitor > Controls menu
Control Relay Operation
ID number for the control relay.
Description for the NetGuardian BSM G2's control relay defined in the Provisioning >
Controls menu.
Status of the control relay. Can either be Released or Latched.
OPR - Latch the relay.
RLS - Release the relay.
MOM - Momentarily latch the relay, then automatically release the relay. The
duration of the latch is defined in the Provisioning > Controls menu.
