4.10 PnP/PCI Configuration Setup

This section describes the configuration of PCI (Personal Computer

Interconnect) bus system, which allows I/O devices to operate at

speeds close to the CPU speed while communicating with other

important components. This section covers very technical items that

only experienced users could change default settings.

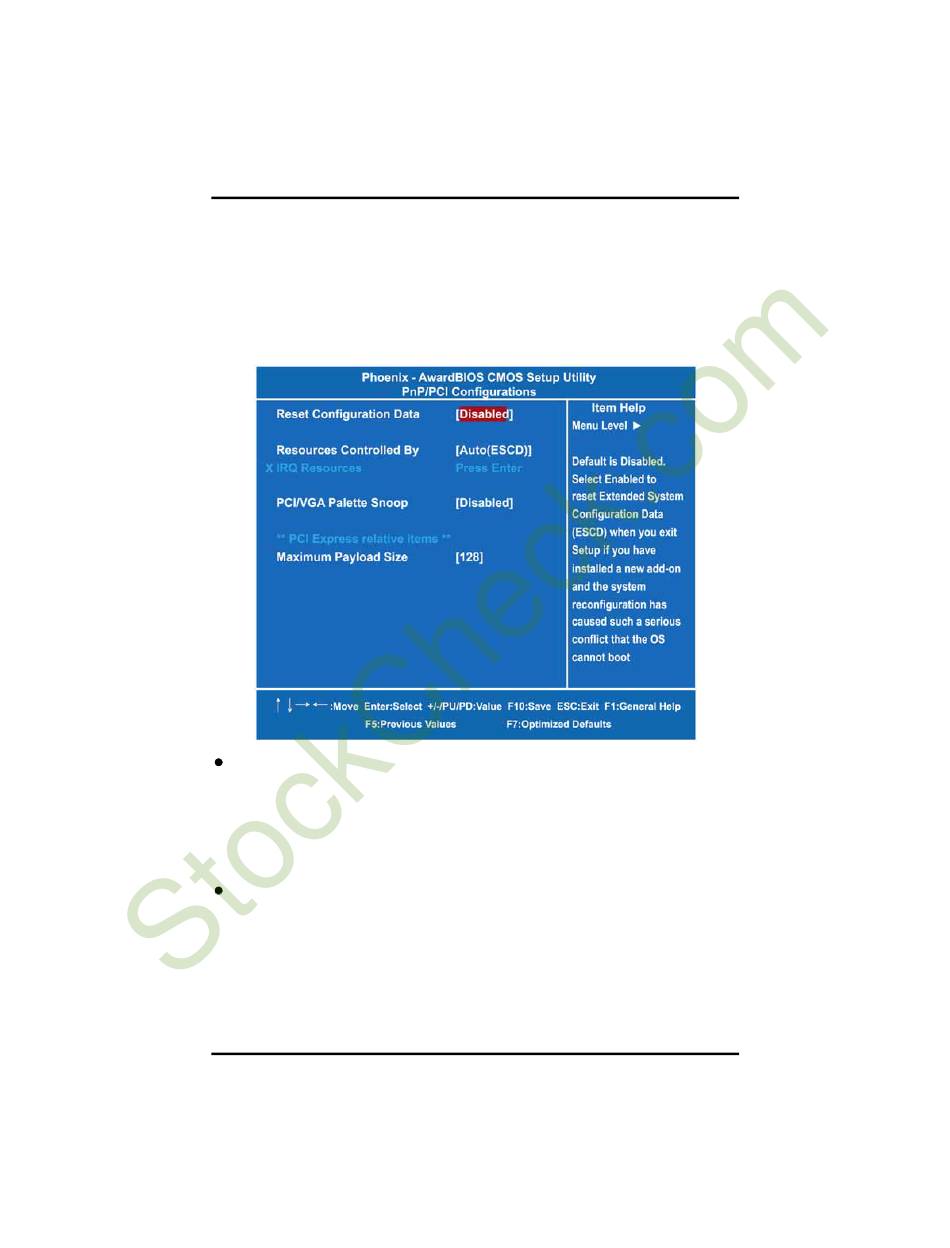

Award BIOS Utility

Downloaded from StockCheck.com

SBC86840 Series All-In-One Mini ITX Board User's Manual

Reset Configuration Data

Normally, you leave this item Disabled. Select Enabled to reset

Extended System Configuration Data (ESCD) when you exit Setup

or if installing a new add-on cause the system reconfiguration a

serious conflict that the operating system can not boot. Options:

Enabled, Disabled.

Resources Controlled By

The Award Plug and Play BIOS can automatically configure all

boot and Plug and Play-compatible devices. If you select Auto, all

interrupt request (IRQ), DMA assignment, and Used DMA fields

disappear, as the BIOS automatically assigns them. The default

value is "Manual".
