2.4.7 USB*2 + IEEE1394 Connectors: CN9, CN13

The board supports two three-layer USB & IEEE1394a connectors,
CN9 and CN13.
The upper CN9A and CN13A ports are for IEEE1394a, compliant with
the Serial Interface Standard set by the Institute of Electrical and
Electronics Engineers, which feature high speed, high bandwidth and
hot plug that can connect with IEEEa1394 devices and peripherals.
The lower double-deck CN9B and CN13B are USB 2.0 ports compliant
(480Mbps) that can be connected to any USB peripherals, such as
keyboard, mouse, scanner.
Jumpers and Connectors
Downloaded from StockCheck.com
SBC86840 Series All-In-One Mini ITX Board User's Manual

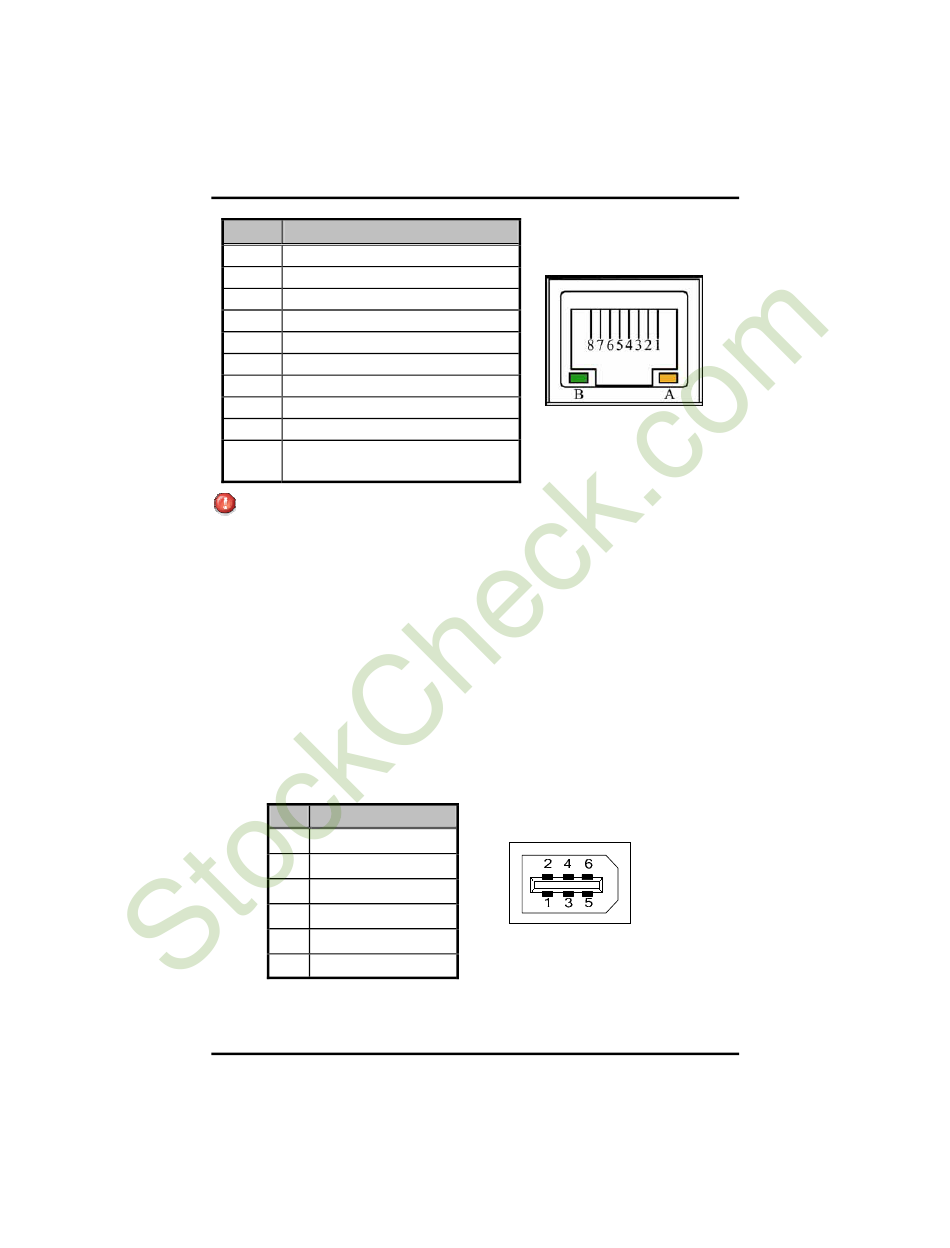

Description
MDI0+
1
2 MDI0-
MDI1+
3
MDI1-
4
5 MDI2+
6 MDI2-
MDI3+
7
MDI3-
8
A Active LED (Yellow)
1000 (Orange) / 100 (Green) LAN
B
LED
Please restart your system after installing the LAN driver.
Pin Description
1
+12V
2
GND
3
XTPB0N
4
XTPB0P
5
XTPA0N
6 XTPA0P
CN8_B
LAN2(Intel 82573V)
CN9A
25
